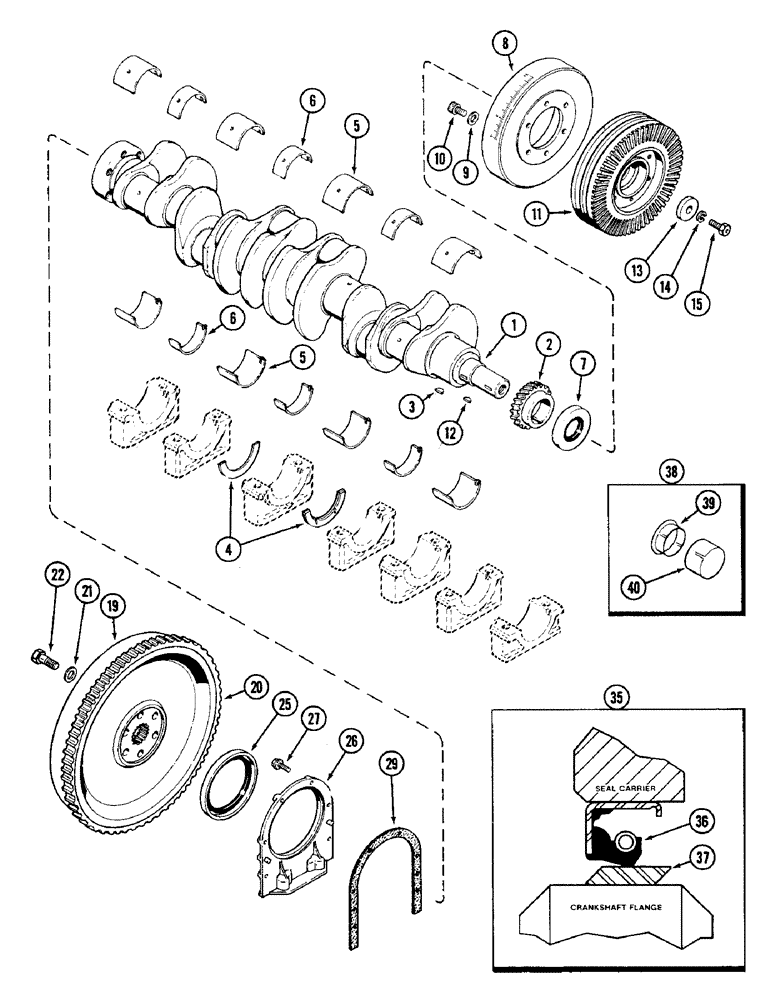

Запчасти Case IH 4690 (2-040) - CRANKSHAFT AND FLYWHEEL, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A77270

CRANKSHAFT

ASSEMBLY - engine, Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- front

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

4

A58565

WASHER

- thrust, standard 0.156" (3.96 MM)

2шт.

4

A42447

WASHER

- thrust, oversize 0.162" (4.11 MM)

2шт.

5

A43090

BEARING LINER

LINER - main bearing, wide, standard (Set of 2)

2шт.

5

A43124

LINING

LINER - main bearing, wide, -0.002" (-0.05 MM) (Set of 2)

2шт.

5

A43125

CRANKSHAFT BEARING

LINER - main bearing, wide, -0.010" (-0.25 MM) (Set of 2)

2шт.

5

A43126

LINING

LINER - main bearing, wide, -0.020" (-0.51 MM) (Set of 2)

2шт.

5

A43127

LINING

LINER - main bearing, wide, -0.030" (-0.76 MM) (Set of 2)

2шт.

6

A43089

BEARING LINER

LINER - main bearing, narrow, standard (Set of 2)

3шт.

6

A43120

LINING

LINER - main bearing, narrow, -0.002" (-0.05 MM) (Set of 2)

3шт.

6

A43121

SET OF CONN ROD BRGS STD

LINER - main bearing, narrow, -0.010" (-0.25 MM) (Set of 2)

3шт.

6

A43122

LINING

LINER - main bearing, narrow, -0.020" (-0.51 MM) (Set of 2)

3шт.

6

A43123

SET OF CONN ROD BRGS STD

LINER - main bearing, narrow, -0.030" (-0.76 MM) (Set of 2)

3шт.

7

A62049

OIL SEAL

- oil, front, 2-5/8" x 3-5/8" x 1/2" (76.68 x 92.8 x 12.7 MM)

1шт.

8

A76658

DAMPER

- pulley

1шт.

9

L30674

WASHER

- 17/32" x 1-1/16" x 7/64" (13.49 x 26.99 x 2.78 MM)

6шт.

10

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

SCREW - 1/2" x 1-1/2" NC 12 point

6шт.

11

A76657

CRANKSHAFT

PULLEY - crankshaft, belt drive

1шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

1шт.

13

A156428

WASHER

- 21/32" ID x 2-1/8" OD x 23/64" (16.67 x 53.97 x 9.13 MM) (Replaces A27903)

1шт.

14

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

15

114-613

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

SCREW - pulley (5/8" x 1-1/2" NF hex head) (Replaces A28028)

1шт.

19

A153946

FLYWHEEL

ASSEMBLY - splined, Includes: Ref. 20

1шт.

20

A27920

GEAR

- ring (137 teeth)

1шт.

21

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - 21/32" x 1" x 1/8" (16.27 x 25.4 x 3.17 MM)

6шт.

22

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- 5/8" x 1-3/4" NF hex

6шт.

25

A62050

OIL SEAL

- oil, rear, 4-3/8" x 5-3/8" x 1/2" (120.65 x 146.05 x 12.7 MM) (See ref. 35)

1шт.

26

A57457

RETAINER

- rear oil seal

1шт.

27

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - 3/8" x 1-1/4" NC hex Sems (Replaces 13-620 and 92-6)

6шт.

29

A32830

GASKET

- retainer

1шт.

35

A43194

KIT

- wear, rear oil seal, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

38

A154684

SLEEVE

WEAR SLEEVE KIT - crankshaft pulley, Includes: Ref. 39 and 40

1шт.

39

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

40

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
