Запчасти Case IH 4690 (2-038) - CYLINDER BLOCK, 504BDTI DIESEL ENGINE (02) - ENGINE

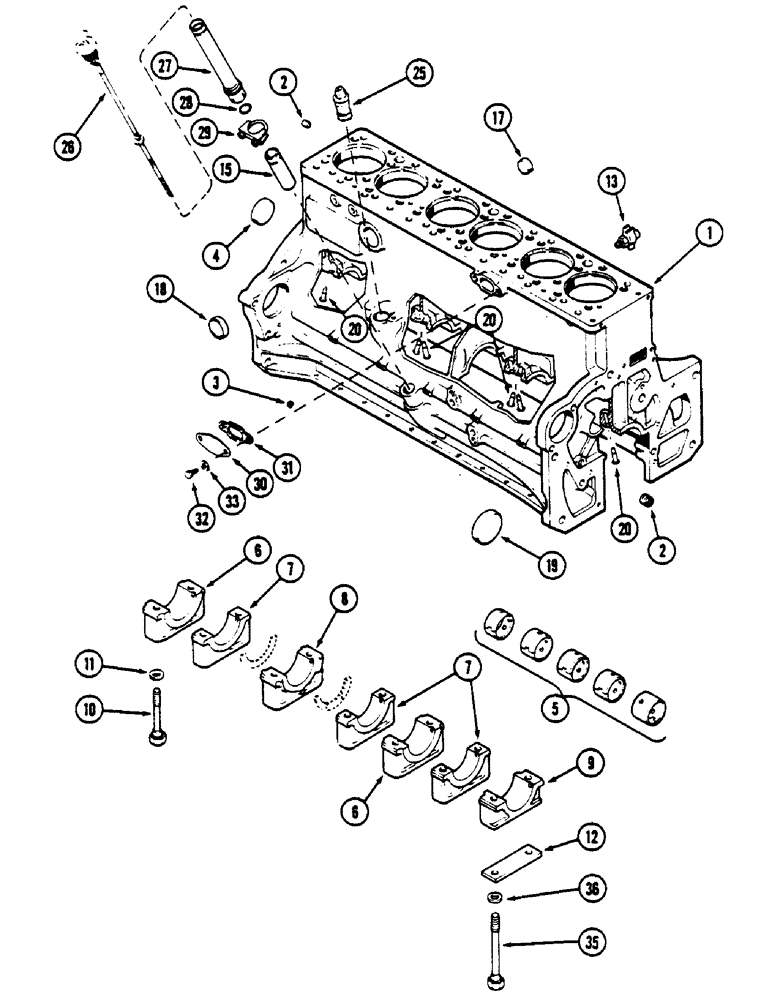

Схема запчастей Case IH 4690 - (2-038) - CYLINDER BLOCK, 504BDTI DIESEL ENGINE (02) - ENGINE
7
6
3
30
15
20
2
35
13
25
4
28
26
8
1
5
12
17
11
36
31
20
32
20
6
10
19
9
2
33
29
27
7
18

Артикул

Название

Примечание

Количество

A44090

CRANKCASE

BLOCK ASSY - short (Incl. stripped block, piston assy, connecting rods and bearings, crankshaft and bearings, camshaft, timing gears and lifters) (Casting no. A66527), Incl. Ref. 1 - 20

1шт.

AR77829

REMAN-BASIC ENGINE

Remanufactured

1шт.

AC77829

CORE-BASIC ENGINE

Return Number, Engine Basic

1шт.

1

A44077

CRANKCASE

BLOCK ASSY - stripped, Incl. Ref. 1 - 20

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

4шт.

3

221-1849

PLUG

1/8" PT socket head

1шт.

4

A24361

PLUG

2-3/8" cup type (60.32 mm)

1шт.

5

REF

INSTRUCTION

BUSHING - camshaft (See Figure 2-036)

5шт.

6

A154398

BEARING CAP

Wide crankshaft bearing (Replaces A58562)

2шт.

7

A154397

BEARING CAP

Narrow crankshaft bearing (Replaces 585563)

3шт.

8

A154395

CAP

Thrust, crankshaft bearing (Replaces A58564)

1шт.

9

A154396

BEARING CAP

Front crankshaft bearing (Replaces A63902)

1шт.

10

A66948

STEP BOLT

Bearing cap, 5/8" x 5" NC hex

12шт.

11

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

21/32" x 1" x 1/8" (16.67 x 25.4 x 3.17 mm)

12шт.

12

A58859

SHIM,.005" Thk

Oil pump

1шт.

13

A23656

COCK, DRAIN

VALVE - drain

1шт.

15

A34540

TUBE

Oil filler and dipstick

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

(34.92 mm)

3шт.

18

A58569

PLUG,Cup, 2", Stainless

(50.8 mm)

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

(82.55 mm)

1шт.

20

A63903

NOZZLE CAP

Piston cooling

6шт.

25

A67178

DRIVE

ASSY - tachometer

1шт.

26

A154243

DIPSTICK

Oil level

1шт.

27

A153835

TUBE

Extension, oil filler and dipstick

1шт.

28

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

(28.57 ID x 3.17 mm width)

1шт.

29

L47766

CLAMP

Tube

1шт.

30

A58851

PLATE

Oil cooler opening cover

1шт.

31

A58670

GASKET

Cover plate

1шт.

32

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

33

192-23

LOCK WASHER,1/2"

2шт.

35

A66949

STEP BOLT

Bearing cap and oil pump, 5/8" x 7-1/4" NC

2шт.

36

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

21/32" x 1" x 1/8" (16.67 x 25.4 x 3.17 mm)

2шт.

Выбрано товаров: 32
