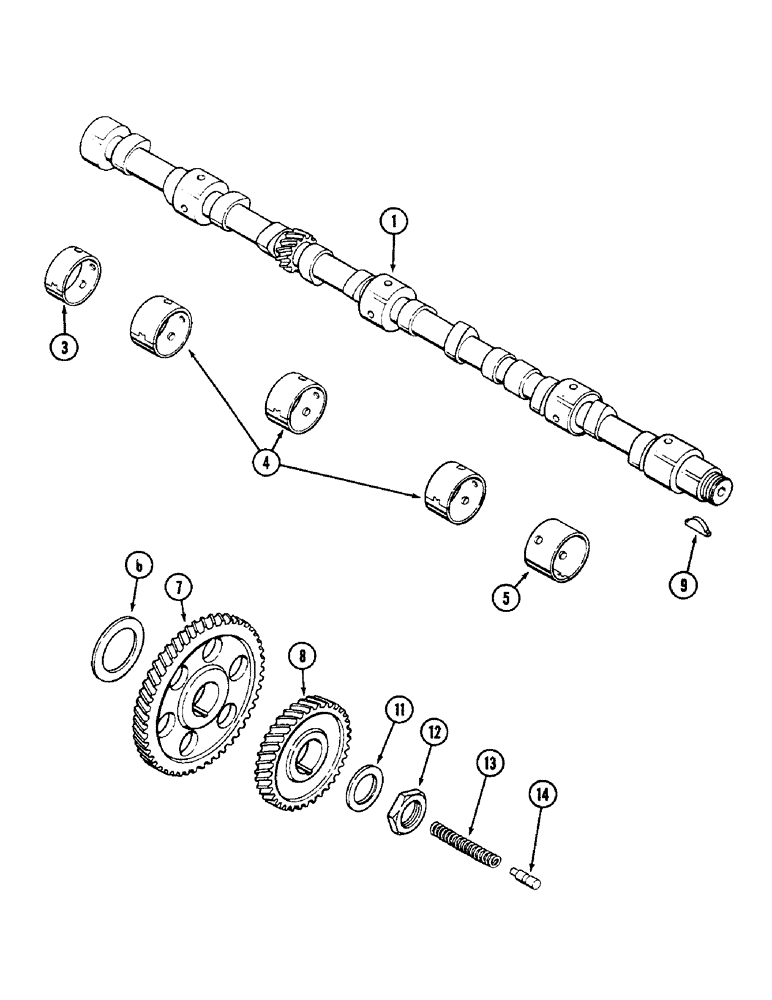

Запчасти Case IH 4690 (2-036) - CAMSHAFT, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A66124

CAMSHAFT

- engine

1шт.

3

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- rear, 1-5/32" (29.17 MM) wide

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- intermediate, 1-7/16" (36.51 MM) wide

3шт.

5

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- front, 1-21/32" (42.07 MM) wide

1шт.

6

A21017

WASHER

- thrust, camshaft gear

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - Hi-Pro, 5/16" x 1-5/16" (7.94 x 43.34 MM)

1шт.

11

A31038

THRUST WASHER

- camshaft nut

1шт.

12

A58595

NUT

- camshaft

1шт.

13

A27853

SPRING

- plunger, 3-5/8" (92.07 MM) free length

1шт.

14

A27852

PLUNGER

- thrust, camshaft

1шт.
