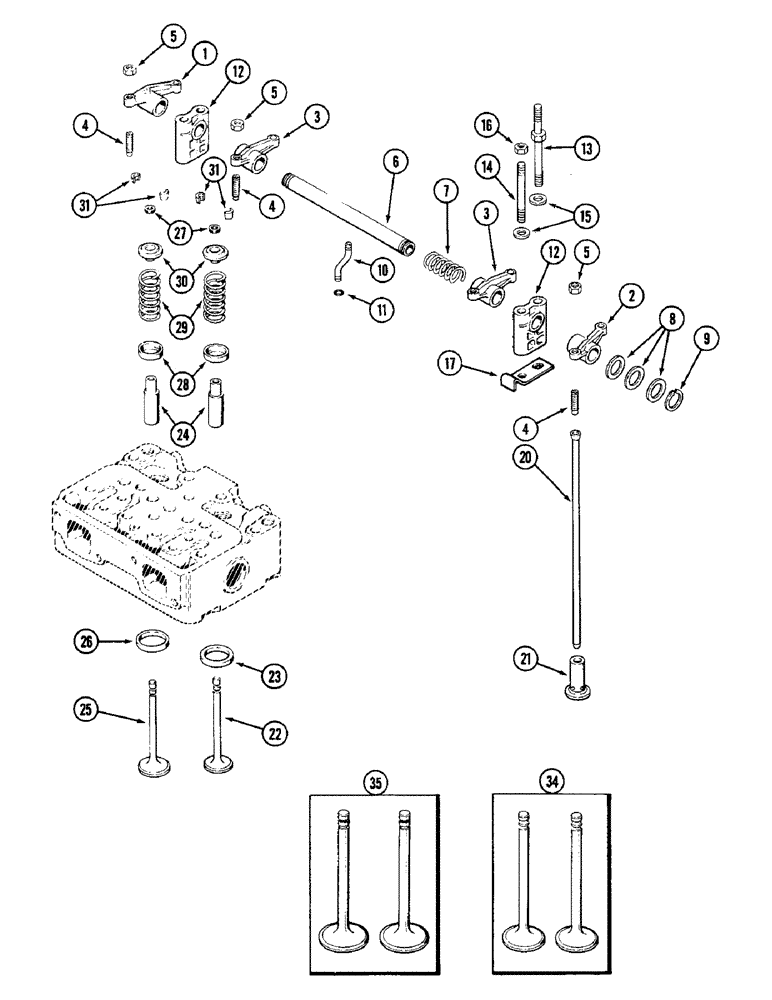

Запчасти Case IH 4690 (2-034) - VALVE MECHANISM, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A148137

ROCKER ARM

ASSY, exhaust valve, No. 1, 3 and 5 cylinder, Incl. Ref. 4 and 5

3шт.

2

A148138

ARM

ASSY - rocker, exhuast valve, No. 2, 4 and 6 cylinder, Incl. Ref. 4 and 5

3шт.

3

A148136

ARM

ASSY - rocker, intake valve, Incl. Ref. 4 and 5

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

1шт.

5

25-116

NUT,Hex, 3/8"-24, G5

1шт.

6

A150545

SHAFT

Rocker (Replaces A57532)

3шт.

7

A27877

SPRING

Rocker shaft

3шт.

8

A27878

WASHER

29/32" x 1-5/16" x 1/32" (23.02 x 33.34 x 0.79 mm)

1шт.

9

B18206

SNAP RING,#87, Ext

Rocker shaft

6шт.

10

A58657

TUBE

Oil, rocker shaft

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

(M4.76 ID x 1.59 Thk)

3шт.

12

A61128

BRACKET

Rocker shaft

6шт.

13

A67121

STUD

Rocker shaft bracket and cover

6шт.

14

A58659

STUD

Bracket, 7/16" NC x 4-5/16"

6шт.

15

195-29

WASHER,7/16"

15/32" x 59/64" x 5/64" (11.9 x 23.4 x 1.9 mm)

12шт.

16

129-104

NUT,7/16"-14, G5

6шт.

17

A157197

STRAP

Rockshaft bracket

6шт.

20

A141841

ROD

Push

12шт.

21

A20865

TAPPET

LIFTER - push rod

12шт.

22

REF

INSTRUCTION

VALVE - exhaust (Order ref. 34)

6шт.

23

A66192

INSERT

Exhaust valve seat

6шт.

24

A41783

GUIDE

Valve stem (See page 2-32)

12шт.

25

REF

INSTRUCTION

VALVE - intake (Order ref. 35)

6шт.

26

A66191

INSERT

Intake valve seat

6шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

Valve stem

12шт.

28

A66328

SEAT

Valve spring

12шт.

29

A66444

SPRING

Valve, 2-3/16" (55.56 mm) free length

12шт.

30

A66336

ROTATOR

ROTOCOIL - valve

12шт.

31

A27872

LOCK

Valve spring

24шт.

34

A41753

VALVE

KIT - exhaust (Set of 2)

3шт.

35

A44575

VALVE

KIT - intake (Set of 2)

3шт.
