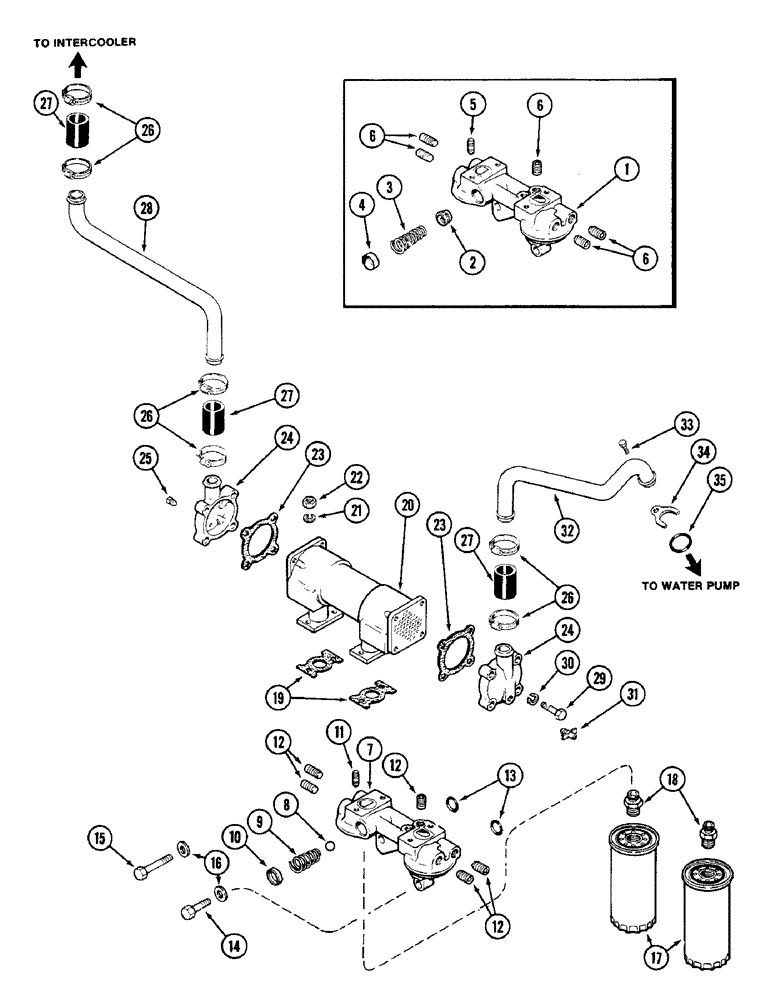

Запчасти Case IH 4690 (2-030) - OIL FILTER AND HEAT EXCHANGER, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A64107

BASE

ASSEMBLY - filter and heat exchanger (Prior to engine serial no. 10307394) (Order A154541), Includes: Ref. 2 - 6

1шт.

2

A21090

VALVE

- relief

1шт.

3

A58669

SPRING

- relief, 2-13/16" (71.44 MM) free length

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" cup type (31.75 MM)

1шт.

5

G102128

BOLT

- 3/4" NC x 1-1/2"

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT hex socket head

5шт.

7

A154541

BASE

ASSEMBLY - filter and heat exchanger (Engine serial no. 10307394 and after), Includes: Ref. 8 - 12

1шт.

8

211-17

BALL,3/4" Dia

- relief valve, 3/4" (19.04 MM) diameter

1шт.

9

A146897

SPRING

- relief

1шт.

10

41-1020

PLUG,Cup, 1 1/4"

- 1-1/4" cup type (31.75 MM)

1шт.

11

A62234

STUD

- 3/8" NC x1-5/16"

4шт.

12

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT hex socket head

5шт.

13

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- 59/64" x 7/64" width (23.42 ID x 2.78 MM width)

2шт.

14

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

15

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

16

195-33

WASHER,1/2"

- 17/32" x 1-1/16" x 7/64" (13.5 x 37 x 2.8 MM)

2шт.

17

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (JI Case Company installed, 6-7/8" long (174.75 MM) (Order A44081)

2шт.

17

A44081

ENGINE OIL FILTER

ELEMENT - oil filter (For service, 8-5/8" long) (218.94 MM)

2шт.

18

A63916

ADAPTER

-, Serial Range: filter-base

2шт.

19

A65359

GASKET

- heat, Serial Range: exchanger-base

2шт.

20

A75295

OIL COOLER

HEAT EXCHANGER - oil

1шт.

21

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

23

A63920

GASKET

- cover

2шт.

24

A64349

HOOD

COVER - end, heat exchanger

2шт.

25

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT square head

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 x 44.45 MM)

6шт.

27

A58640

HOSE

- by-pass

3шт.

28

A144426

TUBE

- intercooler to heat exchanger

1шт.

29

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

30

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

31

217-107

VALVE

- drain, 1/8" PT

1шт.

32

A76664

PIPE

TUBE - heat exchanger to water pump

1шт.

33

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

34

A76666

CLAMP

- tube

1шт.

35

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- 1-1/18" ID x 1/8" width (28.57 ID x 3.17 MM width)

1шт.
