Запчасти Case IH 4690 (2-028) - TURBOCHARGER ASSEMBLY, 504BDTI DIESEL ENGINE (02) - ENGINE

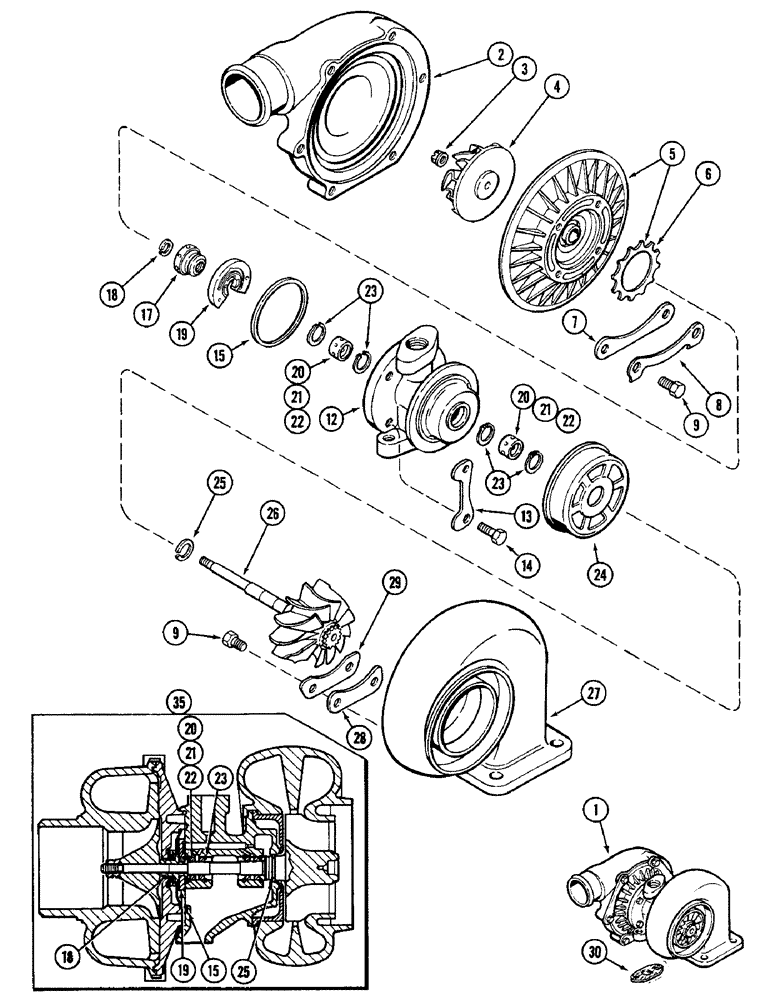

Схема запчастей Case IH 4690 - (2-028) - TURBOCHARGER ASSEMBLY, 504BDTI DIESEL ENGINE (02) - ENGINE
9
12
18
6
15
13
2
23
22
28
7
23
24
27
21
14
4
22
9
15
30
20
35
21
23
17
20
5
25
8
1
22
29
16
21
26
28
25
3
19
19

Артикул

Название

Примечание

Количество

1

A157336

TURBOCHARGER

TURBOCHARGER ASSEMBLY - new (Replaces A76341), Includes: Ref. 2 - 29

1шт.

1

A48192

REMAN-TURBOCHARGER

4690, Reman For New P/N A157336

1шт.

1

A48191

CORE-TURBOCHARGER

Return Part Number

1шт.

1

A44499

TURBOCHARGER

TURBOCHARGER ASSEMBLY - Remanufactured, Includes: Ref. 2 - 29

1шт.

1

A48192

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

A44498

CORE-TURBOCHARGER

Return Part Number, use this part no. to return turbocharger core for credit

1шт.

2

A45097

HOUSING

HOUSING - compressor

1шт.

3

A44831

NUT

NUT - lock, compressor

1шт.

4

A45016

IMPELLER

IMPELLER - turbocharger

1шт.

5

A45095

PLATE

PLATE ASSEMBLY - back, Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - thrust

1шт.

7

A44838

CLAMP

CLAMP - compressor housing

3шт.

8

A44839

PLATE

PLATE - lock, compressor housing clamp

3шт.

9

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

12шт.

12

A44825

HOUSING

HOUSING - center

1шт.

13

A44820

PLATE

PLATE - lock center housing to back plate

2шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

15

A44833

RING

RING - seal, back plate to center housing

1шт.

17

A44830

COLLAR

COLLAR - thrust, compressor

1шт.

18

A44828

RING

RING - piston, compressor 1/2" OD (12.7 MM)

1шт.

19

A44832

THRUST BEARING,0.172"

BEARING - thrust plate

1шт.

20

A44826

BEARING

BEARING - journal, center, standard (Order A157328)

2шт.

21

A44849

BUSHING

BEARING - journal, center 0.005" undersize (0.13 MM)

2шт.

22

A44850

BUSHING

BEARING - journal, center 0.010" undersize (0.25 MM)

2шт.

23

A44827

RING

RING - snap, journal bearing

4шт.

24

A45091

GUARD

SHROUD - center housing side wheel

1шт.

25

A44829

RING

RING - piston, turbine housing 23/32" OD (18.28 MM)

1шт.

26

A44841

WHEEL

WHEEL - turbocharger shaft

1шт.

27

A44840

HOUSING

HOUSING - turbocharger

1шт.

28

A44823

CLAMP

CLAMP - turbocharger to turbine housing

3шт.

29

A44824

PLATE

PLATE - lock, turbocharger to turbine housing

3шт.

30

A58802

GASKET - oil drain tube

1шт.

35

A45344

KIT

KIT - repair, center bearing (Standard) (Includes refs. nos. 15, 18, 19, 20, 23, 25 and 30)

1шт.

Выбрано товаров: 33
