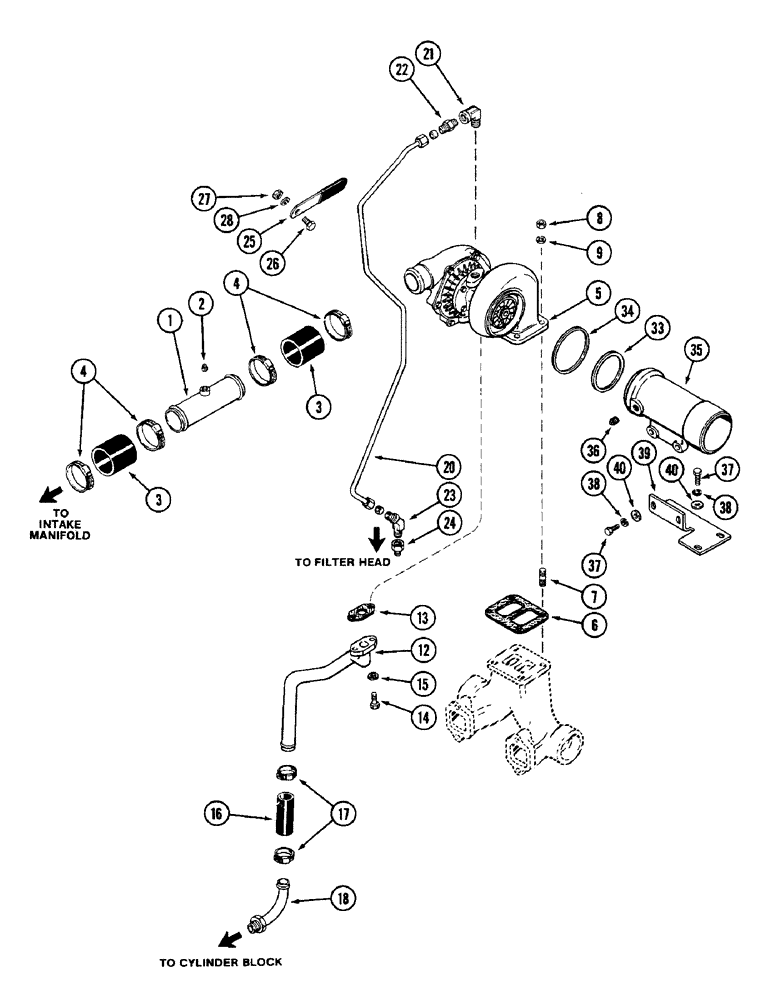

Запчасти Case IH 4690 (2-026) - TURBOCHARGER SYSTEM, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A144406

TUBE

Air intake

1шт.

2

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

1шт.

3

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2шт.

4

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

(33.34 x 57.15 mm)

4шт.

5

REF

INSTRUCTION

TURBOCHARGER ASSY - (See Figure 2-028)

1шт.

6

A58899

GASKET,0.45mm Thk

, Serial Range: Turbocharger-manifold

1шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

STUD - turbocharger, 3/8" NC x 1-1/2"

4шт.

Can use G102128

1шт.

8

131-903

NUT,3/8"-16

Seez-Pruf

4шт.

9

192-21

LOCK WASHER,3/8"

4шт.

12

A62518

TUBE

Oil drain, turbocharger

1шт.

13

A58892

GASKET,1.59mm Thk

Tube flange

1шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

192-21

LOCK WASHER,3/8"

2шт.

16

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

Drain

1шт.

17

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1-3/16" to 1-3/4" (30.16 x 44.45 mm)

2шт.

18

A58897

FITTING

Drain, Serial Range: hose-block

1шт.

20

A166064

TUBE

ASSY - oil supply (Replaces A153800)

1шт.

21

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

Street

1шт.

22

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

Turbocharger, 3/8" tube x 1/4"

1шт.

222-154

SLEEVE,3/8" Tube

Between fittings #22 and #23 and tubings

1шт.

23

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

45 degree, 3/8" tube x 3/8" PT

1шт.

24

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

BUSHING

1шт.

25

A22883

CLIP

CLAMP - tube

1шт.

26

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

27

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

28

192-21

LOCK WASHER,3/8"

1шт.

33

A138817

RING,2.64mm Thk

Seal, turbocharger outlet, 3.55" O.D.

1шт.

34

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

SPACER - outlet elbow, 4" O.D.

1шт.

35

A152392

FITTING

ELBOW - exhaust outlet

1шт.

36

221-1012

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

1шт.

37

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

38

192-21

LOCK WASHER,3/8"

5шт.

39

A152391

BRACKET

Outlet elbow

1шт.

40

95-6

WASHER,3/8"

7/16" x 1" x 5/64" (11.1 x 25.4 x 1.9 mm)

5шт.
