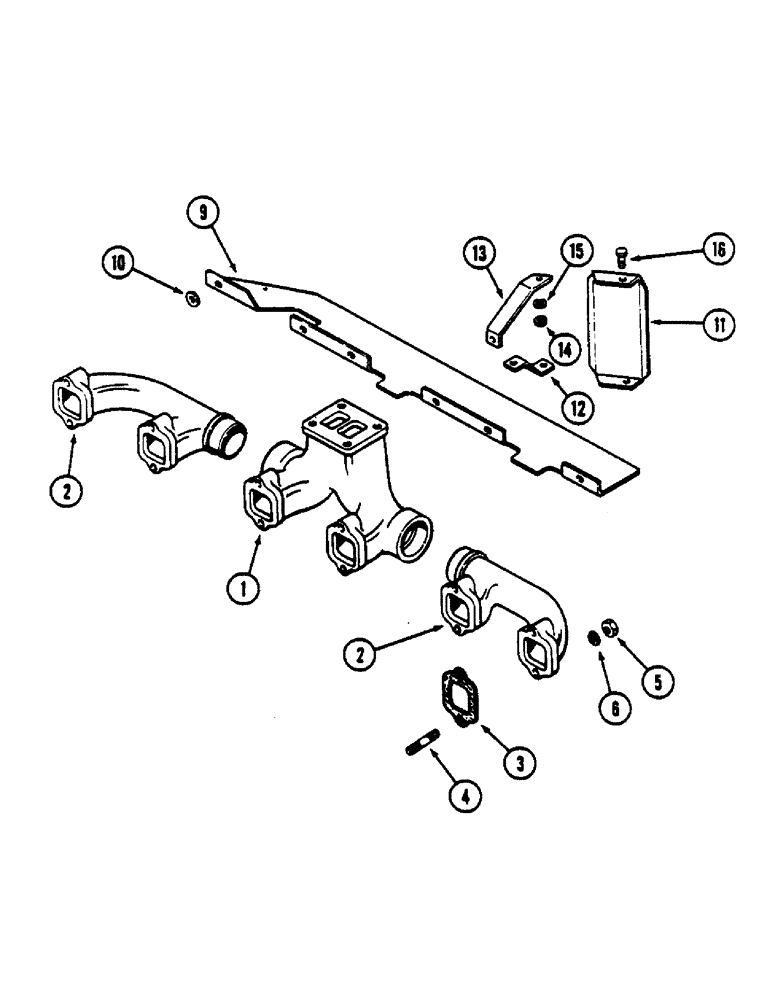

Запчасти Case IH 4690 (2-022) - EXHAUST MANIFOLD, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A76322

MANIFOLD

- exhaust, center section

1шт.

2

A65917

MANIFOLD

- exhaust, end section

2шт.

3

A58666

MANIFOLD GASKET

-, Serial Range: manifold-head

6шт.

4

A140924

STUD

- manifold to head, 3/8" NC x 2-7/16" (16.91 MM)

12шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" NC hex Seez Pruf

12шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

9

A76351

GUARD

SHIELD - heat

1шт.

10

195-25

WASHER,3/8"

- 13/32" x 13/16" x 1/16" (10.3 x 20.6 x 1.6 MM)

6шт.

11

A76188

GUARD

SHIELD - manifold

1шт.

12

A76187

SUPPORT

- upper, shield

1шт.

13

A77069

SUPPORT

- lower, shield

1шт.

14

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

15

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

16

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.
