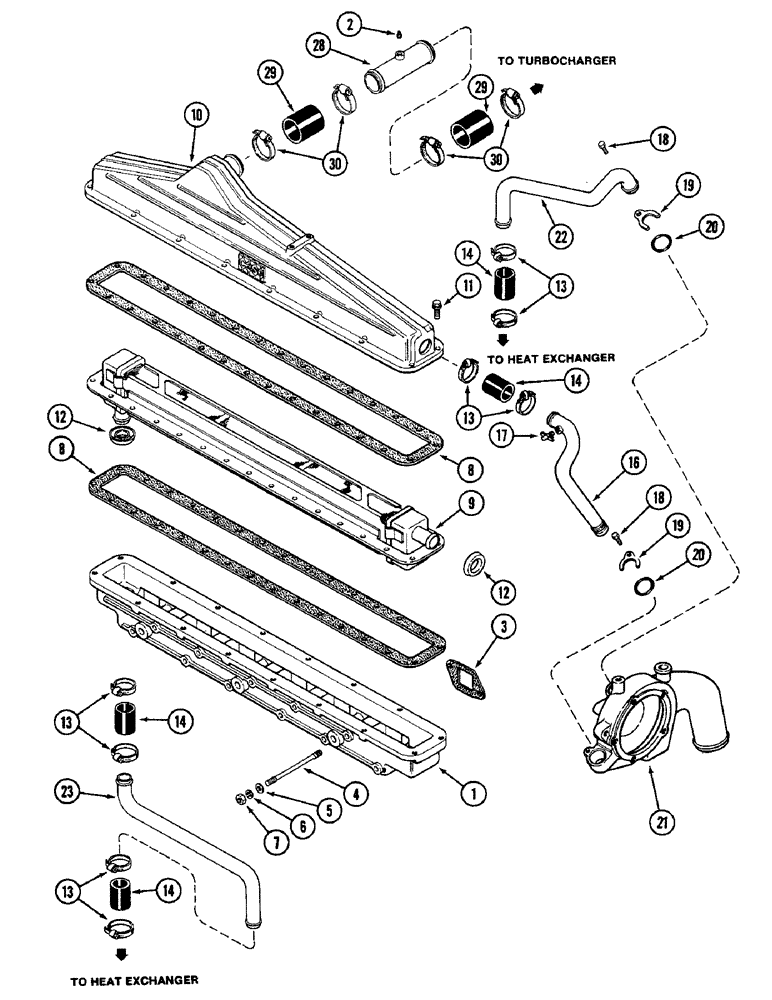

Запчасти Case IH 4690 (2-020) - INTAKE MANIFOLD AND INTERCOOLER, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A144300

TUBE

MANIFOLD - intake, lower section

1шт.

2

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

1шт.

3

A58662

MANIFOLD GASKET

, Serial Range: Manifold-head

6шт.

4

A144593

STUD

Manifold to head, 3/8" NC x 6-13/16" (173 mm)

11шт.

4

A59077

STUD

Manifold to head, 3/8" NC x 1-13/16" (46 mm)

1шт.

5

195-25

WASHER,3/8"

13/32" x 13/16" x 1/16" (10.3 x 20.6 x 1.6 mm)

12шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

12шт.

7

25-166

NUT,3/8"-16, G5, Hvy

12шт.

8

A76663

GASKET

, Serial Range: Intercooler-manifold

2шт.

9

A76661

CORE

Intercooler

1шт.

10

A150285

MANIFOLD

Intake, upper section

1шт.

11

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

16шт.

12

A76662

SEAL

Intercooler

2шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1-13/16" to 1-3/4"

8шт.

14

A58681

HOSE

By-pass, 1-1/4" ID x 2-1/2" long (31.75 x 63.5 mm) (Replaces A58640)

4шт.

REF ITEM 14-P/N A58681; THIS IS AN 1" ID HOSE AND IS 2-1/2" LONG. PARTSBOOK IS IN ERROR. P/N A58640 IS 1-1/4" ID. IT SUBS TO A161681.

1шт.

16

A144544

TUBE

Water, Serial Range: pump-intercooler

1шт.

17

217-81

VALVE

Drain, 1/8" PT

1шт.

18

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

19

A76666

CLAMP

Tube

2шт.

20

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

(M28.57 ID x 3.17 Thk)

2шт.

21

REF

INSTRUCTION

BODY - water pump (See Figure 2-010)

1шт.

22

A76664

PIPE

TUBE - heat exchanger to water pump

1шт.

23

A144426

TUBE

Intercooler to heat exchanger

1шт.

28

A144406

TUBE

Intake, Serial Range: manifold-turbocharger

1шт.

29

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

2шт.

30

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.
