Запчасти Case IH 4690 (2-018) - ETHER COLD START, 504BDTI DIESEL ENGINE (02) - ENGINE

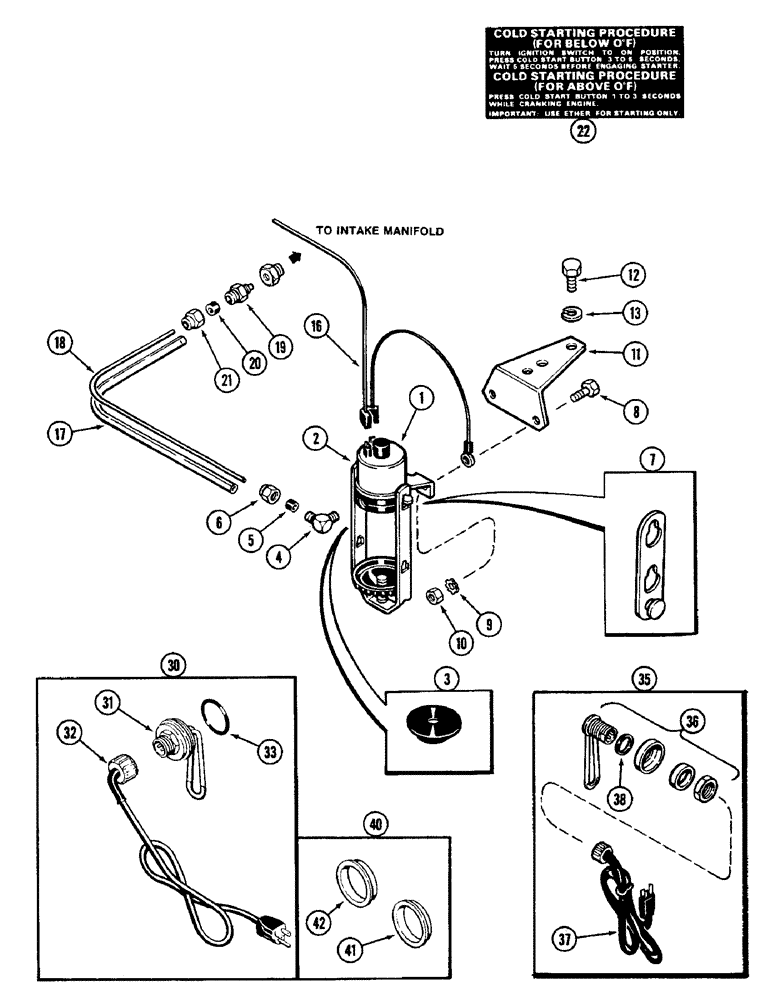

Схема запчастей Case IH 4690 - (2-018) - ETHER COLD START, 504BDTI DIESEL ENGINE (02) - ENGINE
20
8
38
22
21
11
3
10
41
6
42
9
19
35
4
31
13
18
37
2
7
30
36
33
16
12
17
5
32
1
40

Артикул

Название

Примечание

Количество

1

A143381

SOLENOID

ASSY - ether injection, Incl. Ref. 2 - 6

1шт.

2

A45687

CLAMP

HANGER - ether can

1шт.

3

R30786

GASKET

Can

1шт.

4

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

ASSY, Incl. Ref 5 & 6

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

(3.17 mm)

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube (3.17 mm)

1шт.

7

R30812

LINK

Hanger extension

2шт.

8

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

193-45

WASHER,Ext-Int Tooth, 5/16"

SPARE PART Shakeproof

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

2шт.

11

A152208

SUPPORT

Solenoid

1шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

2шт.

16

REF

INSTRUCTION

HARNESS - wire, engine (See Figure 4-072)

1шт.

17

A67322

TUBE

Outer, 1/4" OD x 7" (6.35 x 177.3 mm) (Order L108947, 174", 4 419.6 mm, Serial Range: cut-length)

1шт.

18

A138483

TUBE

Plastic, solenoid to injector, 1/8" OD x 9" (3.17 mm x 228.6 mm)

1шт.

19

A145070

NOZZLE INJECTION

ASSY, Incl. Ref. 20 and 21

1шт.

20

222-650

SLEEVE,1/8" Tube, Comp

(3.17 mm)

1шт.

21

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube (3.17 mm)

1шт.

22

321-2946

DECAL

Instruction

1шт.

30

A154740

UNIT HEATER

KIT - engine coolant (Order A155436), cylinder block, Incl. Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

ELEMENT - heater

1шт.

32

A44813

CABLE EXTENSION

CORD - 12" (304.8 mm)

1шт.

33

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

(44.45 ID x 3.17 mm width)

1шт.

35

A155436

RESISTOR

HEATER KIT - engine coolant (Replaces A154740), cylinder block, Incl. Ref. 36 - 38

1шт.

Item #35 A155436 subs to 3 diff. part #'s depending on the use. A182017 & A182020 fit in a frost plug hole

1шт.

approx. 1-7/8" dia. A182059 has a 1" thread.

1шт.

36

NSS

NOT SOLD SEPARAT

ELEMENT - heater

1шт.

37

A44813

CABLE EXTENSION

CORD - 12" (304.8 mm)

1шт.

38

A45114

GASKET

Element

1шт.

40

A44006

SLEEVE

KIT - heater installation, cylinder block, Incl. Ref. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/16" (52.39 mm) diameter hole

1шт.

42

NSS

NOT SOLD SEPARAT

SLEEVE - for 2-1/8" (53.97 mm) diameter hole

1шт.

Выбрано товаров: 33
