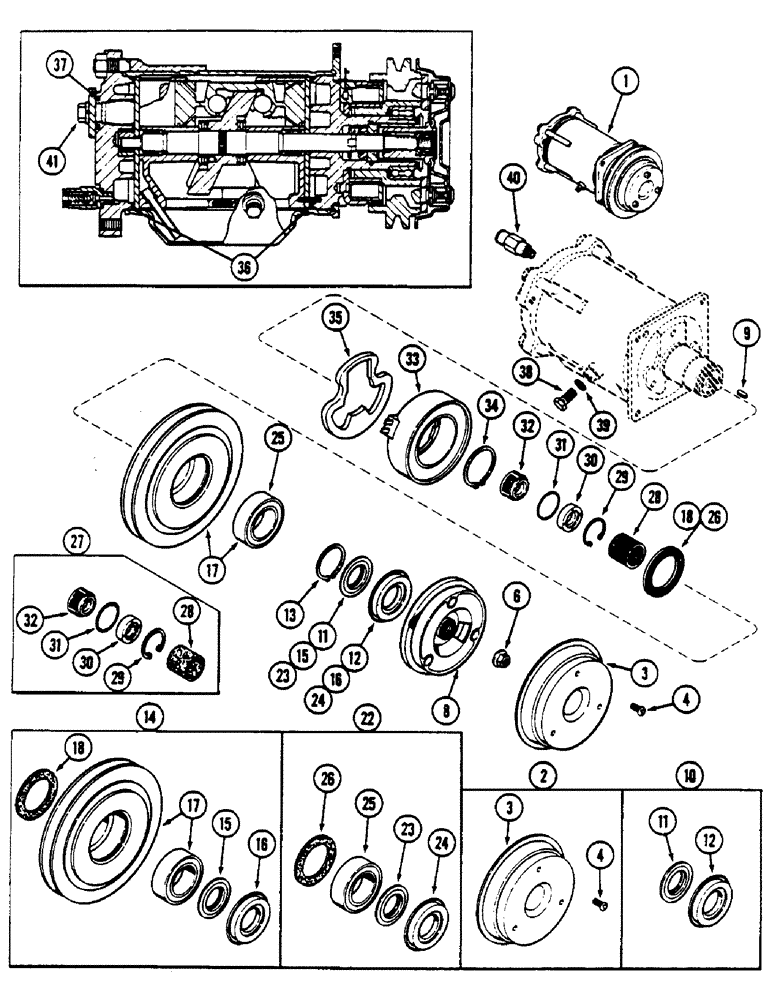

Запчасти Case IH 4690 (9-442) - AIR CONDITIONER, AIR COMPRESSOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A160638
COMPRESSOR
COMPRESSOR ASSEMBLY - Delco No. 1131264 (Takes metric hardware), Includes: Ref. 2 - 41
1шт.
1
AR160638
REMAN-A/C COMPRESSOR,W/ Pulley
Remanufactured, Compressor
1шт.
1
AC160638
CORE-A/C COMPRESSOR
Return Number
1шт.
1
A135362
COMPRESSOR
COMPRESSOR ASSEMBLY - Delco No. 1131080 (Order A160638), Includes: Ref. 2 - 41
1шт.
2
A44921
KIT
KIT - dust cover pulley, Includes: Ref. 3 and 4
1шт.
3
NSS
NOT SOLD SEPARAT
COVER - dust pulley
1шт.
4
NSS
NOT SOLD SEPARAT
SCREW - #10-16 x 3/8" flat head cross type
3шт.
6
A47671
NUT
NUT - lock, shaft hub (Replaces A44924, A44925 and A44926)
1шт.
8
A44923
CLUTCH
CLUTCH - drive
1шт.
9
A44927
KEY
KEY - shaft hub
1шт.
10
A44930
KIT
KIT - seal, pulley bearing, Includes: Ref. 11 and 12
1шт.
11
NSS
NOT SOLD SEPARAT
RETAINER - bearing seal, pulley
1шт.
12
NSS
NOT SOLD SEPARAT
SEAL - bearing, pulley
1шт.
13
A44933
SNAP RING,#156, Ext
Ring, Snap, , brg #156, Ext
1шт.
14
A44935
PULLEY
PULLEY ASSEMBLY - with bearing, Includes: Ref. 15 - 18
1шт.
15
NSS
NOT SOLD SEPARAT
RETAINER - pulley bearing seal
1шт.
16
NSS
NOT SOLD SEPARAT
SEAL - pulley bearing
1шт.
17
NSS
NOT SOLD SEPARAT
PULLEY AND BEARING ASSEMBLY - compressor
1шт.
This compressor is R134A compatible when ordered new. It does not state that the older version is compatible.
1шт.
18
NSS
NOT SOLD SEPARAT
SEAL - bearing, rear
1шт.
22
A44934
KIT
KIT - bearing, pulley, Includes: Ref. 23 - 26
1шт.
23
NSS
NOT SOLD SEPARAT
RETAINER - pulley bearing seal
1шт.
24
NSS
NOT SOLD SEPARAT
SEAL - pulley bearing
1шт.
25
NSS
NOT SOLD SEPARAT
BEARING - pulley
1шт.
26
NSS
NOT SOLD SEPARAT
SEAL - rear bearing
1шт.
27
A44929
KIT
KIT ASSEMBLY - seal, shaft, Includes: Ref. 28 - 32
1шт.
28
NSS
NOT SOLD SEPARAT
SLEEVE - felt seal
1шт.
29
NSS
NOT SOLD SEPARAT
RING - retaining
1шт.
30
NSS
NOT SOLD SEPARAT
SEAT - seal, ceramic
1шт.
31
NSS
NOT SOLD SEPARAT
O-RING - seat
1шт.
32
NSS
NOT SOLD SEPARAT
SEAL ASSEMBLY - shaft
1шт.
33
A44936
COIL
COIL - pulley
1шт.
34
A44937
SNAP RING,#175, Ext
Ring, Snap, , coil hsg to head #175, Ext
1шт.
35
A44938
GASKET
GASKET - head
1шт.
36
A44940
O-RING,0.796" ID x 0.139"
O-RING - front and rear head, 4-1/4 ID x 7/64" width (107.9 ID x 2.78 MM width)
2шт.
37
A44941
O-RING
O-RING - suction and dish port, 13/16 ID x 9/64" width (20.63 ID x 3.57 MM width)
2шт.
38
A44939
PLUG
PLUG - charging
2шт.
39
A26413
GASKET
GASKET - charging screw
1шт.
40
A44942
VALVE
VALVE - pressure relief
1шт.
41
114-209
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5
BOLT - 3/8" x 3/4" NF hex (Grade 5)
1шт.
Выбрано товаров: 40
