(9-434) - CAB, HEADLINER NOISE PADS, USE WITH RADIO, PRIOR TO CAB SERIAL NUMBER 12036610

Запчасти Case IH 4690 (9-434) - CAB, HEADLINER NOISE PADS, USE WITH RADIO, PRIOR TO CAB SERIAL NUMBER 12036610 (09) - CHASSIS/ATTACHMENTS

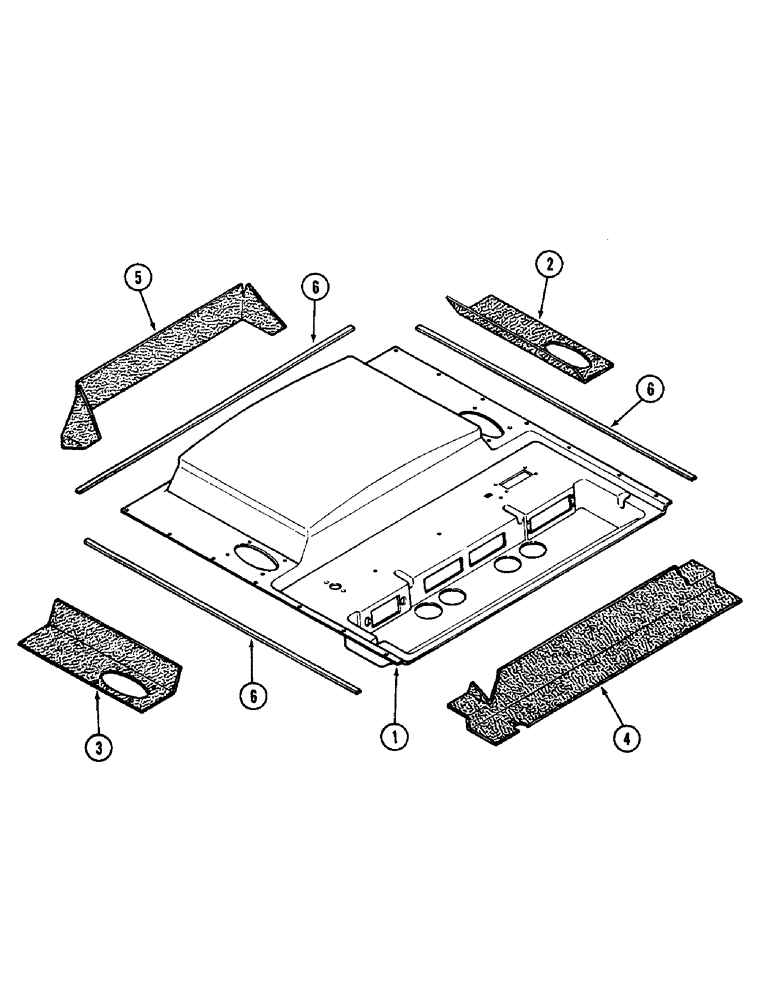

Схема запчастей Case IH 4690 - (9-434) - CAB, HEADLINER NOISE PADS, USE WITH RADIO, PRIOR TO CAB SERIAL NUMBER 12036610 (09) - CHASSIS/ATTACHMENTS
4
6
1
6
6
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEADLINER - cab (See Figure 9-406 and 9-408)

1шт.

2

F64245

PAD

Damping, LH

1шт.

3

F64246

PAD

Damping, RH

1шт.

4

F64477

PAD

Damping, front

1шт.

5

F64248

PAD

Damping, rear

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - outer edge, 44" (1117.6 mm) long (Order F64119)

1шт.

F64119

SEALING STRIP

Seal, 100' (328 M) roll, Serial Range: (Cut-length)

1шт.
