Запчасти Case IH 4690 (2-016) - AIR CLEANER ASSEMBLY, 504BDTI DIESEL ENGINE (02) - ENGINE

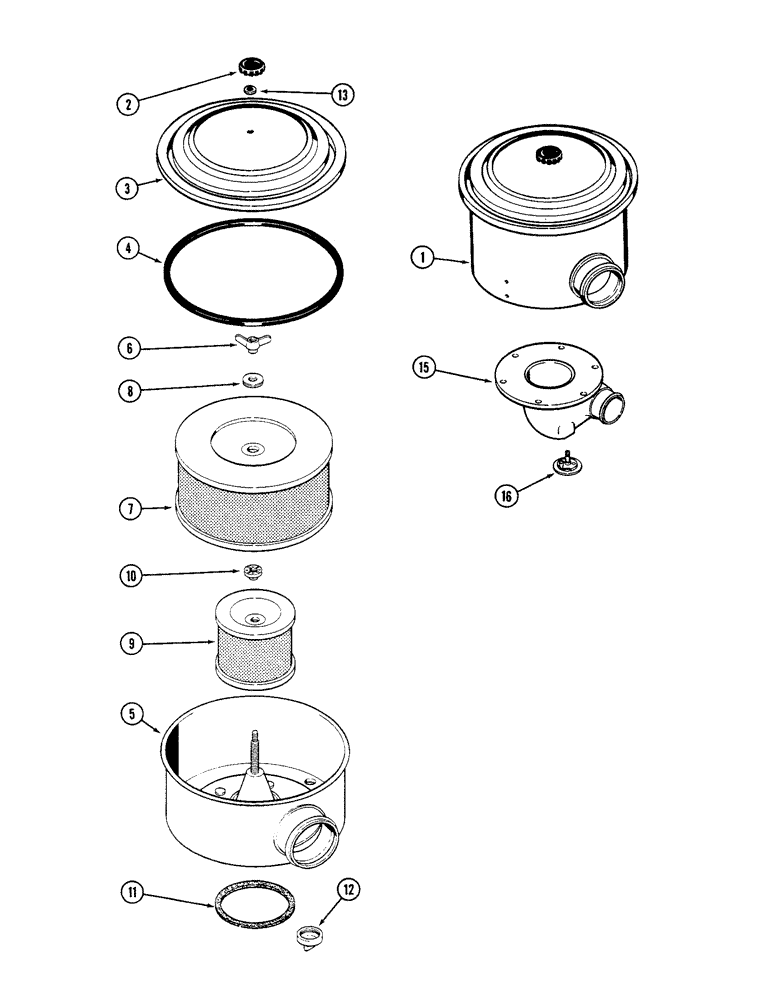

Схема запчастей Case IH 4690 - (2-016) - AIR CLEANER ASSEMBLY, 504BDTI DIESEL ENGINE (02) - ENGINE
10
2
1
11
16
13
7
6
8
12
15
3
9
5
4

Артикул

Название

Примечание

Количество

1

A76855

CLEANER

ASSY - engine, Incl. Ref. 2 - 12

1шт.

2

A47390

KNOB

, Serial Range: Cover-body

1шт.

3

A44190

COVER

ASSY - element, Incl. Ref. 4

1шт.

4

A44191

GASKET

, Serial Range: Cover-body

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - air cleaner (Order A76855)

1шт.

6

L35499

NUT

Wing

1шт.

7

A44804

AIR FILTER

ELEMENT ASSEMBLY - Primary, Incl. Ref. 8

1шт.

8

A44187

WASHER

Wing nut

1шт.

9

A44805

AIR CLEANER

ELEMENT ASSEMBLY - Secondary, Incl. Ref. 10

1шт.

10

A44188

SEAL

NUT

1шт.

11

A44801

GASKET

Mounting

1шт.

12

A44184

VALVE

Vacuator

1шт.

13

A161723

WASHER

Sealing

1шт.

Use Case adhesive 345-22 to install washer to cover.

1шт.

15

REF

INSTRUCTION

ELBOW - mounting (See Figure 2-012), air restriction switch

1шт.

16

A154782

SWITCH

Air restriction sender

1шт.

The two elbows and wire supplied with switch are not used in this application.

1шт.

Выбрано товаров: 17
