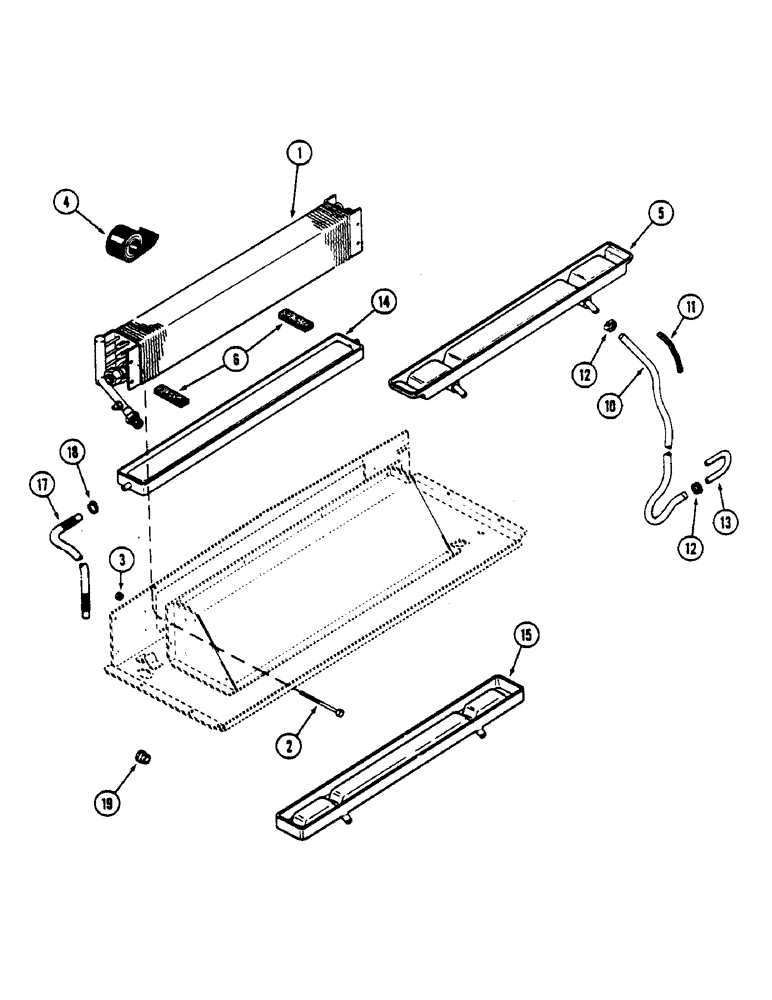

Запчасти Case IH 4690 (9-420) - CAB, AIR CONDITIONER EVAPORATOR (09) - CHASSIS/ATTACHMENTS

1

F63870

EVAPORATOR

- evaporator, air conditioner

1шт.

2

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- 1/4" x 4" NC hex (Grade 5)

4шт.

3

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4" NC hex

4шт.

4

345-37

TAPE

- insulator, 2-1/2" x 12" x 1/8" (63.5 x 304.8 x 3.05 MM)

3шт.

5

F63684

PAN

- condensation, prior to cab serial no. 12033998

1шт.

6

F63670

SEAL

- pan to core, 1" x 3-1/2" x 1/4" (25.4 x 88.9 x 6.35 MM), prior to cab serial no. 12033998

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - drain, 75" (1905 MM) long (Order A42698), prior to cab serial no. 12033998

2шт.

A42698

HOSE

- 1/2" (12.7 MM) ID x 50' roll (15.25 M), Serial Range: (Cut-length)

1шт.

11

F63327

SPRING

- stiffener, drain hose, prior to cab serial no. 12033998

2шт.

12

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16", prior to cab serial no. 12033998

4шт.

13

F63873

TUBE

- trap, drain, prior to cab serial no. 12033998

2шт.

14

F64487

PAN

- condensation (Cab serial no. 12036610 and after), cab serial no. 12033998 and after

1шт.

15

F64529

PAN

- condensation (Cab serial no. 12033998 to serial no. 12033610), cab serial no. 12033998 and after

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - drain, 90" (2286 MM) long (Order F64508), cab serial no. 12033998 and after

2шт.

F64508

HOSE,0.43" ID x 100' Bulk

- (Cut to length), cab serial no. 12033998 and after 0.43" ID x 100' Bulk

1шт.

18

214-300

CLAMP

- hose, #18 SAE, cab serial no. 12033998 and after

2шт.

19

F64504

BUSHING

- snap, hose, cab serial no. 12033998 and after

2шт.
