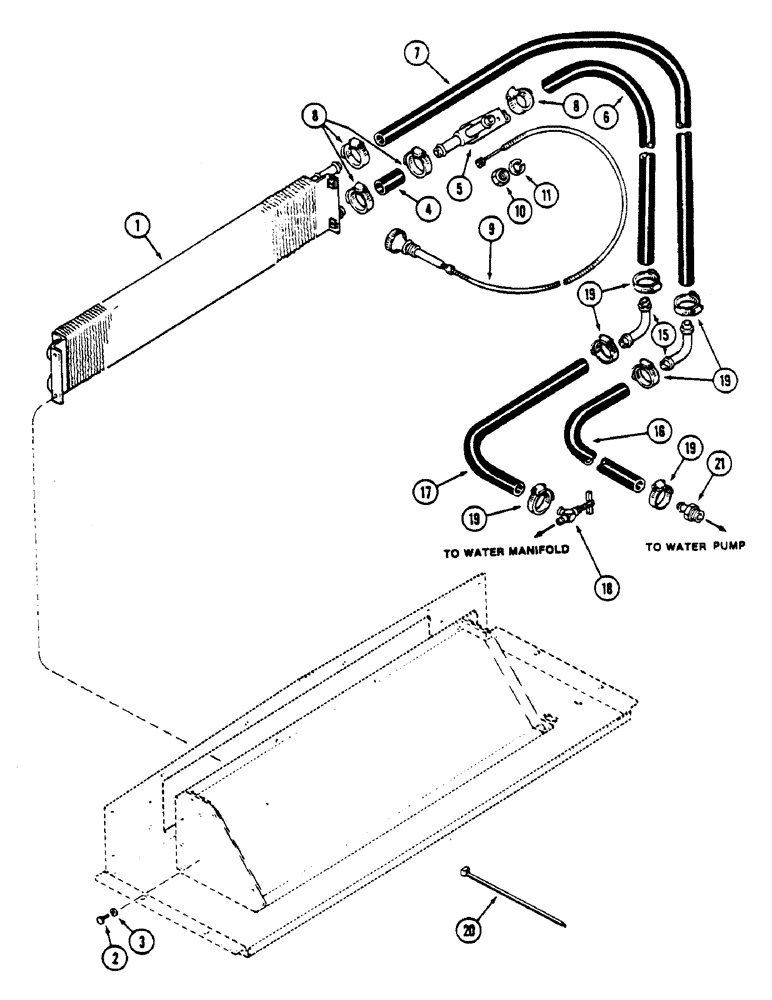

Запчасти Case IH 4690 (9-418) - CAB, HEATER GROUP (09) - CHASSIS/ATTACHMENTS

1

F63680

CORE

- heater

1шт.

2

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

4

NSS

NOT SOLD SEPARAT

HOSE - core to valve, 2" (50.8 MM) long (Order A42610)

1шт.

5

F63865

VALVE

- heat control

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - valve outlet, 77" (1 955 MM) long (Order A42610)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - core inlet, 81" (2 057.4 MM) long (Order A42610)

1шт.

8

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16"

4шт.

9

A42614

CABLE

ASSEMBLY - control, heat valve, Includes: Ref. 10 and 11

1шт.

10

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

11

92-5

LOCK WASHER,5/16"

WASHER - lock, 3/8"

1шт.

15

A60823

ELBOW

- hose

2шт.

16

NSS

NOT SOLD SEPARAT

HOSE - water pump, 75" (1905 MM) long (Order A42610)

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - from water manifold, 52" (1828.8 MM) long (Order A42610)

1шт.

18

A16764

VALVE

- shutoff

1шт.

19

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16"

6шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - nylon, hose harness

1шт.

21

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - 5/8" hose x 1/2" PT

1шт.

A42610

LARGE HOSE

HOSE - 5/8" (15.87 MM) ID x 1" (25.4 MM) OD x 50' (15.25 M)

1шт.
