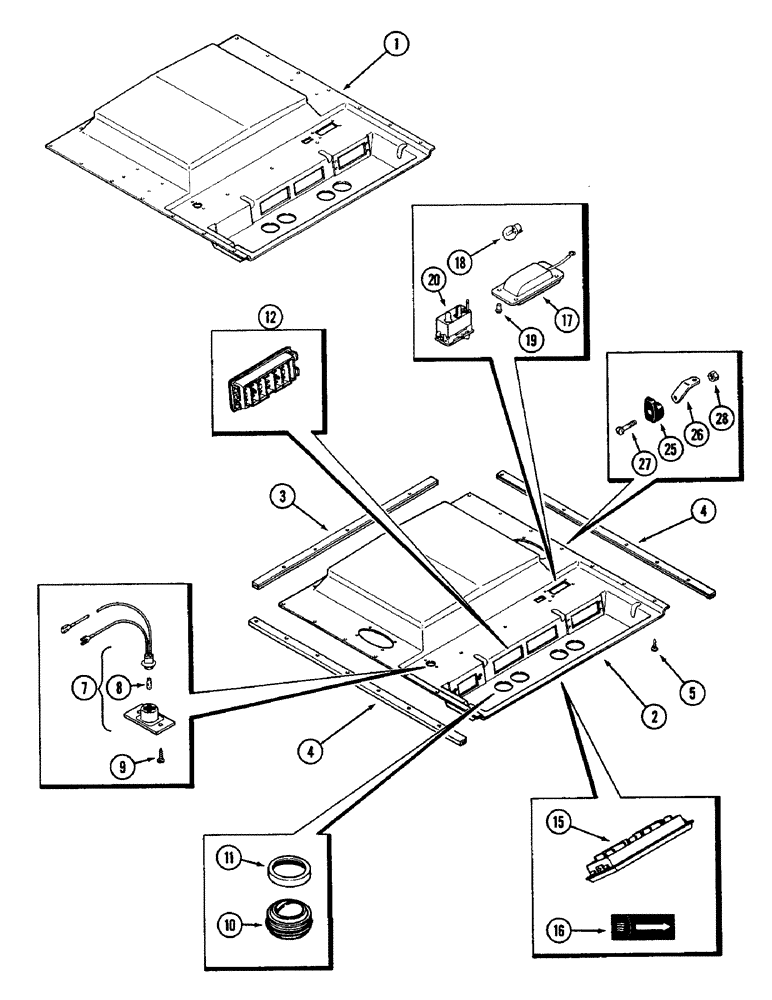

Запчасти Case IH 4690 (9-406) - CAB, HEADLINER AND LOUVERS, PRIOR TO CAB SERIAL NUMBER 12036610 & AFTER (09) - CHASSIS/ATTACHMENTS

1

F64314

LINING

HEADLINER - cab (Without radio cut out)

1шт.

2

F64244

LINING

HEADLINER - cab (With radio cut out)

1шт.

3

F63799

MOLDING

TRIM - rear, headliner

1шт.

4

F63800

MOLDING

TRIM - side, headliner

2шт.

5

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, #10-16 x 3/4" Phillips oval head (With washer)

22шт.

7

F98171

LAMP

ASSEMBLY - console, Includes: Ref. 8

1шт.

8

W10478

LAMP

BULB - lamp (No. 168)

1шт.

9

187-1062

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - self-tapping, #10-24 x 1/2" Phillips

2шт.

10

F64132

GUARD

LOUVER - air deflection, ball type

4шт.

11

F64131

RING

- retainer, louver

4шт.

12

F89948

GUARD

LOUVER - air deflection, retangular

2шт.

15

F98149

GUARD

LOUVER - defroster

1шт.

16

321-3842

DECAL

- defroster

1шт.

17

F89772

LAMP

ASSEMBLY - dome, Includes: Ref. 18

1шт.

18

B50217

BULB

- lamp (No. 93)

1шт.

19

151-526

RIVET,Pop, 1/8" x .337"

4шт.

20

F64130

SWITCH

- dome lamp

1шт.

25

F64352

HOOK

- coat hanger

1шт.

26

F64355

BRACKET

- hook

1шт.

27

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

- 1/4" x 1" NC flat head

1шт.

28

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.
