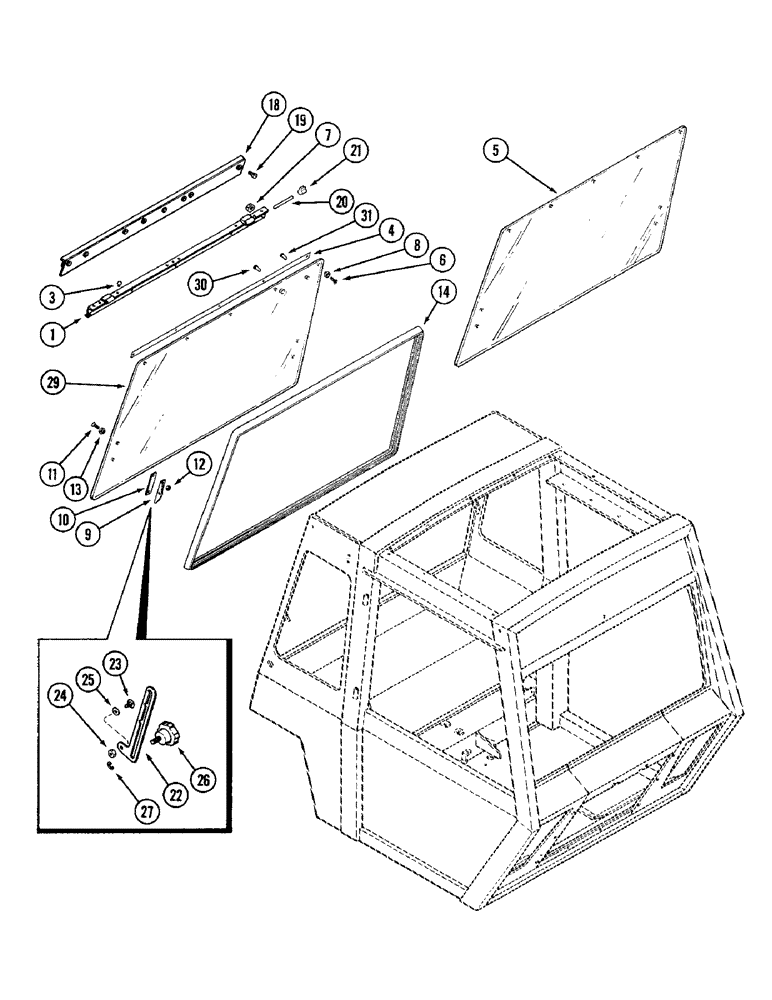

Запчасти Case IH 4690 (9-396) - CAB, REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

F98236

CHANNEL

- pivot, rear window

1шт.

3

151-520

RIVET,Pop, 3/16" x .450"

- pop, 3/16"

1шт.

4

F64139

SPACER

- rubber, Serial Range: channel-glass

1шт.

5

F64135

GLASS

- rear window (See Figure 9-398 and 9-400)

1шт.

6

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- #10-24 x 3/4" oval head

9шт.

7

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

9шт.

8

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- screw

9шт.

9

F64138

BRACKET

- regulator arm

2шт.

10

F64140

SPACER

-, Serial Range: bracket-glass

2шт.

11

179-155

SCREW,Cross Oval Hd, #10 - 24 x 3/4"

- #10-24 x 3/4" oval head

4шт.

12

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.

13

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- screw

4шт.

14

F64499

SEAL

- window edge, 158" (4 013.2 MM) long

1шт.

18

F98235

ANGLE

- window pivot

1шт.

19

163-37

SCREW,Sl Hex Wshr Hd, #10 - 32 x 1", Gr 5

- #10-32 x 1" Phillips pan head (Replaces 182-557 and 182-574)

8шт.

20

A42524

PIN,9.53mm OD x 119.38mm L

- hinge

2шт.

21

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

22

F64106

ARM

- regulator, window opening

2шт.

23

111-215

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G2, Full Thd

BOLT - 5/16" x 3/4" round head square neck

2шт.

24

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - lock, 5/16" NC hex

2шт.

25

195-103

WASHER,5/16"

- 3/8" x 7/8" x 5/64" (9.5 x 22.2 x 1.9 MM)

4шт.

26

F64253

KNOB

- regulator

2шт.

27

T39518

SNAP RING,#25, Ext

Ring, Snap, , knob #25, Ext

2шт.

29

F64687

GLASS

- rear window

1шт.

30

353-404

PLUG,Dome, .500" hole, Nylon

Rear window Dome, .500" hole, Nylon

1шт.

31

353-4

PLUG,Cap, .366" OD

- rear window, #2

1шт.
