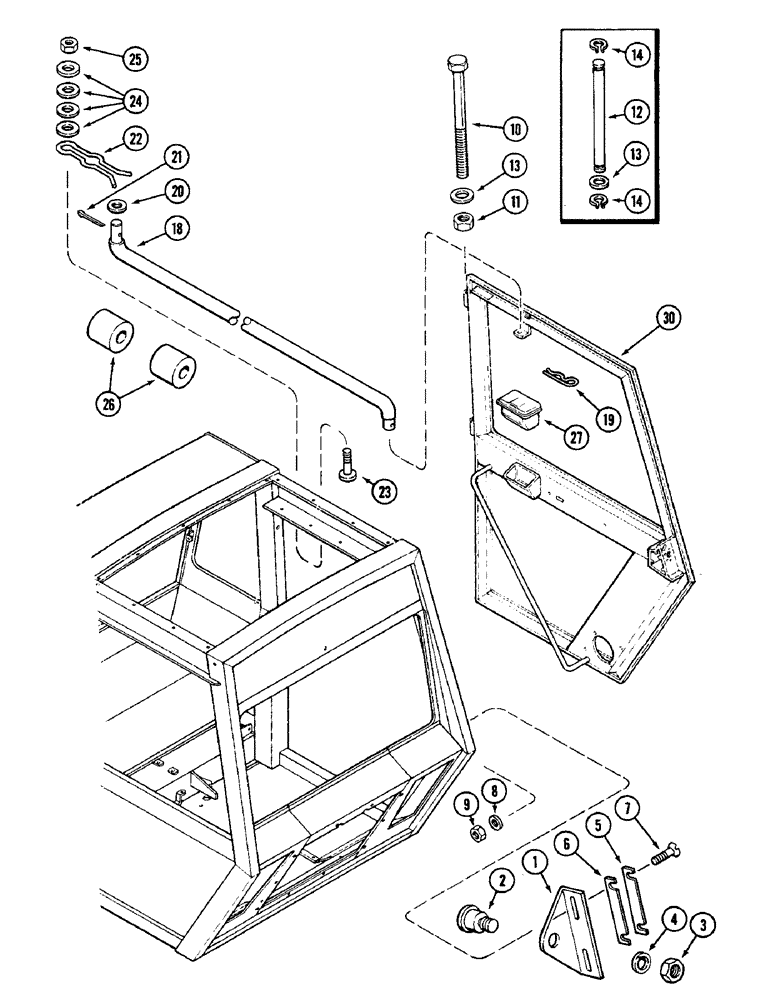

Запчасти Case IH 4690 (9-392) - CAB, DOOR ATTACHING PARTS (09) - CHASSIS/ATTACHMENTS

1

F64301

BRACKET

Mounting, latch striker

1шт.

2

F64345

HARDWARE

STRIKER - door latch

1шт.

3

231-1447

NUT,7/16"-14, GB

1шт.

4

195-2018

WASHER,.469" x 3/4" x .065"

(11.9 x 19.1 x 1.9 mm)

2шт.

5

F63786

SHIM

Striker bracket, 3/64" (1.27 mm)

1шт.

6

F63785

SHIM

Striker bracket, 5/64" (2.03 mm)

1шт.

7

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

2шт.

8

195-518

WASHER,1/4", SAE

(9/32" x 5/8" x 1/16") (7.1 x 15.9 x 1.6 mm)

2шт.

9

86625061

NUT,1/4"-20, GB

2шт.

10

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

(Replaces F63729)

2шт.

11

131-52

NUT,3/8"-16, GC

(Replaces F64046 and A42589)

2шт.

12

F63729

PIN

Door hinge (Order ref. 10 and 11)

2шт.

13

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

Thrust, 25/64" x 3/4" x 1/32" (9.91 x 19.05 x 0.76 mm)

2шт.

14

A42589

SNAP RING,#37, Ext

4шт.

18

F64407

ROD

Door holder, 18" (457.2 mm) long

1шт.

19

136-158

COTTER PIN,Int, 9/64" x .054"

PIN - hair, 1/16"

1шт.

20

195-525

WASHER,3/8", SAE

(13/32" x 13/16" x 1/16") (10.3 x 20.6 x 1.6 mm)

1шт.

21

132-331

COTTER PIN,3/32" x 5/8"

1шт.

22

F64470

COTTER PIN

Hair, rod lock

1шт.

23

182-534

SCREW,Sl Pan Hd, 1/4" - 20 x 1"

1шт.

24

195-102

WASHER,1/4"

5/16" x 3/4" x 1/16" (7.9 x 19.1 x 1.6 mm)

5шт.

25

86625061

NUT,1/4"-20, GB

1шт.

26

F64347

SEAL

BUMPER - rubber, door holder

2шт.

27

F63395

TRAY

Ash

1шт.

30

REF

INSTRUCTION

DOOR ASSEMBLY - cab (See Figure 9-390)

1шт.
