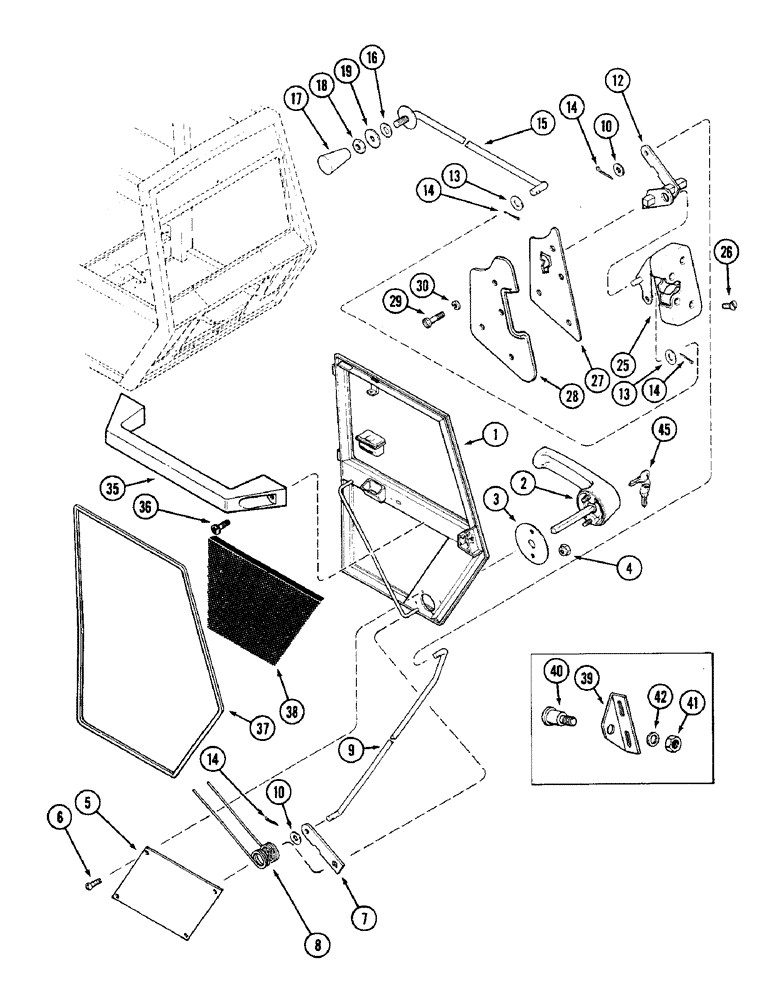

Запчасти Case IH 4690 (9-390) - CAB, DOOR ASSEMBLY (09) - CHASSIS/ATTACHMENTS

F98184

DOOR

ASSEMBLY - cab, complete, Includes: Ref. 1 - 42

1шт.

Order glass from Figure 9-398.

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - cab

1шт.

2

F64311

HANDLE

- outer

1шт.

3

F64342

GASKET,1.6mm Thk

- handle

1шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

5

F89397

COVER

PLATE - access

1шт.

6

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- self-tapping, #10 x 1/2" truss head

4шт.

7

F64289

ARM

- pull rod

1шт.

8

F64431

SPRING

- pull rod

1шт.

9

F64293

ROD

- pull, door latch lower

1шт.

10

195-521

WASHER,5/16", SAE

- 11/32" x 11/16" x 1/16" (8.73 x 17.46 x 1.67 MM)

2шт.

12

F98228

ARM

- rotary latch

1шт.

13

F64384

WASHER

- 17/64" x 9/16" x 1/32" (6.73 x 14.22 x 0.76 MM)

2шт.

14

132-331

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

4шт.

15

F98226

ROD

- pull, door latch upper

1шт.

16

F64384

WASHER

- thrust, 17/64" x 5/8" x 1/32" (6.74 x 15.87 x 0.79 MM) (Replaces F64046)

1шт.

17

F64341

KNOB

- pull

1шт.

18

131-1280

JAM NUT,Jam, 1/4"-20

NUT - lock, 1/4" NC hex

1шт.

19

F64340

WASHER

- shoulder

1шт.

25

F64296

LATCH

- rotary

1шт.

26

182-555

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

- 1/4" x 1-1/4" NC machine

4шт.

27

F98227

COVER

- latch, inner

1шт.

28

F64357

COVER

- latch, outer

1шт.

29

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- 1/4" x 1/2" NC Phillips pan head

4шт.

30

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - lock, 1/4" internal-external Shakeproof

4шт.

35

F64547

HANDLE

- door pull (Replaces F64344)

1шт.

36

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- 1/4" x 3/4" NC Phillips pan head (Replaces 179-157)

2шт.

37

F64773

DOOR SEAL

- weather, 181" (4587.4 MM) long

1шт.

38

F64516

INSULATOR

PADDING - acoustical

1шт.

39

F64301

BRACKET

- mounting, latch striker

1шт.

40

F64345

HARDWARE

STRIKER - door latch

1шт.

41

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

42

195-2018

WASHER,.469" x 3/4" x .065"

- 15/32" x 3/4" x 5/64" (11.9 x 19.1 x 1.9 MM)

2шт.

45

A77313

SET OF 2 KEYS

KEYS - door lock, set of 2 (Used for staring also)

1шт.
