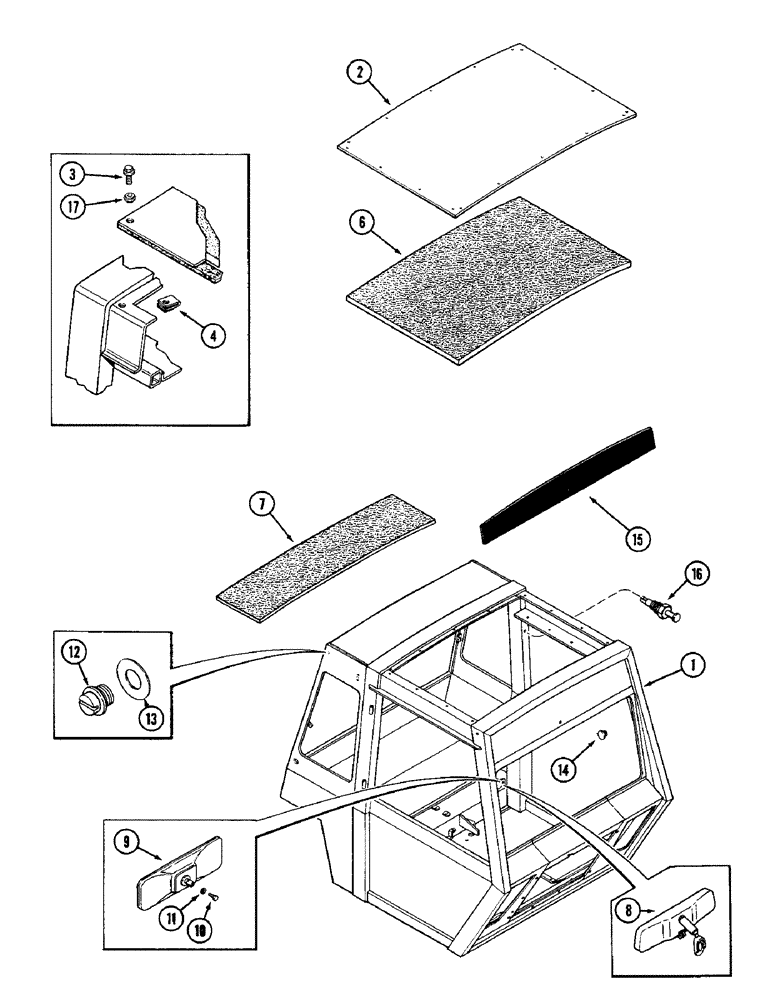

Запчасти Case IH 4690 (9-388) - CAB, FRAME AND ROOF (09) - CHASSIS/ATTACHMENTS

F98288

CAB

ASSEMBLY - with heater, air conditioning and radio speakers (Machinery item)

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSEMBLY - cab

1шт.

2

F64794

ROOF

- cab (Replaces F64316)

1шт.

3

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

- machine, 1/4" x 1" NC hex washer head

18шт.

4

131-617

NUT,Ret, J, 1/4"-20

- speed, 1/4" type J

18шт.

6

F64781

SEAL

FOAM - temperature barrier (Replaces F64430 foam and F64532 seal)

1шт.

7

F63352

FOAM

- rear, temperature barrier

1шт.

8

F64550

MIRROR

- inside, rear view (Cab serial no. 12034360 and after)

1шт.

9

F89695

MIRROR

- inside, rear view (Prior to cab serial no. 12034360)

1шт.

10

163-18

SCREW,Hex, #10 - 24 x 3/8"

- machine, #10-24 x 3/8" hex head

1шт.

11

195-511

WASHER,#10

- 13/64" x 15/32" x 1/16" (5.2 x 11.9 x 1.6 MM)

1шт.

12

353-550

PLUG,Slotted, 1/2"-13

Plastic (Light & lift holes) Slotted, 1/2"-13

4шт.

13

A165395

WASHER,.50mm ID x 1.0mm OD x .060 Thk

- 1/2" x 1" x 1/16" (12.7 x 25.4 x 1.52 MM)

4шт.

14

353-408

PLUG,Dome, .750" hole, Nylon

- 3/4" push type (Without air conditioner)

2шт.

15

A42582

DECAL

- front upper panel

1шт.

16

F63895

SWITCH

- dome light, door opening (See Figure 4-80)

1шт.

17

F64531

SEALING WASHER

WASHER - sealing

18шт.
