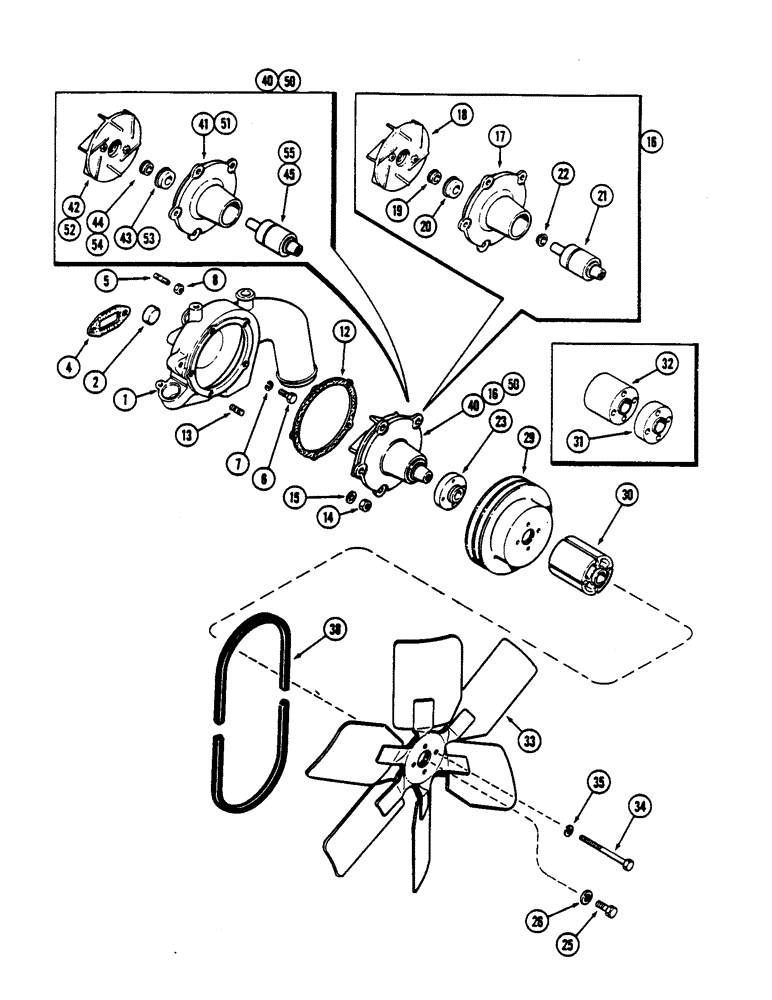

Запчасти Case IH 4690 (2-012) - WATER PUMP AND FAN, WITH TAPPED SHAFT, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A150683

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - 1-3/8" cup type (34.92 MM)

1шт.

4

A58649

GASKET

GASKET -, Serial Range: body-block

1шт.

5

A59077

STUD

STUD - body to block, 3/8" NC x 1-13/16"

2шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

A76656

GASKET

GASKET -, Serial Range: pump-body

1шт.

13

A166044

STUD

STUD - pump to body, 3/8" NC x 1-7/16"

5шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

16

A155181

PUMP

PUMP ASSEMBLY - water (Order A157146), Includes: Ref. 22 For Use on 504BDTI (5 Bolt)

1шт.

16

A48370

REMAN-WATER PUMP

4690, Reman For New P/N's A155181, A155274, A157146 (5 Bolt)

1шт.

16

A48337

CORE-WATER PUMP

Return Part Number

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

18

A76653

SEAL

IMPELLER - water

1шт.

19

A34000

SEAL

SEAL - impeller

1шт.

20

A142499

SEAL

SEAL - pump shaft

1шт.

21

A155177

SHAFT

SHAFT ASSEMBLY - pump (Order A156995), Includes: Ref. 22

1шт.

22

A29440

SLINGER

- water

1шт.

23

A146221

HUB

HUB - fan and pulley

1шт.

25

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

BOLT - 1/2" x 1-1/4" NF hex

1шт.

26

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - hub retainer

1шт.

29

A146982

PULLEY

PULLEY - belt

1шт.

30

A164647

BUSHING

SPACER - fan, 2-27/32" (72.23 MM) (P.I.N. 8858508 and after)

1шт.

31

A61268

BUSHING

SPACER - fan, 1" (25.4 MM) (Prior to P.I.N. 8858508)

1шт.

32

A76912

BUSHING

SPACER - fan, 2-7/8" (72.02 MM) (Order A164647) (Prior to P.I.N. 8858508)

1шт.

33

A149359

FAN

FAN - 24" (609.6 MM)

1шт.

34

13-684

BOLT,Hex, 3/8" - 16 x 5-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 5 1/4", G5

4шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

38

A76745

SET OF BELTS,0.69" W

Drive, Fan and pump

1шт.

40

A155274

PUMP, WATER

PUMP ASSEMBLY - water (Order A157146), Includes: Ref. 41 - 45 For Use on 504BDTI (5 Bolt)

1шт.

40

A48370

REMAN-WATER PUMP

4690 Reman For New P/N's A155274 & A157146, 5 Bolt

1шт.

40

A48337

CORE-WATER PUMP

Return Part Number

1шт.

41

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

42

A155273

IMPELLER

IMPELLER - water

1шт.

43

A142499

SEAL

SEAL - pump shaft

1шт.

44

A34000

SEAL

SEAT - impeller

1шт.

45

A156995

BEARING

SHAFT ASSEMBLY - bearing

1шт.

50

A157145

PUMP, WATER

PUMP ASSEMBLY - water, new, with plastic impeller, Includes: Ref. 51 - 55 For Use On 504BDT (4 Bolt)

1шт.

50

A48334

PUMP ASSEMBLY - water, remanufactured (For A157145), Includes: Ref. 51 - 55

1шт.

50

A48335

CORE-WATER PUMP

Return Part Number - use this part no. to return water pump core for credit

1шт.

50

1342818C1R

REMAN-WATER PUMP

Reman For New P/N's A157145 & 199352A1, For Use on 504BDT (4 Bolt)

1шт.

50

A48335

CORE-WATER PUMP

Return Part Number

1шт.

50

A157146

PUMP

PUMP ASSEMBLY - water, new, with cast iron impeller, Includes: Ref. 51 - 55 (5 Bolt)

1шт.

50

A48370

REMAN-WATER PUMP

Remanufactured, WATER PUMP (5 Bolt)

1шт.

50

A48337

CORE-WATER PUMP

Return Part Number

1шт.

51

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

A152126

IMPELLER

IMPELLER - water, cast iron

1шт.

52

A62975

IMPELLER

IMPELLER - water, plastic (Order A152126)

1шт.

53

A142499

SEAL

SEAL - pump shaft

1шт.

54

A34000

SEAL

SEAT - impeller

1шт.

55

A156995

BEARING

SHAFT ASSEMBLY - bearing

1шт.
