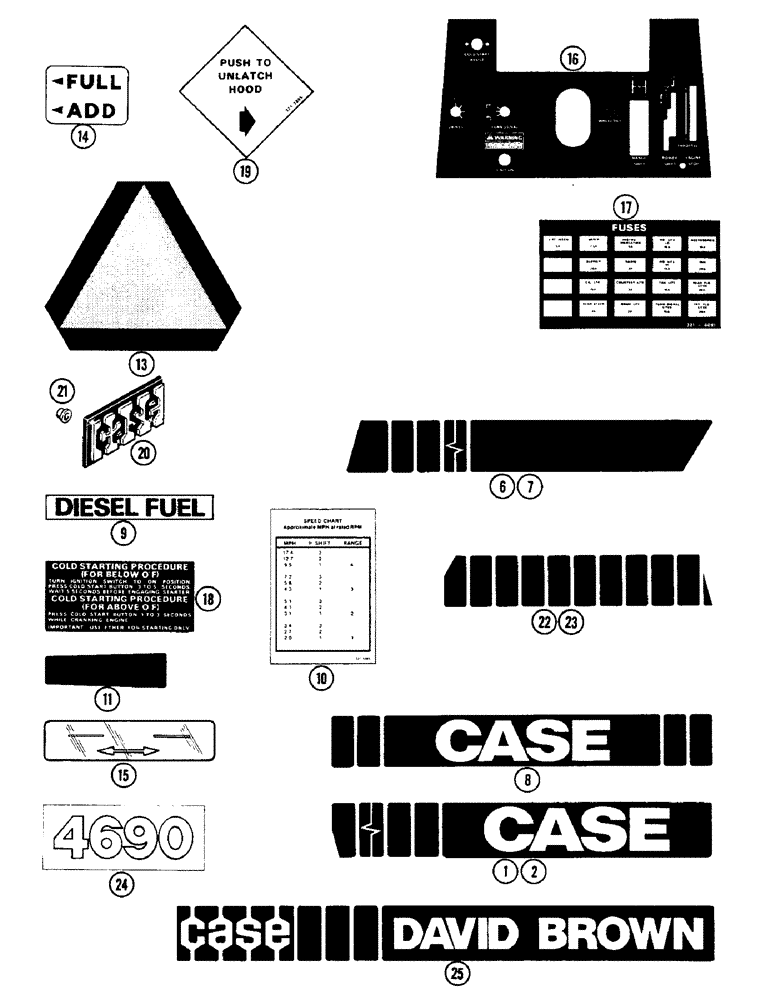

Запчасти Case IH 4690 (9-382) - TRACTOR DECALS (09) - CHASSIS/ATTACHMENTS

A46506

DECAL

KIT - complete tractor (Replaces A46450), Includes: Ref. 1 - 21

1шт.

1

321-4960

DECAL

- RH hood side

1шт.

2

321-4961

DECAL

- LH hood side

1шт.

6

321-4964

DECAL

- RH cab side

1шт.

7

321-4965

DECAL

- LH cab side

1шт.

8

321-4959

DECAL

- CASE, cab rear

1шт.

9

321-230

DECAL

- Diesel fuel, fuel tank

1шт.

10

321-5265

DECAL

- speed chart

1шт.

11

321-4142

DECAL

- hood sight

1шт.

13

321-4311

DECAL

- slow moving vehicle

1шт.

14

321-2470

DECAL

- transmission oil level

1шт.

15

321-5319

DECAL

- steering control lock out, on console

1шт.

16

321-5435

DECAL

- instrument panel

1шт.

17

321-6081

DECAL

- fuse location

1шт.

18

321-2946

DECAL

- cold start procedure

1шт.

19

321-3985

DECAL

- hood latch unlock

1шт.

20

321-4739

EMBLEM

MEDALLION - front grille

1шт.

21

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - 1/4" self-threading

2шт.

A143220

DECAL

KIT - safety decals (Not shown. See Figure 9-384)

1шт.

22

321-4982

DECAL

- rear hood, RH side (Replaces 321-4962)

1шт.

23

321-4983

DECAL

- rear hood, LH side (Replaces 321-4963)

1шт.

24

321-4967

DECAL

- 4690, side of cab

2шт.

25

321-5266

DECAL

- Case-David Brown (Export only)

2шт.
