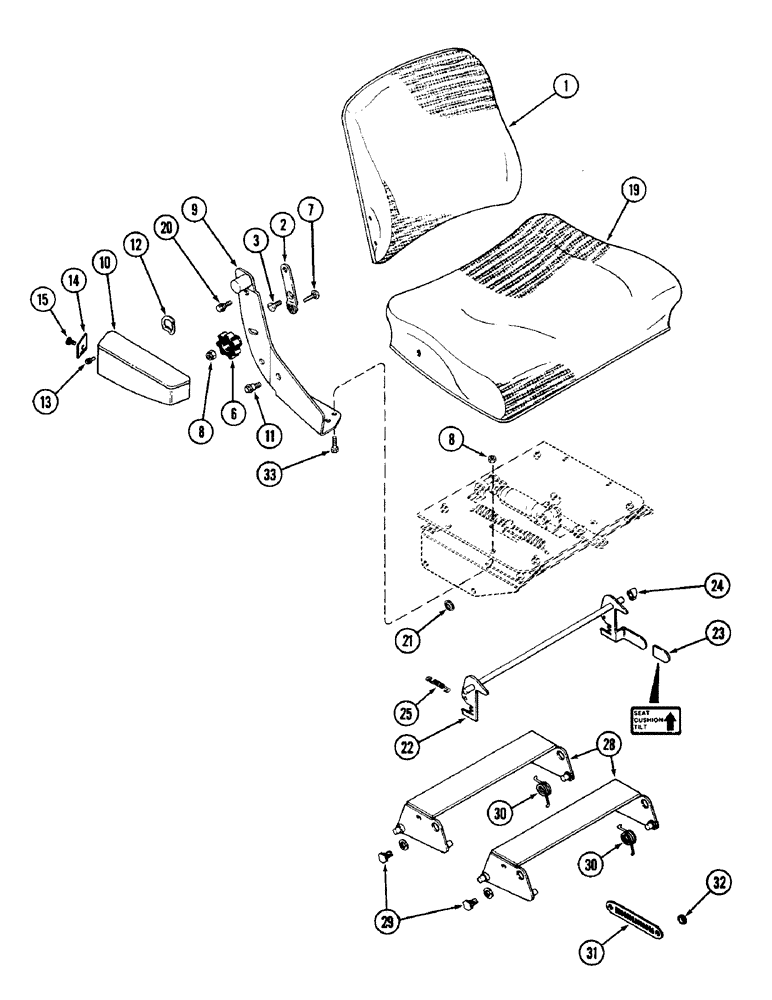

Запчасти Case IH 4690 (9-381C) - SEAT, CLOTH WITH ISOLATOR ATTACHMENT (09) - CHASSIS/ATTACHMENTS

1989979C1

SEAT

AND SUSPENSION ASSEMBLY - operator (Replaces A165372), Includes: Ref. 1 - 33

1шт.

A48342

BACKREST

ASSEMBLY - seat, Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - backrest (Order A48342)

1шт.

2

A47343

NOZZLE CAP

LINK - backrest tilt

2шт.

3

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

- 3/8" x 1" NC flat head

2шт.

6

A45487

BUTTON

KNOB - tilt backrest

2шт.

7

A45527

CARRIAGE BOLT

- 3/8" x 1-1/2" NC round head square neck

2шт.

8

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - 3/8" NC hex jam lock

6шт.

9

A48344

BRACKET

- armrest, right

1шт.

9

A48345

BRACKET

- armrest, left

1шт.

10

A45489

ARMREST

- seat, right

1шт.

10

A45488

ARMREST

- seat, left

1шт.

11

A48347

BOLT

- 1/2" x 1-1/4" NC hex, special

2шт.

12

A47352

WASHER

- wave

2шт.

13

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW - armrest, 1/4" x 1/2" NC socket head

2шт.

14

A45584

COVER

PLATE - armrest, right

1шт.

14

A45583

PLATE

COVER PLATE - armrest, left

1шт.

15

187-330

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - #10 x 5/8" pan head, self tapping

2шт.

19

A48183

SEAT

CUSHION - seat

1шт.

20

A48346

BOLT

- 3/8" x 1-1/8" NC hex, special

2шт.

21

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, , Seat fastener Push, 1/2"

4шт.

22

A47346

LEVER

- seat assembly tilt

1шт.

23

A47347

CAP

- tilt lever

1шт.

24

A45482

BUSHING

SPACER - tilt lever shaft

2шт.

25

NLS

NO LONGER SERVICED

- tilt lever shaft tension

2шт.

28

A47379

LINK

- seat mounting cross

2шт.

29

A45473

STEP BOLT

BOLT - 1/2" x 3/4" NC hex shoulder

4шт.

30

A47384

SPRING

- torsion

2шт.

31

A47383

LINK

- connecting

2шт.

32

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, , Connecting link to cross link Push, 1/2"

4шт.

33

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.
