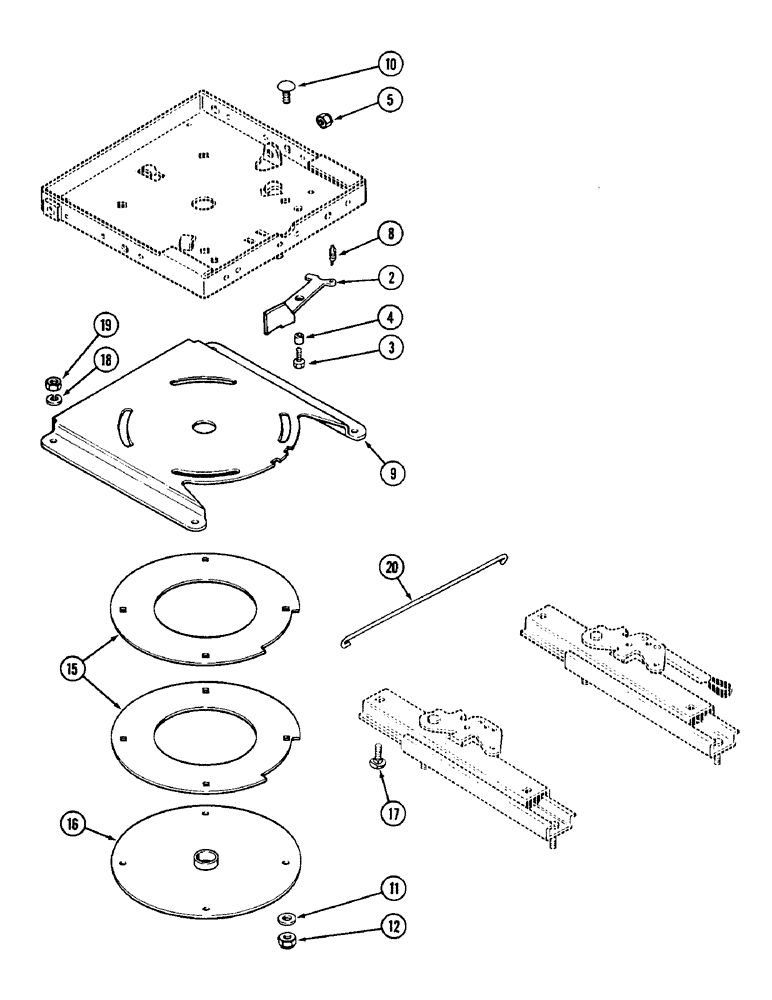

Запчасти Case IH 4690 (9-381A) - SEAT SWIVEL KIT (09) - CHASSIS/ATTACHMENTS

A165295

KIT - seat swivel (Machinery item), Includes: Ref. 2 - 20

1шт.

2

A48225

HANDLE

- swivel

1шт.

3

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

4

A48224

BUSHING

SPACER - swivel handle

1шт.

5

129-749

NUT

- 3/8" NC weld

1шт.

8

A45521

SPRING

- swivel handle

1шт.

9

A47378

PLATE

- swivel handle

1шт.

10

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8" x 1-1/4" NC round head square neck (Grade 2)

4шт.

11

195-25

WASHER,3/8"

- 13/32" x 3/16" x 1/16" (10.32 x 20.64 x 1.59 MM)

4шт.

12

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8" NC hex, lock

4шт.

15

A45514

DISC

BEARING - swivel plate

2шт.

16

A45526

PLATE

- bottom swivel

1шт.

17

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

4шт.

18

192-45

LOCK WASHER

- 5/16" lock

4шт.

19

129-770

NUT,3/8"-16, G5

- 5/16" NC hex

4шт.

20

A45524

ROD

- handle connecting

1шт.
