Запчасти Case IH 4690 (2-010) - WATER PUMP AND FAN, WITH KEYWAY SHAFT, 504BDTI DIESEL ENGINE (02) - ENGINE

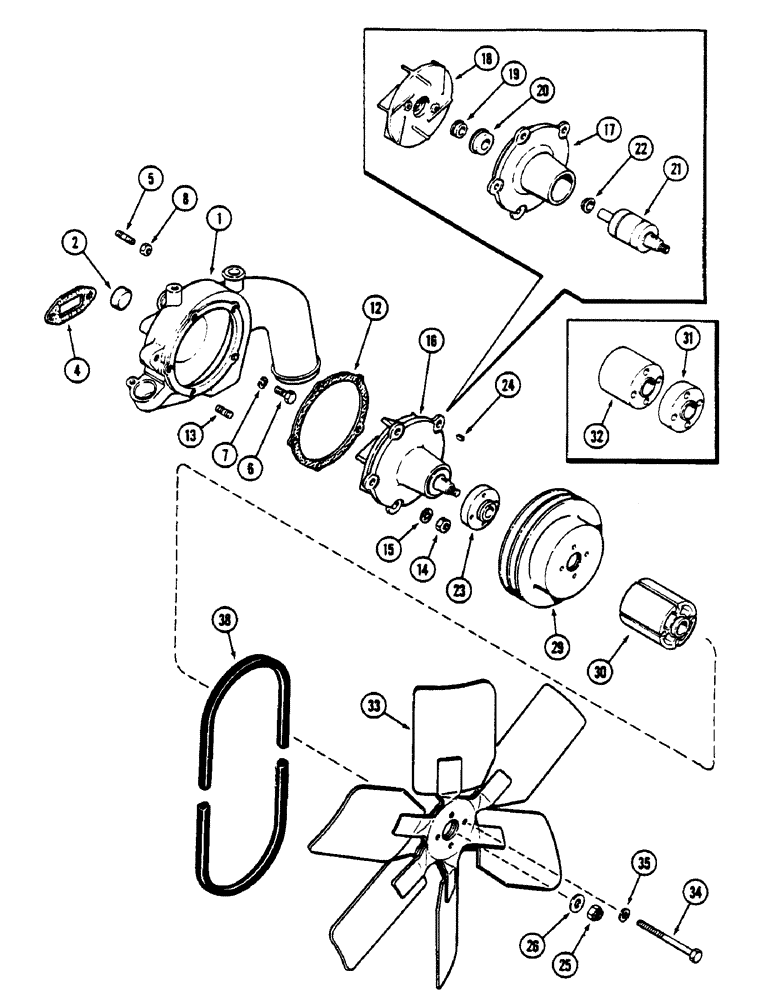

Схема запчастей Case IH 4690 - (2-010) - WATER PUMP AND FAN, WITH KEYWAY SHAFT, 504BDTI DIESEL ENGINE (02) - ENGINE
18
34
31
34
13
14
17
15
20
2
19
26
32
18
30
8
4
29
22
23
6
1
21
33
12
35
5
24
25
7

Артикул

Название

Примечание

Количество

1

A150683

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8" cup type (34.92 MM)

1шт.

4

A58649

GASKET

-, Serial Range: body-block

1шт.

5

A59077

STUD

- body to block, 3/8" NC x 1-13/16"

2шт.

6

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

12

A76656

GASKET

-, Serial Range: pump-body

1шт.

13

A62234

STUD

- pump to body, 3/8" NC x 1-5/16"

5шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

15

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

5шт.

16

A154522

PUMP

ASSEMBLY - water (Order A155181, 14-820 and A155047 Figure 2-012), Includes: Ref. 17 - 22

1шт.

Ref #16A - 1342818C1 Reman Water Pump

1шт.

17

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

18

A76653

SEAL

IMPELLER - water

1шт.

19

A34000

SEAL

- impeller

1шт.

20

A142499

SEAL

- pump shaft

1шт.

21

A58643

SHAFT

ASSEMBLY - (Order A155177, 14-820 and A155047 Figure 2-012)

1шт.

22

Q829325

BUSHING

- water

1шт.

23

A146221

HUB

- fan and pulley

1шт.

24

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Hub #9, 3/16" x 3/4", HT

1шт.

25

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, 1/2"-20, GB

1шт.

26

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER - hub retainer

1шт.

29

A146982

PULLEY

- belt

1шт.

30

A161679

BUSHING

SPACER - fan, 3-7/8" (98.4 MM) (Replaces A61268 and A76912) (Used P.I.N. 8858508 and after)

1шт.

31

A61268

BUSHING

SPACER - fan, 1" (25.4 MM) (Used prior to P.I.N. 8858508)

1шт.

32

A76912

BUSHING

SPACER - fan, 2-7/8" (72.02 MM) thick (Used prior to P.I.N. 8858508)

1шт.

33

A149359

FAN

- 24" (609.6 MM)

1шт.

34

13-684

BOLT,Hex, 3/8" - 16 x 5-1/4", Gr 5

4шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

38

A76745

SET OF BELTS,0.69" W

SET OF 2 BELTS , Drive, Fan and pump 0.69" W

1шт.

Выбрано товаров: 31
