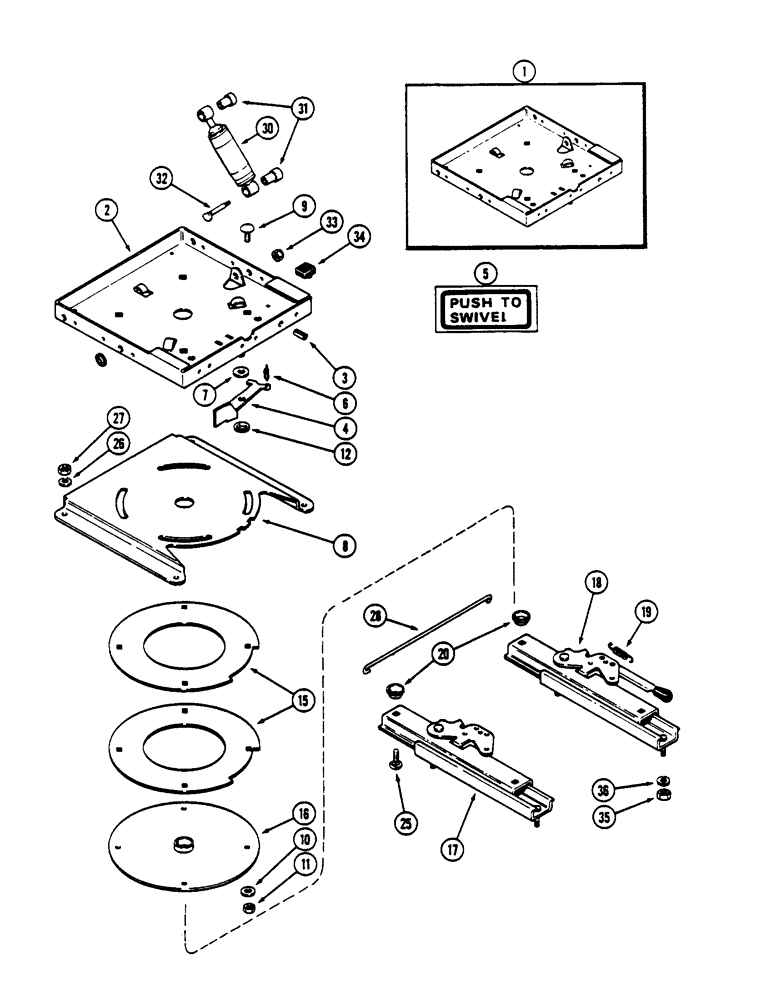

Запчасти Case IH 4690 (9-372) - SWIVEL SEAT ASSEMBLY, SWIVEL BASE AND MOUNTING (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A161408
SEAT
AND SUSPENSION ASSEMBLY - operator's (Continued from Figure 9-370) (Order A163314), Includes: Ref. 1 - 34
1шт.
1
A45525
BASE
- swivel (Order A47758, A47762 and 131-407)
1шт.
2
A47758
BASE
- swivel (Replaces A45525)
1шт.
3
138-134
LOCK PIN,1/4" x 1", Slotted
PIN, , Ride adjustment pointer 1/4" x 1", Slotted
1шт.
4
A45520
LATCH
- swivel
1шт.
5
A47779
DECAL
- push to swivel (Replaces 321-3791)
1шт.
6
A45521
SPRING
- swivel latch
1шт.
7
A45519
WASHER
- spacer, swivel plate
1шт.
8
A47378
PLATE
- swivel latch
1шт.
9
111-319
CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2
4шт.
10
195-25
WASHER,3/8"
- 13/32" x 13/16" x 1/16" (10.3 x 20.6 x 1.6 MM)
4шт.
11
131-6
LOCK NUT,3/8"-16, GC
NUT - lock, 3/8" NC hex
4шт.
12
131-425
PUSH-ON NUT,Push, 1/2"
NUT, LOCK, Push, 1/2"
1шт.
15
A45514
DISC
BEARING - swivel plate
2шт.
16
A45526
PLATE
- swivel, bottom
1шт.
17
A45523
SLIDE
ASSEMBLY - RH, seat mounting (Includes spring), Includes: Ref. 19
1шт.
18
A45522
SLIDE
ASSEMBLY - LH, seat mounting (Includes lever and spring), Includes: Ref. 19
1шт.
19
L35503
SPRING
- latch return (Replaces A45060)
1шт.
20
NSS
NOT SOLD SEPARAT
SPACER - slide (Supplied with slides)
4шт.
25
111-237
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5
BOLT, CARRIAGE, , Slide to base (Replaces A47172) Short NK, 5/16"-18 x 1", G5
4шт.
26
92-5
LOCK WASHER,5/16"
4шт.
27
9635082
NUT,5/16" - 18, Gr 5
4шт.
28
A45524
ROD
- latch connecting
1шт.
30
A45503
SHOCK ABSORBER
- seat
1шт.
31
A45501
BUSHING,0.504" ID x 0.87" OD x 1.417"
BEARING - shock absorber
2шт.
32
A45056
STEP BOLT
BOLT - shoulder
1шт.
33
131-203
LOCK NUT,3/8"-16, GB, LH
NUT - lock, 3/8" NC hex
1шт.
34
A45054
BUMPER,Neoprene
- rubber
2шт.
35
9635082
NUT,5/16" - 18, Gr 5
4шт.
36
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
4шт.
Выбрано товаров: 30
