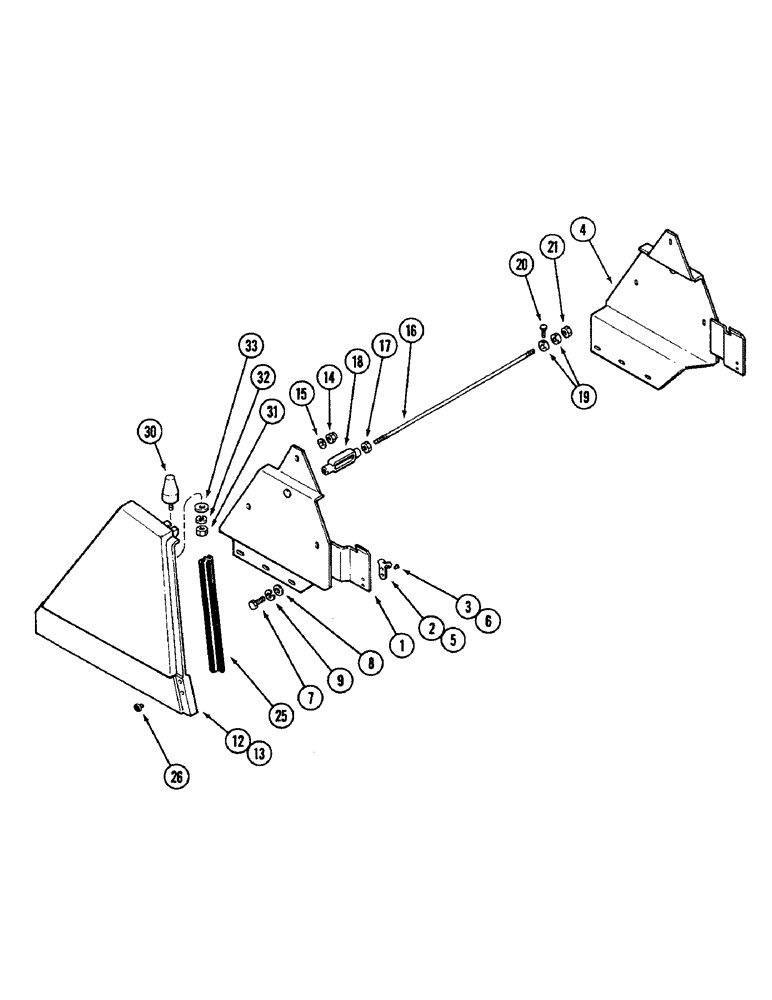

Запчасти Case IH 4690 (9-364) - REAR SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A151592

BRACKET

ASSEMBLY - RH support, rear hood, Includes: Ref. 2 and 3

1шт.

2

L47158

BRACKET

KEEPER - hood latch

1шт.

3

151-554

RIVET

- 3/16" x 1/4" button head

2шт.

4

A151595

BRACKET

ASSEMBLY - LH support, rear hood, Includes: Ref. 5 and 6

1шт.

5

L47158

BRACKET

KEEPER - hood latch

1шт.

6

151-554

RIVET

- 3/16" x 1/4" button head

2шт.

7

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

8

195-104

WASHER,3/8"

- 7/16" x 1" x 5/64" (11.1 x 25.4 x 1.9 MM)

6шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

12

A160394

PANEL

- RH rear

1шт.

13

A160395

PANEL

- LH rear (RH shown)

1шт.

14

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4" NC hex

6шт.

15

195-102

WASHER,1/4"

- 5/16" 3/4" x 1/16" (7.9 x 19.1 x 1.6 mm)

6шт.

16

A149856

ROD

- hood adjustment

1шт.

17

129-540

NUT,Jam, 1/2"-13, G5, LH

- 1/2" NC LH thread

1шт.

18

F36877

TURNBUCKLE

- adjusting

1шт.

19

D37570

COLLAR

- lock

2шт.

20

85-410

SET SCREW,Sq Hd, 1/4"-20 x 5/8"

SCREW - set, 1/4" x 5/8" NC square head

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

RH thread 1/2"-13, G5

1шт.

25

A162798

CLUTCH FACING

SEAL - side panel (Replaces A149862) (Order A151423 and, Serial Range: cut-length)

2шт.

26

A161780

BUMPER

- rubber, hood (Replaces A144246)

4шт.

30

A149863

GUIDE

- top hood

2шт.

31

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

32

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

33

195-102

WASHER,1/4"

- 5/16" x 3/4" x 1/16" (7.9 x 19.1 x 1.6 mm)

2шт.
