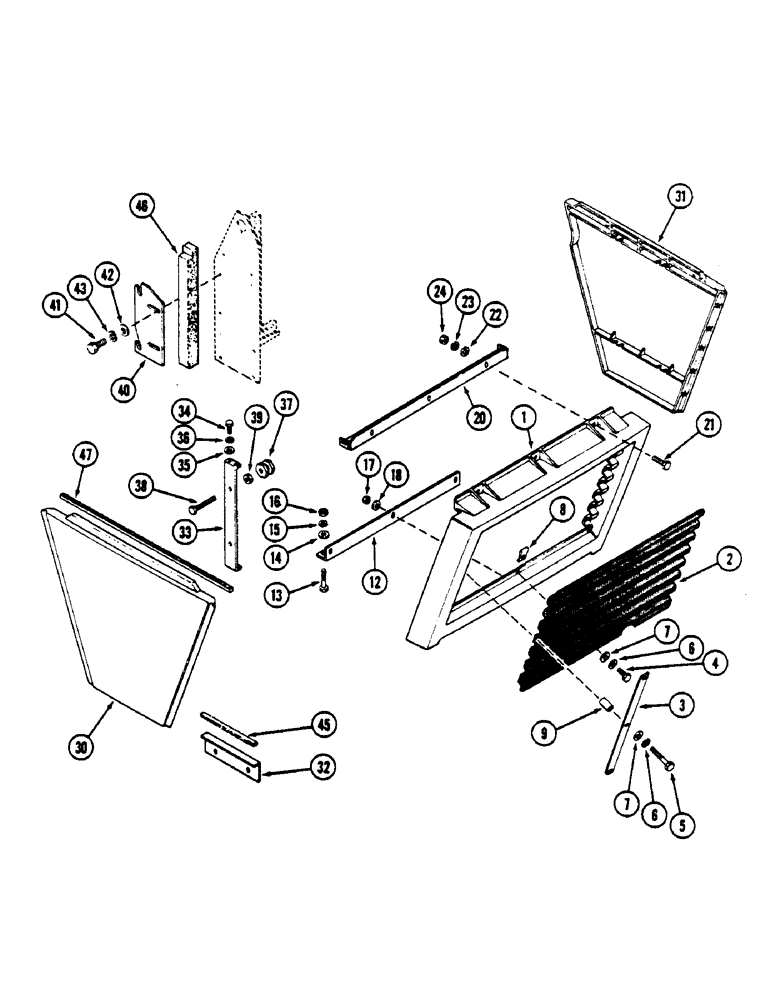

Запчасти Case IH 4690 (9-358) - LOWER GRILLE AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A152808

GUARD

GRILLE - lower

1шт.

2

A162564

SCREEN

- lower grille (Replaces A152915)

1шт.

3

A149603

RETAINER

- screen

2шт.

4

113-29

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

- 1/4" x 3/4" NC hex (Grade 5)

6шт.

5

113-14

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Hex, 1/4"- 20 x 2", G5

2шт.

6

192-44

LOCK WASHER

- lock, 1/4"

8шт.

7

195-102

WASHER,1/4"

- 5/16" x 3/4" x 1/16" (7.9 x 19.1 x 1.6 mm)

8шт.

8

131-603

NUT,Tinn, U, 1/4"-20

- 1/4" Tinnerman U-type

8шт.

9

L10264

BUSHING

SPACER - center bolt

2шт.

12

A152958

BRACKET

ANGLE - mounting, lower grille bottom

1шт.

13

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(Angle to frame) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

14

195-104

WASHER,3/8"

- 7/16" x 1" x 5/64" (11.1 x 25.4 x 1.9 MM)

2шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

17

193-1006

NUT,Keps, w/LW, 1/4"-20

- lock, 1/4" NC hex Keps (Grille to angle)

3шт.

189

195-102

WASHER,1/4"

- 5/16" x 3/4" x 1/16" (7.9 x 19.1 x 1.6 mm)

3шт.

20

A161285

BRACKET

ANGLE - mounting, lower grille top

1шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

7шт.

22

195-104

WASHER,3/8"

- 7/16" x 1" x 5/64" (11.1 x 25.4 x 1.9 MM)

6шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

7шт.

30

A152809

PANEL

- RH front

1шт.

31

A152810

PANEL

- LH front

1шт.

32

A151389

SUPPORT

- side panel

2шт.

33

A151388

STRAP

-, Serial Range: panel-bracket

2шт.

34

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

8шт.

35

195-518

WASHER,1/4", SAE

- 9/32" x 5/8" x 5/64" (7.1 x 15.9 x 1.9 mm)

1шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

37

A147282

SPOOL

- lock, Serial Range: panel-bracket

4шт.

38

A160078

BOLT

- adjuster

4шт.

39

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

40

A151447

BRACKET

- panel mounting

2шт.

41

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

42

195-103

WASHER,5/16"

- 3/8" x 7/8" x 5/64" (9.5 x 22.2 x 1.9 MM)

4шт.

43

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

45

A149861

SEAL

-, Serial Range: panel-support

2шт.

46

A149924

SEAL

FOAM - seal, panel to radiator support

2шт.

47

A160519

SEAL

- wing panel, upper

2шт.
