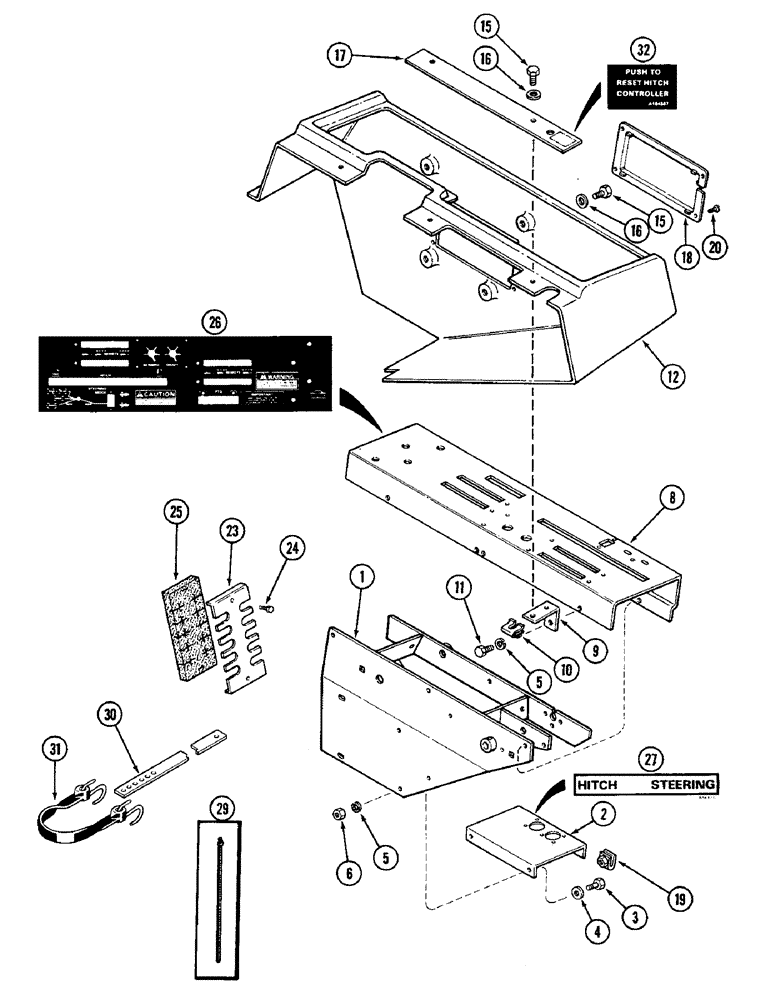

Запчасти Case IH 4690 (9-356) - OPERATORS CONSOLE, P.I.N. 8860450 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A162342

CONSOLE - control

1шт.

2

A162360

BRACKET

- lower mounting, cowl

1шт.

3

113-221

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

4шт.

4

195-103

WASHER,5/16"

- flat, 3/8" x 7/8" x 5/64" (9.5 x 22.2 x 1.9 MM)

4шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

8

A161938

COVER

- top console

1шт.

9

A162593

BRACKET

- upper mounting, cowling

3шт.

10

131-97

SPRING NUT,Tinn, U, 5/16"-18

- 5/16" Tinnerman "U" type

5шт.

11

187-1030

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - 5/16" x 3/4" hex head self tap

6шт.

12

A161970

GUARD

COWL - console

1шт.

15

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

16

195-2038

WASHER,13/32" x 7/8" x .035"

- flat, 13/32" x 7/8" x 5/64" (10.3 x 22.2 x 1.9 MM)

8шт.

17

A162277

COVER

- access, hitch control

1шт.

18

F64386

COVER

- access, steering control box

1шт.

19

131-855

NUT,Tinn, #6

- speed, Tinnerman "J" type

4шт.

20

B88595

SCREW

- #6 x 1/2" slotted pan head

4шт.

Ref #20A - 131-618 Nut for the B88595 Screw

1шт.

23

A151092

PLATE

- rear, cable guide

1шт.

24

187-1059

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

SCREW - 1/4" x 1-1/2" hex head self tap

2шт.

25

A151093

FOAM

- sealing, cable entry

1шт.

26

321-6264

DECAL

- console

1шт.

27

A164212

DECAL

- hitch and steering

1шт.

29

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie, nylon

2шт.

30

A161222

STRAP

- cable tie down

1шт.

31

A147815

STRAP

ASSEMBLY - cable tie down

1шт.

32

A164557

DECAL

- hitch reset

1шт.
