Запчасти Case IH 4690 (2-008) - WATER FILTER, 504BDTI DIESEL ENGINE (02) - ENGINE

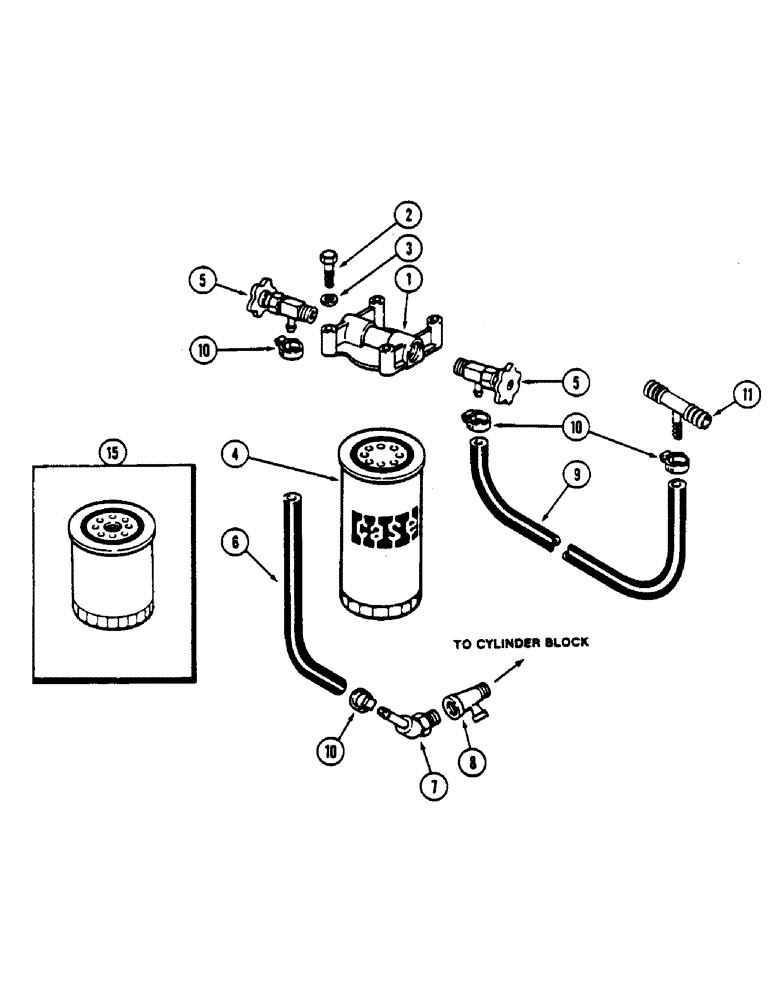

Схема запчастей Case IH 4690 - (2-008) - WATER FILTER, 504BDTI DIESEL ENGINE (02) - ENGINE
5
10
7
4
9
10
4
2
3
5
6
10
11
1
15

Артикул

Название

Примечание

Количество

1

A152821

HEAD

- filter and valve

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

4

A152819

FILTER

CARTRIDGE - water filter, charged, 7-1/2" (190.5 MM) high

1шт.

5

A154051

COCK, DRAIN

VALVE - water

2шт.

6

A154770

HOSE,0.38" ID x 6.10", SAE 20R3 PER SAE J20

9.60 mm ID x 154.90 mm, SAE 20R3 - Valve to Block

1шт.

7

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 1/4" PT x 3/8" hose 45 degrees

1шт.

8

221-1691

TEE,Street, 1/4" NPT

CONNECTOR - branch, 1/4" x 1/4" x 1/4" (In block)

1шт.

9

A161557

HOSE,9.60 mm ID x 558.80 mm, SAE 20R3

- Valve to heater hose (Replaces A154053) 9.60 mm ID x 558.80 mm, SAE 20R3

1шт.

10

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" x 1-1/16" (14.29 x 26.99 MM)

6шт.

11

A154014

CONNECTOR, ELEC

CONNECTOR - branch, heater hose split

1шт.

15

A151931

FILTER

CARTRIDGE - water filter, service, 4-13/64" (106.8 MM) high

1шт.

A46400

KIT

- water filter and conditioner (Includes ref. 1 through 11)

1шт.

Выбрано товаров: 13
