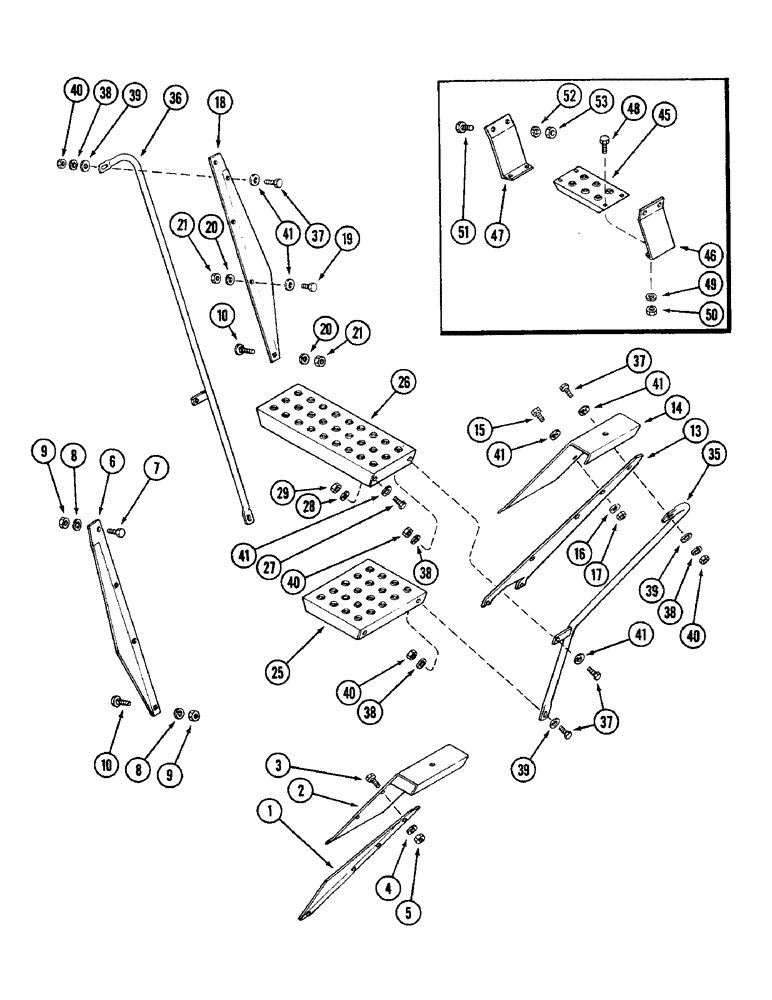

Запчасти Case IH 4690 (9-350) - WHEEL GUARDS, STEPS AND HAND RAILS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A149678
GUARD
- mud, RH front
1шт.
2
A149675
GUARD
- wheel, RH front
1шт.
4
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
5шт.
5
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
5шт.
6
A140560
GUARD
- mud, RH rear
1шт.
8
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
9
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
10
111-360
CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5
2шт.
13
A161381
GUARD
- mud, LH front
1шт.
14
A149676
GUARD
- wheel, LH front
1шт.
16
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
17
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
18
A149650
GUARD
- mud, LH rear
1шт.
20
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
21
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
3шт.
25
A149656
LADDER
STEP - lower
1шт.
26
A149657
LADDER
STEP - upper
1шт.
28
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
29
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
4шт.
35
A149670
RAIL
- hand, LH front
1шт.
36
A149654
RAIL
- hand, LH rear
1шт.
37
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
6шт.
38
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
6шт.
39
195-25
WASHER,3/8"
- 13/32" x 13/16" x 1/16" (10.3 x 20.6 x 1.6 MM)
6шт.
40
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
6шт.
41
195-525
WASHER,3/8", SAE
- 13/32" x 13/16" x 1/16" (10.3 x 20.6 x 1.6 MM)
6шт.
A77387
STEP ATTACHMENT - extension, auxiliary (Machine item), Includes: Ref. 45 - 53
2шт.
45
A162024
STEP
- auxiliary
1шт.
46
A162026
PLATE
SIDE PLATE - step, front
1шт.
47
A162025
PANEL
SIDE PLATE - step, rear
1шт.
48
113-2
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
4шт.
49
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
50
7770
NUT,Hex, 1/4 - 20, Cl 5
1/4"-20, G5
4шт.
51
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
2шт.
52
92-6
LOCK WASHER,3/8"
2шт.
53
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
Выбрано товаров: 41
