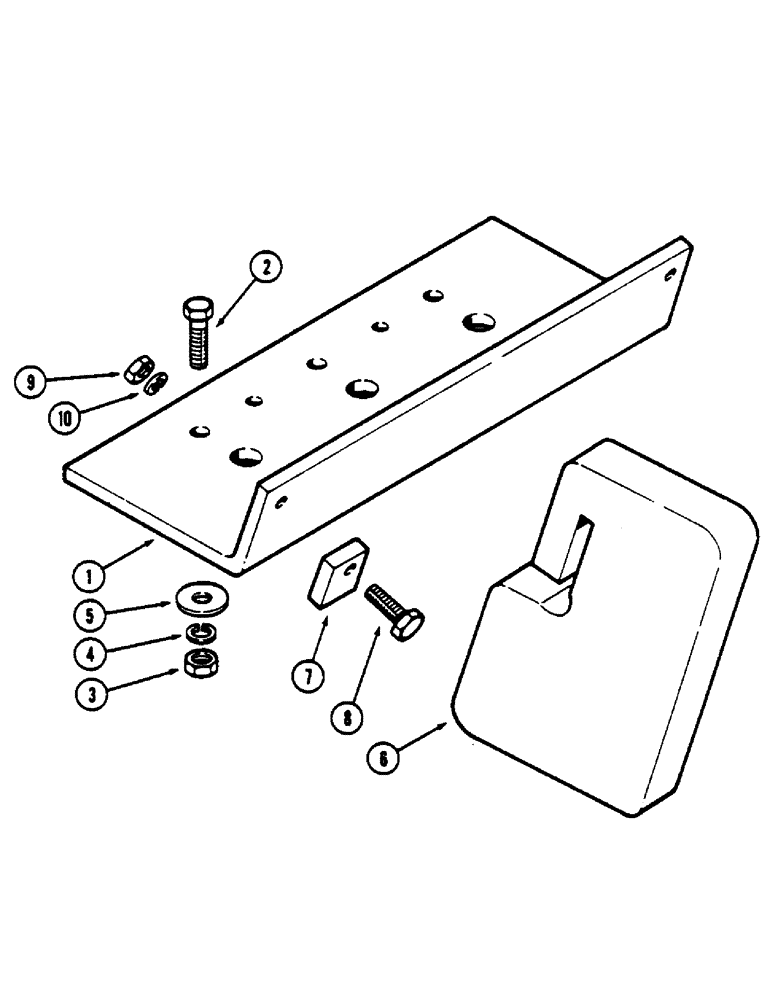

Запчасти Case IH 4690 (9-344) - FRONT END WEIGHTS (09) - CHASSIS/ATTACHMENTS

A142308

ATTACHMENT - front end weight (Machine item), Includes: Ref. 1 - 10

1шт.

1

A148867

PLATE

- mounting, front end weight

1шт.

2

113-712

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- 3/4" x 2-1/2" NC hex (Grade 5)

2шт.

3

129-108

NUT,3/4"-10, G5

3шт.

4

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

5

A31266

WASHER

- mounting bolt

3шт.

6

A148862

COUNTERWEIGHT

WEIGHT - front end, 85 lbs. (187.4 KG) (Machine item)

10шт.

7

A142230

STOP

- weight

2шт.

8

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

9

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.
