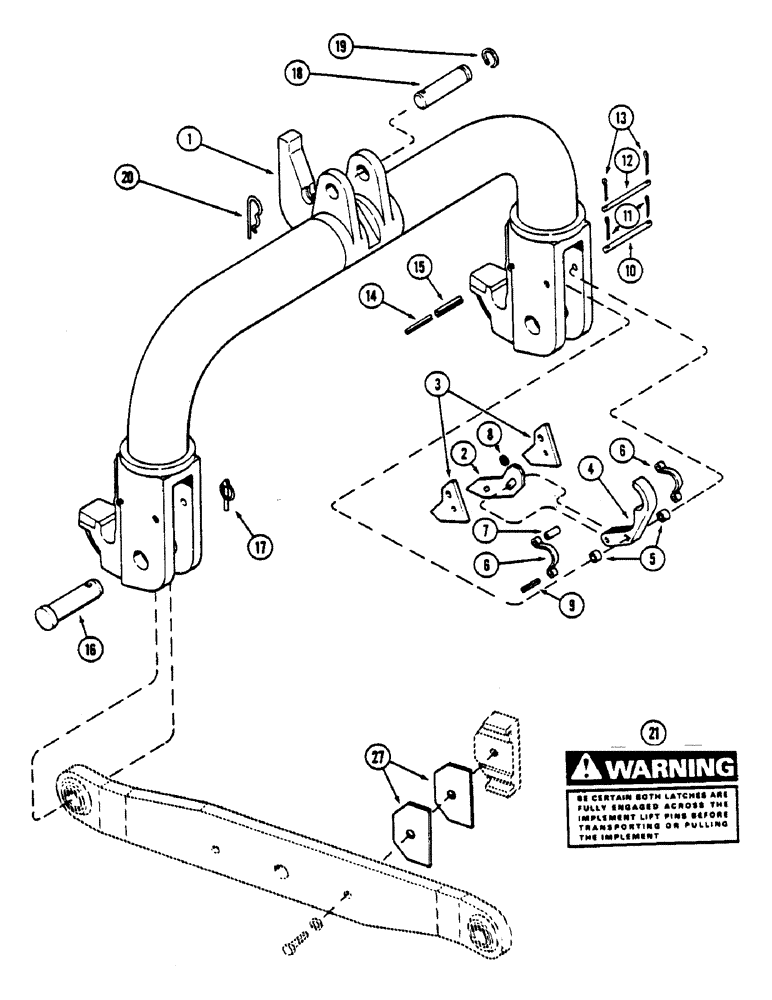

Запчасти Case IH 4690 (9-342) - QUICK HITCH COUPLER (09) - CHASSIS/ATTACHMENTS

A67166

ATTACHMENT

- coupler (Machine item), Includes: Ref. 1 - 22

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - hitch coupler (Order A67166)

1шт.

2

L10088

PLATE

ASSEMBLY - actuator release)

2шт.

3

L10177

PLATE

- implement lock

4шт.

4

L10175

HANDLE

- release

2шт.

5

T30946

BUSHING

SPACER - handle

4шт.

6

L10263

SPRING

- actuator

4шт.

7

L10264

BUSHING

SPACER - actuator

2шт.

8

A29701

BUSHING

SPACER- release activator

2шт.

9

138-176

LOCK PIN,3/8" x 1 3/4", Slotted

Pin, 3/8" x 1 3/4", Slotted

2шт.

10

L10262

PIN

- pivot

2шт.

11

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

4шт.

12

L10261

PIN

- spring anchor

2шт.

13

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

14

138-163

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, 5/16" x 2 1/2", Slotted

2шт.

15

138-208

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2 1/2", Slotted

2шт.

16

A75028

PIN,36.45mm OD x 138mm L

- lower hitch

2шт.

17

A64204

PIN

- klik

2шт.

18

A76285

PIN

- swivel (Replaces A56401)

1шт.

19

17406

RING

- snap

1шт.

20

A56393

PIN

- cotter hair

1шт.

21

321-3339

DECAL

- warning

2шт.

22

A64331

BUSHING

SPACER - sway block

4шт.
