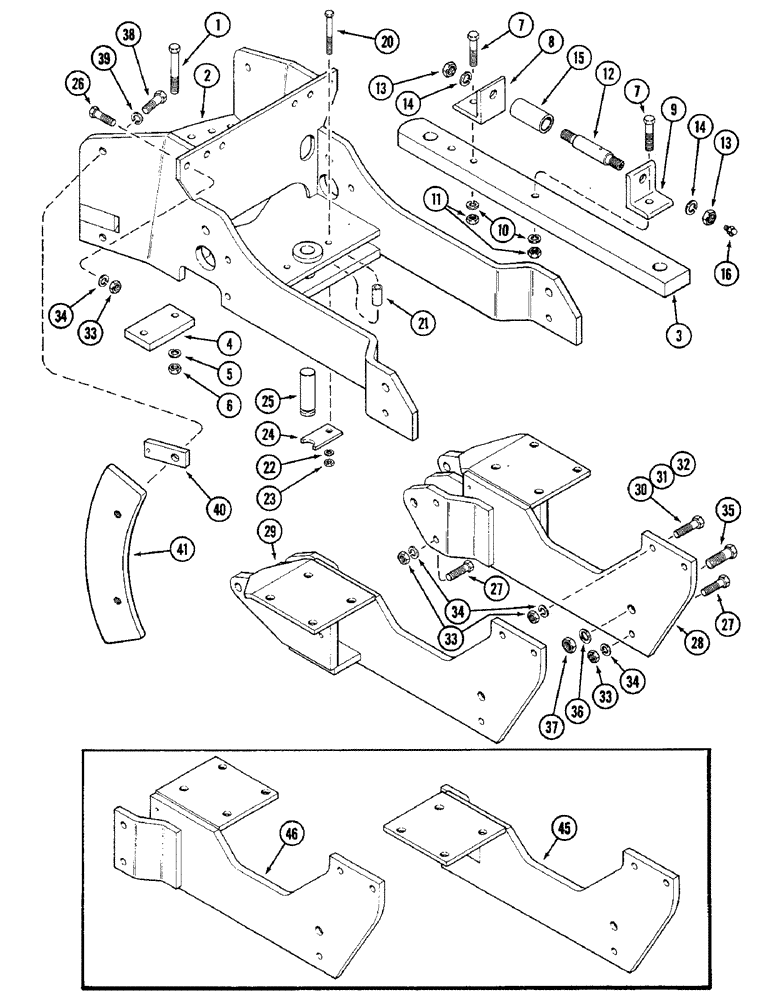

Запчасти Case IH 4690 (9-336) - DRAWBAR AND SUPPORTS, PRIOR TO P.I.N. 8860450 (09) - CHASSIS/ATTACHMENTS

1

113-725

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4" x 5-1/2" NC hex (Grade 5)

2шт.

2

A77171

SUPPORT

- drawbar

1шт.

3

A160305

DRAWBAR, SWINGING

DRAWBAR - towing

1шт.

4

T38563

PLATE

- fixed drawbar

1шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

129-108

NUT,3/4"-10, G5

2шт.

7

113-717

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

8

A75458

BRACKET

ANGLE - rear, roller pin

1шт.

9

T38568

BRACKET

ANGLE - front, roller pin

1шт.

10

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

11

129-108

NUT,3/4"-10, G5

2шт.

12

T38572

PIN

- roller

1шт.

13

129-110

NUT,1"-8, G5

2шт.

14

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

15

A145831

BUSHING

- roller

1шт.

16

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

20

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

2шт.

21

A75459

BUSHING

SPACER - drawbar

2шт.

22

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

24

T38570

LOCK

- pin

1шт.

25

T38569

PIN,38.1mm OD x 127mm L

- front pivot, drawbar

1шт.

26

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

Support to trunnion Hex, 3/4"-10 x 1 3/4", G5

6шт.

27

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4" x 2-1/2" NC hex (Grade 5)

6шт.

28

A75245

WASHER

BRACE - LH, drawbar and hitch support (See ref. 45)

1шт.

29

A75424

BRACE

- RH, drawbar and hitch support (See ref. 46)

1шт.

30

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4" x 2-3/4" NC hex (Grade 5) (Used without PTO)

4шт.

31

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4" x 2-3/4" NC hex (Grade 5) (Used with PTO)

3шт.

32

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Used with PTO) Hex, 3/4"-10 x 3", G5

1шт.

33

129-108

NUT,3/4"-10, G5

1шт.

34

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

35

113-917

BOLT,Hex, 1" - 8 x 2-3/4", Gr 5, Full Thd

2шт.

36

192-31

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

37

129-110

NUT,1"-8, G5

2шт.

38

113-705

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

- 3/4" x 2-1/2" NC hex (Grade 5)

4шт.

39

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

40

A160440

BUSHING

SPACER - sway block

4шт.

41

A75394

BLOCK

- sway, draft-arm

2шт.

45

A75470

BRACE

- RH, drawbar (Without hitch)

1шт.

46

A75471

BRACKET

BRACE - LH, drawbar (Without hitch)

1шт.
