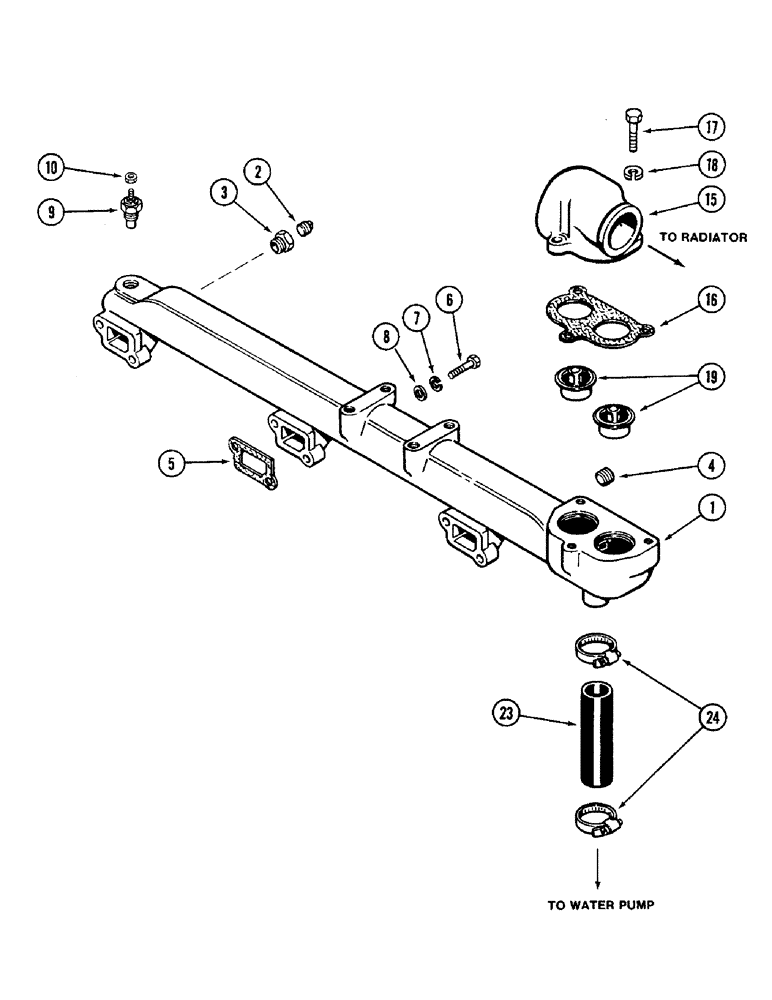

Запчасти Case IH 4690 (2-006) - WATER MANIFOLD AND THERMOSTAT, 504BDTI DIESEL ENGINE (02) - ENGINE

1

A152742

MANIFOLD

- water

1шт.

2

221-1843

PLUG

- 3/8" PT square head

1шт.

3

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2" PT to 3/8" PT

1шт.

4

221-1844

PLUG,Hex Soc, 1/2"-14

- 1/2" PT hex socket

2шт.

5

A58637

MANIFOLD GASKET

-, Serial Range: manifold-head

3шт.

6

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

7

92-6

LOCK WASHER,3/8"

6шт.

8

195-25

WASHER,3/8"

- 13/32" x 13/16" x 1/16" (10.3 x 20.6 x 1.6 MM)

6шт.

9

D65446

SENDER UNIT

SENDER - water temperature (1/2" PT)

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex Keps

1шт.

15

A60689

HOUSING

- thermostat

1шт.

16

A58639

GASKET

-, Serial Range: housing-manifold

1шт.

17

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

18

92-6

LOCK WASHER,3/8"

3шт.

19

A57641

THERMOSTAT

- 180 degrees F (82 degrees C)

2шт.

23

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water pump, 1-1/4" ID x 5-5/16" (31.75 x 134.94 MM)

1шт.

24

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 x 44.45 MM)

2шт.
