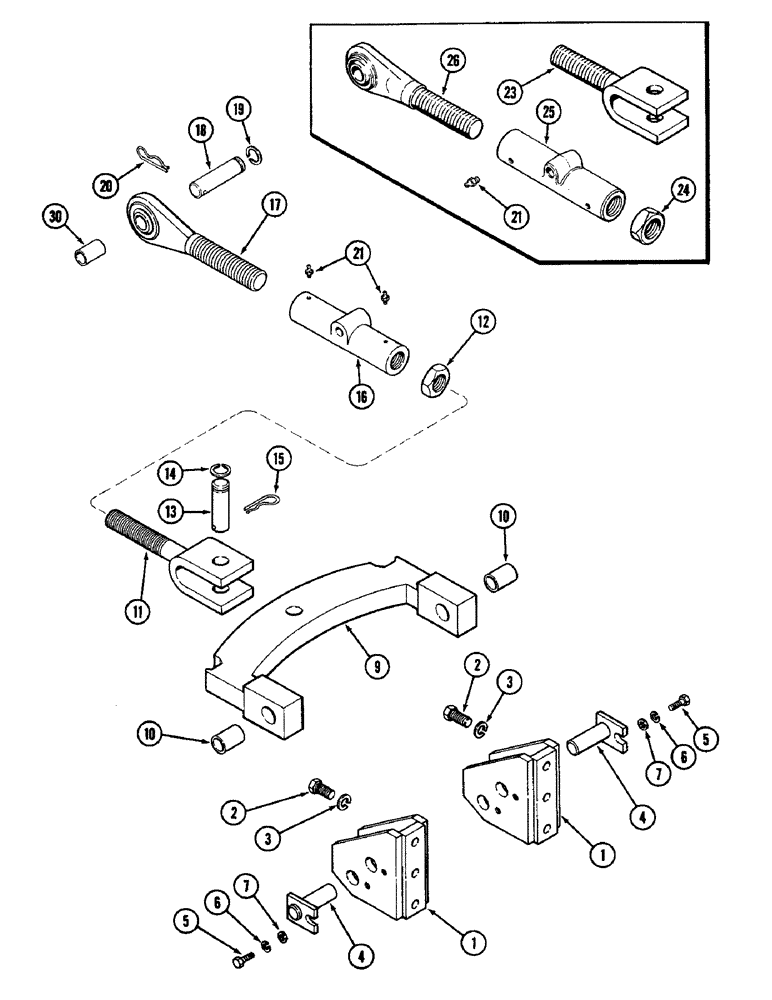

Запчасти Case IH 4690 (9-332) - THREE POINT HITCH, ADJUSTING TURNBUCKLE, PRIOR TO P.I.N. 8860450 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A146714

BRACKET

- pivot

2шт.

Ref #1 - Use A169510 L.H. Arm & A169509 R.H. Arm

1шт.

2

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

6шт.

3

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

4

A138905

PIN

- pivot, mounting plate

2шт.

5

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- lock, 1/2" x 1-1/4" NC hex (Grade 5)

2шт.

6

A148908

SPACER

- pivot lock (Replaces 192-23)

2шт.

7

L30674

WASHER

- spacer, 1/2" x 7/8" x 1/8" (12.7 x 22.22. 3.17 MM)

2шт.

9

A162318

PLATE

ASSEMBLY - turnbuckle mounting (Replaces A148269), Includes: Ref. 10

1шт.

10

A24633

BUSHING,31.7mm ID x 38.18mm OD x 51.16mm L

- pin pivot

2шт.

11

A138907

CLEVIS

- turnbuckle (1-1/2" NF RH thread) (See ref. 23

1шт.

12

129-174

JAM NUT,Hex, 1 1/2" - 12, Gr 5

NUT - jam, 1/2" NF hex (See ref. 24)

1шт.

13

A76283

PIN

- clevis, 1-1/4" x 4-1/4" (31.75 x 132.95 MM)

1шт.

14

17406

RING

- snap

1шт.

15

A56393

PIN

- cotter

1шт.

16

A160905

TURNBUCKLE

- adjusting (1-1/2" thread) (Replaces A75964) (See ref. 25)

1шт.

17

A141051

ROD

- third point (1-1/2" LH thread) (See ref. 26)

1шт.

18

A76285

PIN

- third point, 1-1/4" x 4-7/8" (31.75 x 123.82 MM)

1шт.

19

17406

RING

- snap

1шт.

20

A56393

PIN

- cotter

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - lube, 1/8" PT straight

2шт.

23

A161040

CLEVIS

- turnbuckle (1-3/4" RH thread) (Heavy duty)

1шт.

24

129-160

NUT,Jam, 1 1/2"-12, G5, Hvy

- jam, 1-3/4" NF hex

1шт.

25

A161049

TURNBUCKLE

- adjusting (1-3/4" thread) (Heavy duty)

1шт.

26

A161059

ROD

- third point (1-3/4" LH thread) (Heavy duty)

1шт.

30

L10462

BUSHING

- hitch pin (Category II)

1шт.
