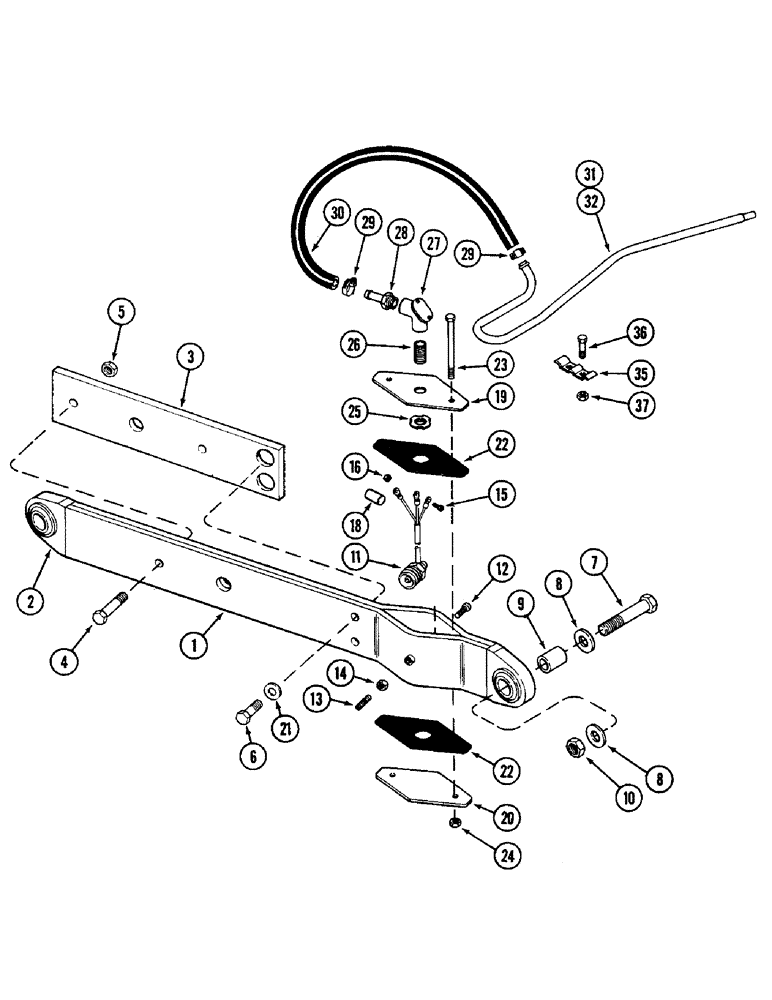

Запчасти Case IH 4690 (9-330) - THREE POINT HITCH, DRAFT ARMS AND SENSOR, P.I.N. 8860450 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A164412

ARM

ASSEMBLY - draft, R.H. and L.H., Includes: Ref. 2

2шт.

2

A56411

ARM, LIFT

END ASSEMBLY - draft arm

2шт.

3

A165274

PLATE ASSY.

PLATE - stiffener, draft arm (Replaces A164403)

2шт.

4

26-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

- 3/4" x 2-3/4" NC hex head

2шт.

5

131-197

LOCK NUT,3/4"-10, GC

NUT - 3/4" NC hex, lock

2шт.

6

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4" x 2-1/2" NC hex head, Grade 8

4шт.

7

114-904

BOLT,Hex, 1" - 14 x 5", Gr 8

- arm pivot, 1" x 5" NF hex head

2шт.

8

A139817

WASHER

- pivot bolt

4шт.

9

T38561

BUSHING

- pivot, draft arm

2шт.

10

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

NUT - lock, 1" NF hex

2шт.

11

A165422

TRANSMITTER

SENSOR ASSEMBLY - draft arm (Replaces A161760)

2шт.

12

165-183

SCREW,5/16" - 18 x 1 1/4"

- 5/16 - 18 x 1-1/4" hex socket head

2шт.

13

A164769

SET SCREW,Hex, 3/8" - 24 x 1 1/2"

- set, 3/8" x 1-1/2" NF special

2шт.

14

86585245

SPECIAL NUT,JAM, 5/8" - 18

- jam, 3/8" NC hex

2шт.

15

182-583

SCREW,Slotted Pan Hd, #6-32 x 3/16"

- #6-32 x 3/16" brass pan head machine

6шт.

16

129-15

NUT,#6-32

6шт.

18

A163365

SLEEVE

- shrink, wire connectors (Order A161254)

6шт.

19

A162509

COVER

- top, sensor

2шт.

20

A162561

COVER

- bottom, sensor

2шт.

21

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- 25/32" x 1-3/8" x 9/64" hardened (19.84 x 34.92 x 3.57 MM)

4шт.

22

A164618

GASKET

- sensor cover (Replaces A162562)

4шт.

23

113-258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

4шт.

24

230-4216

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" NC hex

4шт.

25

223-202

NUT

- lock, conduit 3/4

2шт.

26

221-1211

FITTING

NIPPLE - pipe, 3/4" PT x 1-3/8"

2шт.

27

A149530

FITTING

ELBOW ASSEMBLY - conduit

2шт.

28

217-381

FITTING,5/8" Hose Barb x 3/4" Male NPTF

CONNECTOR - straight, 3/4" NF thread x 5/8" hose end

2шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 13/16" (30.2 MM) to 1-3/4" (44.5 MM)

4шт.

30

L78623

HOSE

- sensor harness, 29" (736.6 MM) long (Order A42610)

2шт.

31

A162507

CONDUIT

- sensor harness, R.H.

1шт.

32

A162506

CONDUIT

- sensor harness, L.H.

1шт.

35

A60862

CLAMP

- conduit

2шт.

36

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- 5/16" x 1-3/4" NC hex head

4шт.

37

131-173

NUT,5/16"-18, GA

- lock, 5/16" NC hex

4шт.
