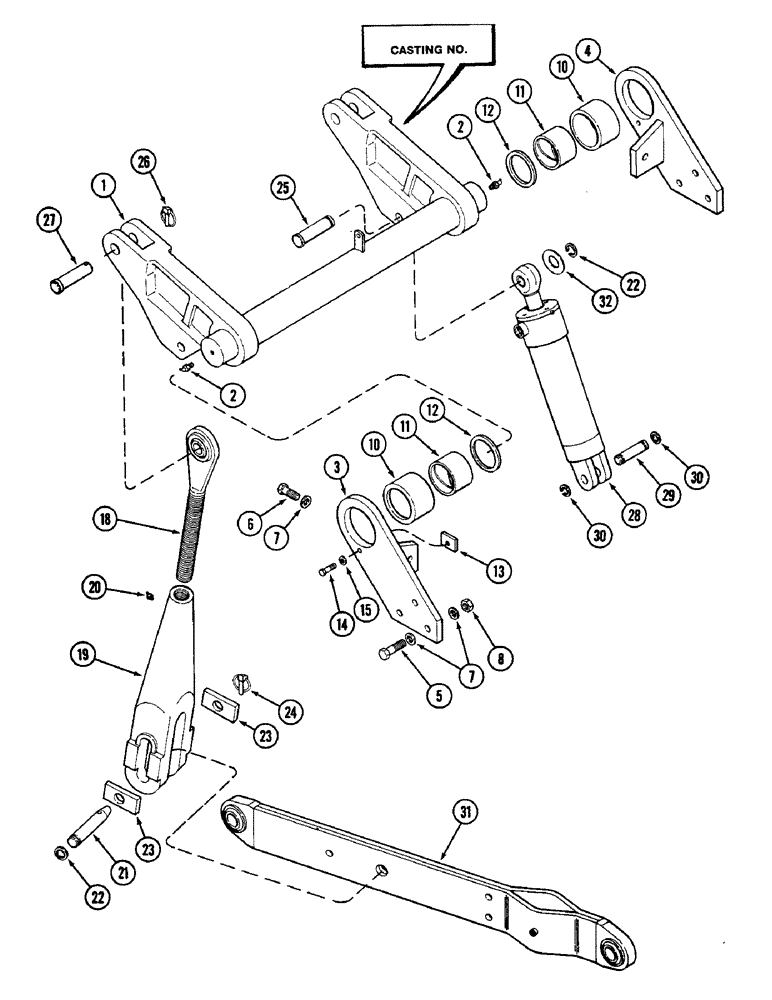

Запчасти Case IH 4690 (9-328) - THREE POINT HITCH, LIFT LINKS AND ROCKSHAFT, P.I.N. 8860450 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

A164413

ROCKSHAFT

Hitch (Stamped A164411 on arm)

1шт.

1

A164276

ROCKSHAFT

Hitch (Stamped A164275 on arm)

1шт.

For repairs order 1-A164413 rockshaft, 2-A163277 pin, 2-A165314 pin, 2-17406 ring, and 2-195-559 washer.

1шт.

2

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

3

A146765

SUPPORT

SPARE PART Bearing, rockshaft, RH

1шт.

4

A146766

SUPPORT

SPARE PART Bearing, rockshaft, LH

1шт.

5

28-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 8

6шт.

6

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

2шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Support bolt

14шт.

8

131-186

LOCK NUT,3/4"-16, GB

(Esna)

6шт.

10

A161892

BEARING ASSY

ASSY - bearing rockshaft, Incl. Ref. 11

2шт.

11

A162505

BUSHING

Rockshaft

1шт.

12

A32804

WASHER

Thrust, rockshaft

2шт.

13

A146768

KEY

Retainer, housing

2шт.

14

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

15

192-23

LOCK WASHER,1/2"

2шт.

18

A141049

ROD

ASSY - lift link

2шт.

19

A75969

LINK

Lift, clevis

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

21

A76286

PIN,31.6mm OD x 193.04mm L

Lift link, lower

2шт.

22

17406

RING

Snap, link pin

2шт.

23

A63515

PLATE

Stop, lift link

4шт.

24

A64204

PIN

ASSY - klik, locking

2шт.

25

A165314

PIN

Pivot, hitch cylinder upper

2шт.

Ref #25 - (1 1/4" Diameter)

1шт.

26

A30338

PIN

ASSY - klik, locking

2шт.

27

A163277

PIN

Lift link, upper (Replaces A76284)

2шт.

28

REF

INSTRUCTION

CYLINDER ASSEMBLY - hitch (See Figure 8-324)

2шт.

29

A76281

PIN

Pivot, hitch cylinder lower

2шт.

30

A12667

RING

Snap, lower pin

4шт.

31

REF

INSTRUCTION

ARM ASSEMBLY - draft (See Figure 9-330)

2шт.

32

195-2125

WASHER,1 5/16" x 2" x .109"

(M33.34 ID x 50.8 OD x 2.78 Thk)

2шт.
