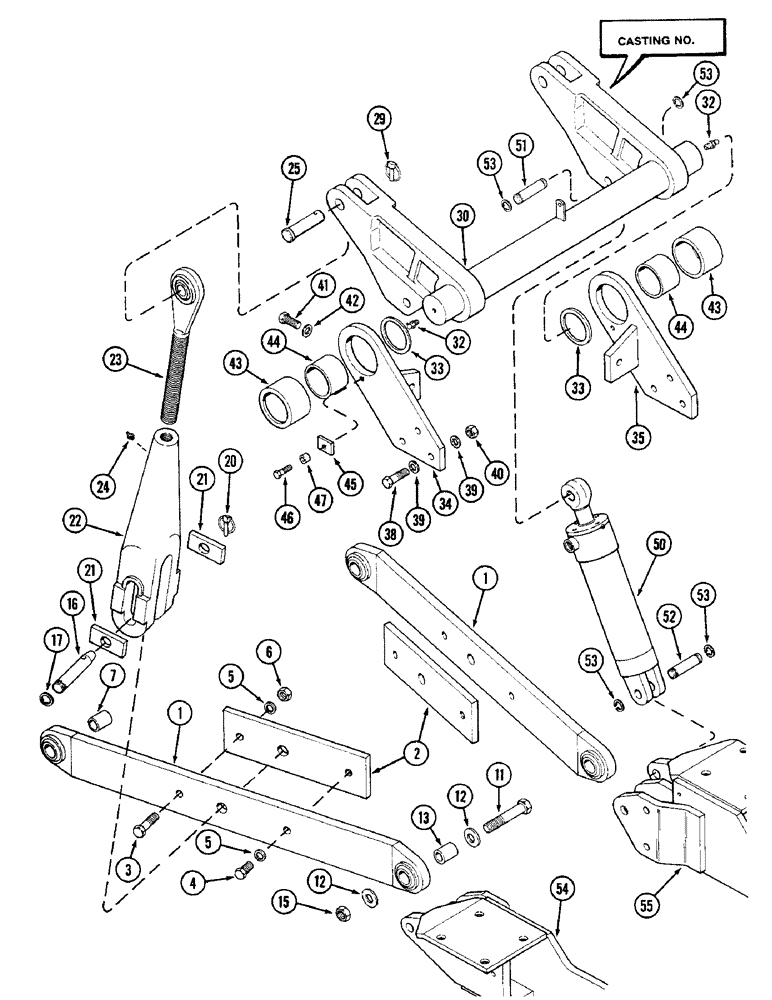

Запчасти Case IH 4690 (9-326) - THREE POINT HITCH, DRAFT ARMS, LIFT LINKS AND ROCKSHAFT PIN 8860450 (09) - CHASSIS/ATTACHMENTS

1

A75932

ARM - draft, RH and LH

2шт.

2

A75473

STRAP

Stiffener

2шт.

3

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

4

113-713

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

2шт.

5

192-27

LOCK WASHER,3/4"

4шт.

6

129-108

NUT,3/4"-10, G5

2шт.

7

L10463

BUSHING

Hitch pin (Category II)

2шт.

11

114-904

BOLT,Hex, 1" - 14 x 5", Gr 8

Arm pivot

2шт.

12

A139817

WASHER

Pivot, 1-1/32" x 2-1/8" x 3/16" (26.19 x 52.39 x 4.76 mm)

4шт.

13

T38561

BUSHING

Pivot, draft arm

2шт.

15

131-188

LOCK NUT,1"-14, GB

2шт.

16

A76286

PIN,31.6mm OD x 193.04mm L

Lift link to draft arm

2шт.

17

17406

RING

Snap

2шт.

20

A64204

PIN

KLIK

2шт.

21

A63515

PLATE

Stop

4шт.

22

A75969

LINK

Clevis

2шт.

23

A141049

ROD

Lift link

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

25

A163277

PIN

Lift link to rockshaft (Replaces A76284 pin and 17406 ring)

2шт.

29

A30338

PIN

KLIK

2шт.

30

A164431

ROCKSHAFT

Hitch (Stamped A164417 on arm)

1шт.

30

A160509

ROCKSHAFT

Hitch (Stamped A160487 on arm)

1шт.

32

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

33

A32804

WASHER

Thrust, 3-9/32" x 4-1/4" x 1/8" (83.3 x 107.9 x 3.17 mm)

1шт.

34

A75396

SUPPORT

RH bearing, rockshaft

1шт.

35

A75397

SUPPORT

LH bearing, rockshaft

1шт.

38

28-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 8

6шт.

39

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

3/4" x 1-3/8" x 9/64" (19.05 x 34.92 x 3.57 mm)

12шт.

40

131-186

LOCK NUT,3/4"-16, GB

6шт.

41

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

2шт.

42

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

3/4" x 1-3/8" x 9/64" (19.05 x 34.92 x 3.57 mm)

2шт.

43

A75399

HOUSING

SPARE PART ASSY - bearing, Incl. Ref. 44

2шт.

44

A75401

BUSHING

BEARING - rockshaft pivot

1шт.

45

A75402

KEY

SPARE PART Bearing retainer

2шт.

46

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

47

A148908

SPACER

SPACER - locking (Replaces 192-23)

2шт.

50

REF

INSTRUCTION

CYLINDER ASSY - hydraulic lift (See Figure 8-232 and 8-324)

2шт.

51

A164416

PIN

Upper, 4-1/2" (114.3 mm) long (Replaces A76282)

2шт.

52

A76281

PIN

Lower, 3-1/2" (88.9 mm) long

2шт.

53

A12667

RING

Snap

8шт.

54

REF

INSTRUCTION

BRACE - drawbar, RH (See Figure 9-336)

1шт.

55

REF

INSTRUCTION

BRACE - drawbar, LH (See Figure 9-336)

1шт.
