Запчасти Case IH 4690 (2-004) - RADIATOR AND HOSES, 504BDTI DIESEL ENGINE (02) - ENGINE

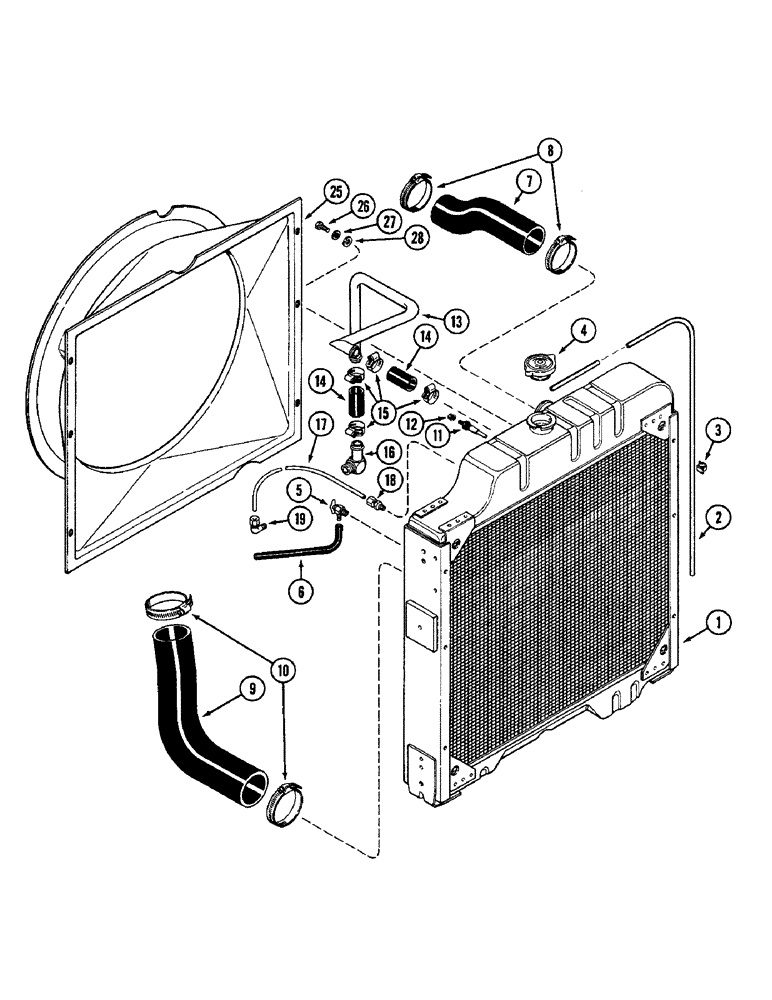

Схема запчастей Case IH 4690 - (2-004) - RADIATOR AND HOSES, 504BDTI DIESEL ENGINE (02) - ENGINE
19
12
28
16
25
27
9
18
7
13
26
10
17
15
2
4
6
1
5
8
14
3
14
11

Артикул

Название

Примечание

Количество

1

A160425

RADIATOR

- engine coolant, Includes: Ref. 2 and 3

1шт.

2

A45690

TUBE

- radiator overflow

1шт.

3

A62079

CLIP

- overflow tube retaining

2шт.

4

A143721

CAP

- pressure, 10 PSI (68.95 kPa)

1шт.

5

A27862

COCK, DRAIN

VALVE - drain (1/4" PT)

1шт.

6

A75533

HOSE,0.25" ID x 13.00", SAE SC-715

RADIATOR HOSE, , Drain Valve 0.25" ID x 13.00", SAE SC-715

1шт.

7

A150566

RADIATOR HOSE,63.5 mm ID x 313.7 mm, SAE 20R4

Upper, Radiator to Head 63.5 mm ID x 313.7 mm, SAE 20R4

1шт.

8

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-1/2" to 3-1/2" (63.5 x 88.9 MM)

2шт.

9

A150568

RADIATOR HOSE,76.20 mm ID x 345.40 mm, SAE 20R4

Lower, Water Pump to Radiator 76.20 mm ID x 345.40 mm, SAE 20R4

1шт.

10

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - hose, 2-13/16" to 3-3/4" (71.44 x 95.25 MM)

2шт.

11

A145513

SENSOR

PROBE - sensing, coolant level

1шт.

12

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 hex Keps

1шт.

13

A160303

TUBE

- balance, radiator to water pump

1шт.

14

A58681

HOSE

- balance tube (Replaces A151004)

2шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4" (30.16 to 44.45 MM)

4шт.

16

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- barb stem 1" hose x 1" PT

1шт.

17

A149565

TUBE

- vent, radiator to intercooler, 15" (381 MM) long (Order A138483, 99" (2 514.6 MM) long and, Serial Range: cut-length)

1шт.

18

222-5104

FITTING,5/16"-24 x 1/8" NPT

CONNECTOR - 5/16" - 24 x 1/8" PT (At radiator)

1шт.

19

222-5115

ELBOW,90 Degree, 5/16"-24 x 1/8" NPTF

- 90 degrees, 5/16" - 24 x 1/8" PT (Intercooler tube)

1шт.

25

A151087

GUARD

SHROUD - fan

1шт.

26

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

Fan shroud Hex, 3/8"-16 x 5/8", G5, Full Thd

6шт.

27

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Fan shroud 3/8"

6шт.

28

195-104

WASHER,3/8"

- 7/16" x 1" x 5/64" (11.1 x 25.4 x 1.9 MM), fan shroud

6шт.

Выбрано товаров: 23
