Запчасти Case IH 4690 (8-310) - DEPTH CONTROL VALVE CIRCUITRY, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS

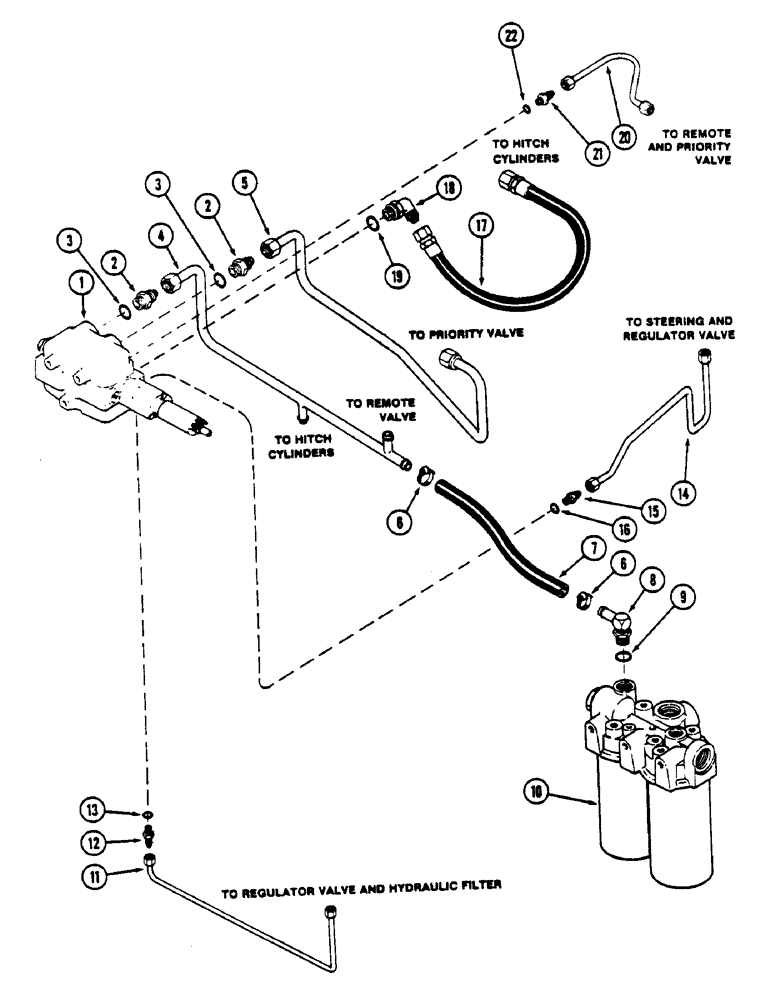

Схема запчастей Case IH 4690 - (8-310) - DEPTH CONTROL VALVE CIRCUITRY, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS
8
3
7
3
9
21
11
1
15
17
2
13
2
22
19
16
4
6
18
14
6
5
20
10
12

Артикул

Название

Примечание

Количество

1

A161686

VALVE

ASSY - hitch depth control (See Figure 8-318)

1шт.

2

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ASSY, Incl. Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

(M29.74 ID x 2.95 Thk)

1шт.

4

A162571

TUBE

ASSY - hitch valve drain

1шт.

5

A162570

TUBE

SPARE PART ASSY - priority valve to hitch valve

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1-3/16" to 1-3/4" (30.2 to 44.5 mm)

1шт.

7

A162206

SPARE PART HOSE - drain, 16" (406.4 mm) long (Order D55911 and cut to length) (Without PTO)

4шт.

7

A162205

SPARE PART HOSE - drain, 9-1/2" (241.3 mm) long (Order D55911 and cut to length) (With PTO)

4шт.

8

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW ASSY, Incl. Ref. 9

1шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

(M29.74 ID x 2.95 Thk)

1шт.

10

REF

INSTRUCTION

FILTER ASSY - hydraulic oil (See Figure 8-252)

1шт.

11

A163223

TUBE

ASSY - hitch valve drain

1шт.

12

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ASSY, Incl. Ref. 13

1шт.

13

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

(M8.92 ID x 1.83 Thk)

1шт.

14

A162611

TUBE

ASSY - hitch valve to steering valve

1шт.

15

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ASSY, Incl. Ref. 16

1шт.

16

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

(M11.89 ID x 1.98 Thk)

1шт.

17

L16415

HOSE,0.75" ID x 33.50", SAE 100R2A

ASSY - pressure, hitch valve

1шт.

18

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, Adjustable, Incl. Ref. 19

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(M23.47 ID x 2.95 Thk)

1шт.

20

A162568

TUBE

ASSY - Hitch valve steering

1шт.

21

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ASSY, Incl. Ref. 22

1шт.

22

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

(M8.92 ID x 1.83 Thk)

1шт.

Выбрано товаров: 23
