Запчасти Case IH 4690 (8-308) - DEPTH CONTROL VALVE CIRCUITRY, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS

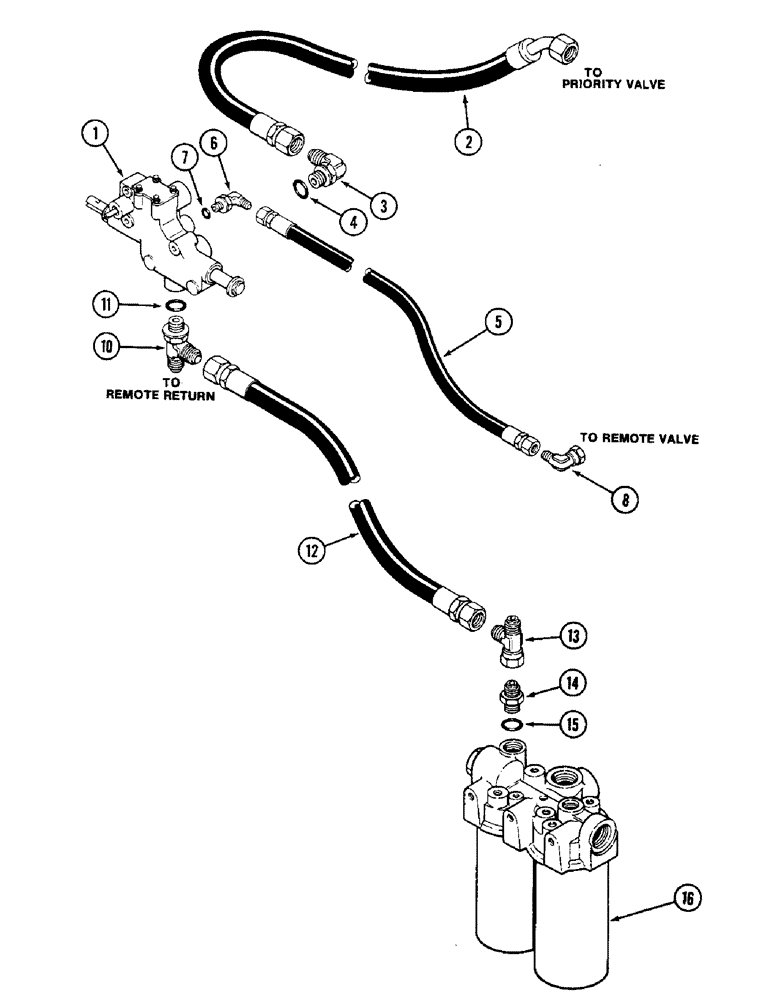

Схема запчастей Case IH 4690 - (8-308) - DEPTH CONTROL VALVE CIRCUITRY, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS
8
3
14
16
12
4
11
5
1
10
15
2
7
13
6

Артикул

Название

Примечание

Количество

1

A143173

VALVE

ASSY - depth control (See Figure 8-316)

1шт.

2

A162013

HOSE

Priority valve to tee to depth control valve (Replaces A148038)

1шт.

3

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, Incl. Ref. 4

1шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(M23.47 ID x 2.95 Thk)

1шт.

5

L19294

HOSE,0.38" ID x 18.75", SAE 100R1

Remote valve tee to depth control valve

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

ASSY, Incl. Ref. 7

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

(M11.89 ID x 1.98 Thk)

1шт.

8

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

(At remote valve)

1шт.

10

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY, Return, Incl. Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(M23.47 ID x 2.95 Thk)

1шт.

12

A160403

HOSE,0.75" ID x 37.00", SAE 100R4

Return, Valve Tee to Filter Tee

1шт.

13

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Connector

1шт.

14

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, Incl. Ref. 15

1шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(M23.47 ID x 2.95 Thk)

1шт.

16

REF

INSTRUCTION

FILTER ASSY - hydraulic oil (See Figure 8-252)

1шт.
