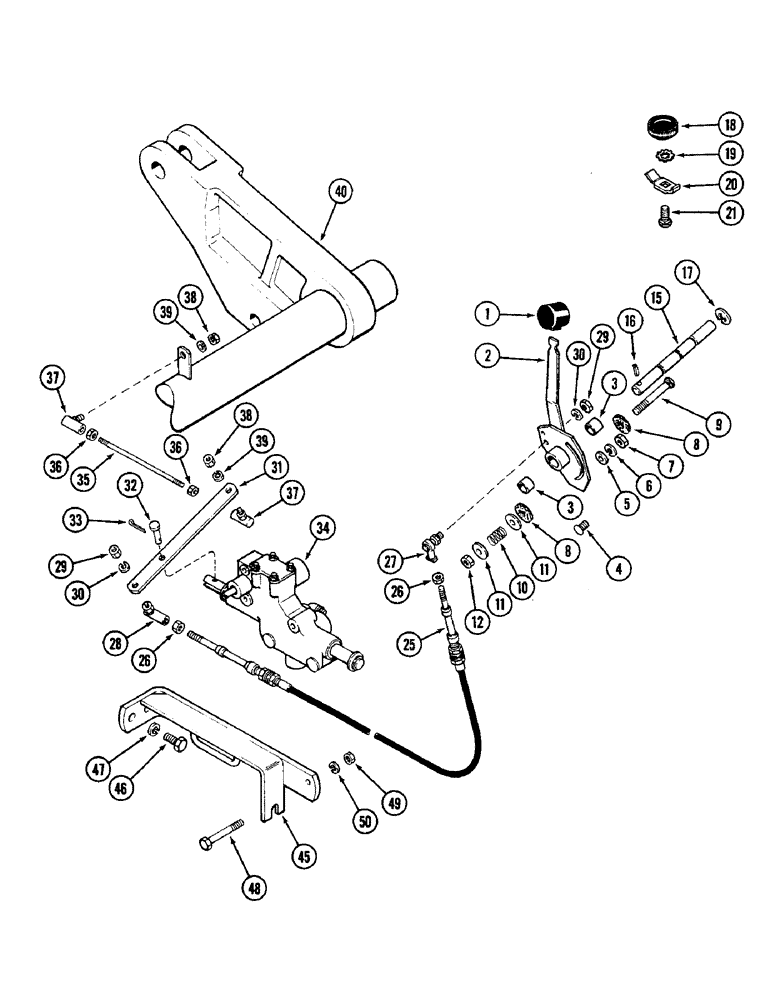

Запчасти Case IH 4690 (8-304) - HITCH DEPTH CONTROLS, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS

1

A137806

KNOB

Hand lever

1шт.

2

A149432

LEVER

ASSY - hand, depth control, Incl. Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

Pivot

2шт.

4

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

2шт.

5

195-525

WASHER,3/8", SAE

(13/32" x 13/16" x 5/64") (10.3 x 20.6 x 1.9 mm)

2шт.

6

192-21

LOCK WASHER,3/8"

2шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

8

A61069

DISC

Friction

2шт.

9

111-339

CARRIAGE BOLT,Short NK, 3/8"-16 x 4 3/4", G2

1шт.

10

A75454

SPRING

Friction disc

1шт.

11

195-104

WASHER,3/8"

7/16" x 1" x 5/64" (11.1 x 25.4 x 1.9 mm)

2шт.

12

131-94

LOCK NUT,3/8"-16, GB

1шт.

15

A161039

SHAFT

Hand lever

1шт.

16

138-96

LOCK PIN,3/16" x 1", Slotted

1шт.

17

A27785

CIRCLIP,#62, .480" Dia, E-Type

1шт.

18

A143181

NUT

Stop clamp

2шт.

19

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - lock, 3/8" external/internal Shakeproof

2шт.

20

A161030

CLAMP

Lever stop

2шт.

21

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

2шт.

25

A152749

CABLE

Control

1шт.

26

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

27

D52241

BALL JOINT

Cable to hand lever

1шт.

28

A10329

BALL JOINT,1/4" - 28 x 1"

Cable to valve control lever

1шт.

29

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

30

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

31

A77008

LEVER

Control valve

1шт.

32

141-65

CLEVIS PIN,5/16" x 1 1/8"

Yoke

1шт.

33

132-26

COTTER PIN

3/32" x 3/4"

1шт.

34

REF

INSTRUCTION

VALVE ASSY - depth control (See Figure 8-316)

1шт.

35

A77009

ROD

Rockshaft to valve control lever

1шт.

36

86637933

JAM NUT,5/16" - 24, Gr 5

2шт.

37

A60604

BALL JOINT

Control rod

2шт.

38

129-122

NUT,5/16"-24, G5

2шт.

39

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.

40

REF

INSTRUCTION

ROCKSHAFT - hitch (See Figure 9-236 and 9-238)

1шт.

45

A161228

SUPPORT

Depth control valve

1шт.

46

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

47

192-23

LOCK WASHER,1/2"

2шт.

48

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

Valve to support

2шт.

49

9635082

NUT,5/16" - 18, Gr 5

2шт.

50

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

2шт.
