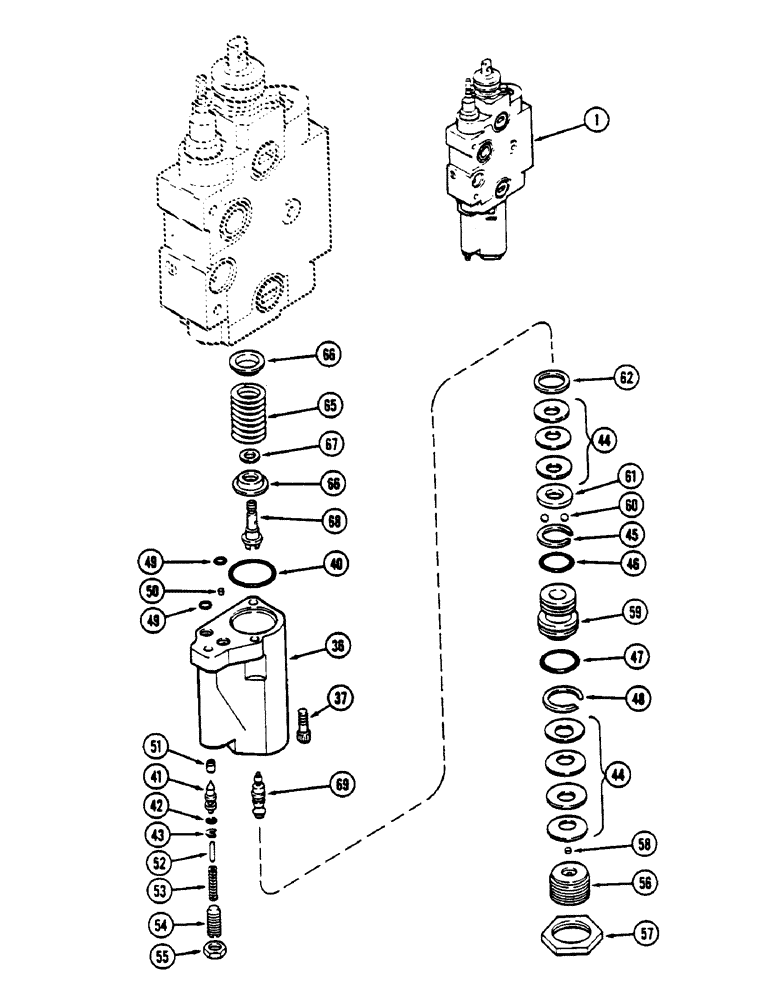

Запчасти Case IH 4690 (8-296) - REMOTE VALVE BODY ASSEMBLY, ADD ON FOR THIRD AND FOURTH CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A162213
HOUSING
BODY ASSEMBLY - remote hydraulic control valve (Continued from Figure 8-294), Includes: Ref. 36 - 69 and 2 - 36 on Figure 8-294
1шт.
36
A47655
HOUSING
ASSEMBLY - detent
1шт.
A47572
KIT
- seal, detent housing, Includes: Ref. 40 - 49
1шт.
40
A59066
O-RING,1.239" ID x 1.379" OD
- 1-1/4 ID x 1/16" width (31.75 ID x 1.52 MM width)
1шт.
41
A47192
SPOOL
POPPET - pilot
1шт.
42
A51274
O-RING,0.145" ID x 0.285" OD
- 5/32 ID x 1/16" width (4.06 ID x 1.52 MM width)
1шт.
43
D54860
RING
- backup
1шт.
44
D78437
WASHER
- dished
7шт.
45
A47100
RING
- backup
1шт.
46
R15366
O-RING,7/8" ID x 1" OD x 1/16"
- 7/8 ID x 1/16" width (2.35 ID x 1.52 MM width)
1шт.
47
R15365
O-RING,0.989" ID x 1.129" OD x 0.07"
- 1 ID x 1/16" width (25.4 ID x 1.52 MM width)
1шт.
48
C14656
RING
- backup
1шт.
49
A138385
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
- 5/16 ID x 1/16" width (7.87 ID x 1.52 MM width)
1шт.
50
NSS
NOT SOLD SEPARAT
PLUG - orifice
1шт.
51
A47201
SEAT
- pilot
1шт.
52
A47104
PIN
- spring guide
1шт.
53
D78468
SPRING
- pilot
1шт.
54
A47173
SCREW,3/8" - 24 x 0.96"
- adjusting, 3/8" x 31/32" NF
1шт.
55
86585245
SPECIAL NUT,JAM, 5/8" - 18
- 3/8" NF hex
1шт.
56
A47211
PLUG
- detent adjusting
1шт.
57
A47175
LOCK NUT
NUT - lock
1шт.
58
A47206
FILTER
- float
1шт.
59
A47207
PISTON
- float
1шт.
60
211-256
BALL
- chrome steel, 7/32" (5.6 MM) diameter
7шт.
61
A47198
RETAINER
- ball
1шт.
62
D78438
WASHER
- detent, spring washer
1шт.
A47573
KIT
- detent centering spring, Includes: Ref. 65 - 69
1шт.
65
A47177
SPRING
- detent, 1" D OD x 2-1/2" free length (25.4 x 63.5 MM)
1шт.
66
A47197
RETAINER
- spring
2шт.
67
A47199
BUSHING
SPACER - detent
1шт.
68
A47193
COUPLING, BREAK AWAY
COUPLER - detent
1шт.
69
A47190
SHAFT
- pivot, detent
1шт.
Выбрано товаров: 33
