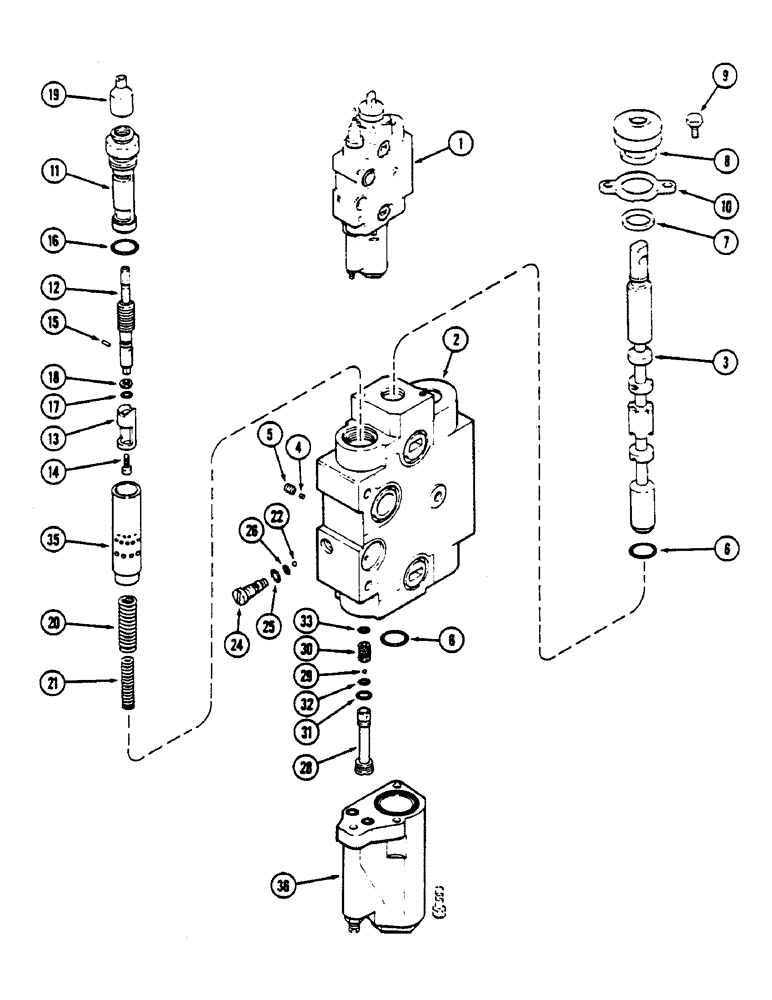

Запчасти Case IH 4690 (8-294) - REMOTE VALVE BODY ASSEMBLY, ADD ON FOR THIRD AND FOURTH CIRCUIT (08) - HYDRAULICS

1

A162213

HOUSING

BODY ASSY - remote hydraulic control valve (Replaces A143391), Incl. Ref. 2-36 and 36-69 on Figure 8-296

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - valve (Order A162213)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A162213)

1шт.

4

A47105

PLUG

Expansion

1шт.

5

A47213

PLUG

Orifice

1шт.

A47570

KIT

Seal, valve body spool, Incl. Ref. 6 - 9

1шт.

6

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

7

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER - float

1шт.

8

A47188

COVER

Dust

1шт.

9

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

Retainer

2шт.

10

A47196

RETAINER

Filter

1шт.

A47754

LOCK VALVE

HOUSING ASSY - flow control (Replaces A47208), Incl. Ref. 11 - 18

1шт.

11

A47194

HOUSING

Flow control

1шт.

12

A47191

SHAFT

Adjusting

1шт.

13

A47755

TUBE

Flow control (Replaces A47200)

1шт.

14

61-46

HEX SOC SCREW,1/4"-20 x 3/8"

1шт.

A47571

KIT

Repair, flow control (Also Incl. ref. 19, 20 and 21), Incl. Ref. 15 - 18

1шт.

15

138-2

LOCK PIN,1/16" x 1/4", Slotted

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

(M19.18 ID x 2.46 Thk)

1шт.

17

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

(M6.35 ID x 1.52 Thk)

1шт.

18

L35305

RING

Backup

1шт.

19

A47189

COVER

Dust

1шт.

20

A47184

SPRING

Outer, 5/8" OD x 2-13/32" free length (16 x 60.96 mm)

1шт.

21

A47186

SPRING

Inner, 27/64" OD x 2-13/64" free length (10.67 x 56.13 mm)

1шт.

22

211-255

BALL,3/16 Dia

Chrome steel, (4.8 mm)

1шт.

A47210

PLUG

ASSY - shuttle seat, Incl. Ref. 24 - 26

1шт.

24

A47204

PLUG

Seat

1шт.

A47575

KIT

Seal, Incl. Ref. 25 and 26

1шт.

25

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

26

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

(4.83 x 7.87 x 1.52 mm)

1шт.

A47209

SPOOL

HOUSING ASSY - primary

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - housing

1шт.

29

NSS

NOT SOLD SEPARAT

BALL - steel, 5/32" (4 mm) diameter

1шт.

30

NSS

NOT SOLD SEPARAT

SEAT - primary

1шт.

A47574

KIT

Seal, primary housing, Incl. Ref. 31 - 33

1шт.

31

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

(M8.92 ID x 1.83 Thk)

1шт.

32

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

(M6.35 ID x 1.52 Thk)

1шт.

33

A47223

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

(M5.59 ID x 1.52 Thk)

1шт.

35

A47187

SPOOL

Flow control

1шт.

36

REF

INSTRUCTION

HOUSING ASSY - detent (See Figure 8-296)

1шт.
