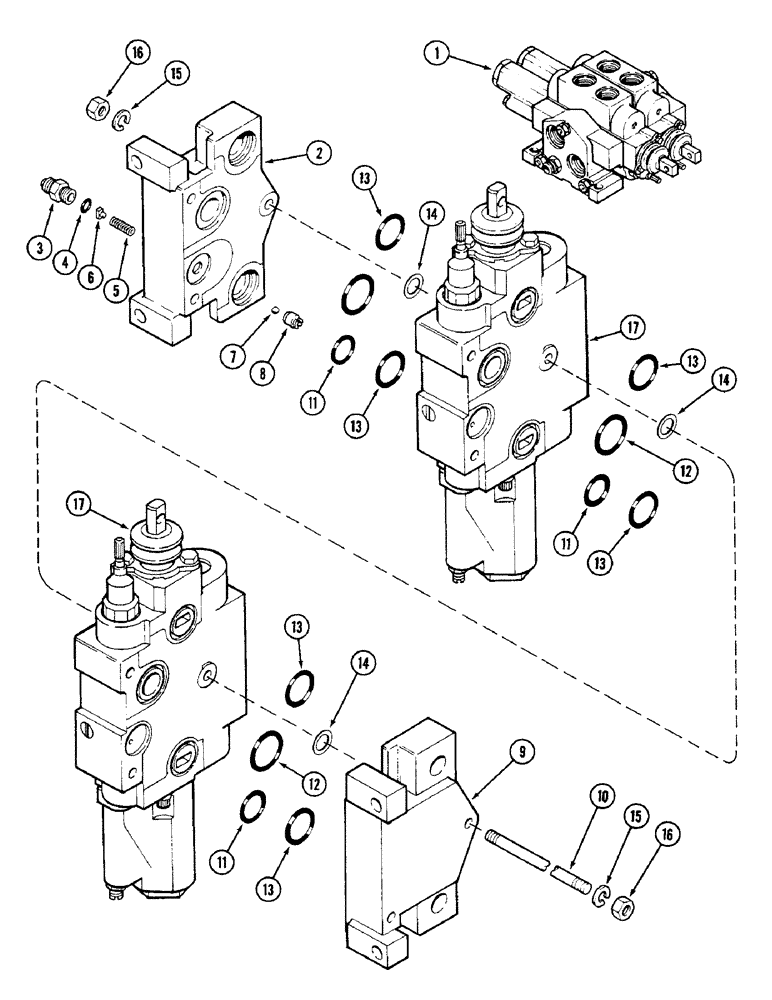

Запчасти Case IH 4690 (8-292) - REMOTE HYDRAULIC VALVE ASSEMBLY, TWO CIRCUIT SYSTEM (08) - HYDRAULICS

1

A162211

VALVE

VALVE ASSEMBLY - remote, 2 spool (Replaces A141622), Includes: Ref. 2 - 17

1шт.

2

A47169

COVER

COVER ASSEMBLY - inlet, Includes: Ref. 3 - 8

1шт.

3

A47185

FITTING

FITTING - inlet

1шт.

4

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

(M11.89 ID x 1.98 Thk)

1шт.

5

A47176

SPRING

SPRING - valve, 15/64" OD (5.84 MM) x 11/16" (17.53 MM) free length

1шт.

6

A47214

RETAINER

RETAINER - spring

1шт.

7

211-257

BALL,1/4" Dia

(6.4 mm)

1шт.

8

A47202

SEAT

SEAT - valve

1шт.

9

A47113

COVER

COVER - front

1шт.

10

A147506

STUD

STUD - 3/8" NC x 8"

3шт.

A47576

KIT

KIT - valve seal, Includes: Ref. 11 - 14

1шт.

11

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

O-RING - 3/4 ID x 1/8" width (19.05 ID x 3.05 MM width)

1шт.

12

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

O-RING - 1 ID x 1/8" width (25.40 ID x 3.05 MM width)

1шт.

13

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

O-RING - 15/16 ID x 3/32" width (23.88 ID x 2.29 MM width)

2шт.

14

D77566

SHIM,.0030" Thk

1/2" ID x 3/4" OD (12.7 ID x 0.008 mm width)

3шт.

15

92-6

LOCK WASHER,3/8"

6шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

17

REF

INSTRUCTION

BODY ASSEMBLY - valve spool (See Figure 8-294)

2шт.
