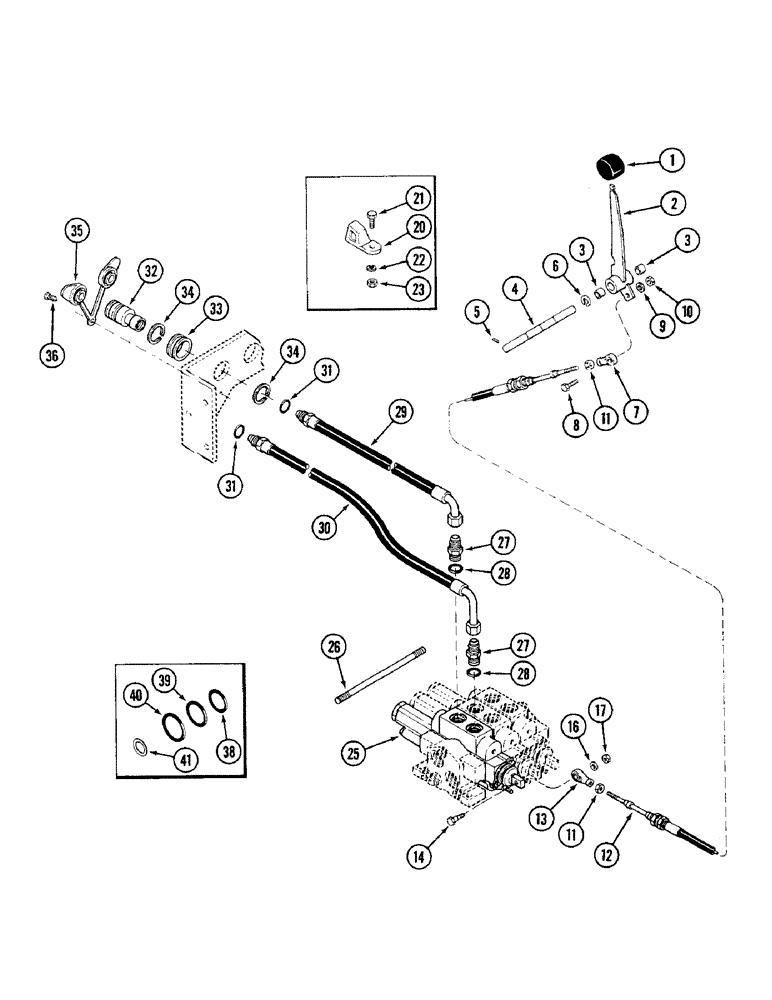

Запчасти Case IH 4690 (8-284) - REMOTE HYDRAULIC ATTACHMENT, THIRD CIRCUIT, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS

A77375

ATTACHMENT - remote hydraulics, third circuit (Machinery item), Includes: Ref. 1 - 41

1шт.

1

A137806

KNOB

- hand lever

1шт.

2

A161024

LEVER

ASSEMBLY - inner rear, Includes: Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever pivot

2шт.

4

A161039

SHAFT

-, Serial Range: lever-console

1шт.

5

178-24

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, 1/4" x 1/4" NC headless socket

1шт.

6

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

2шт.

7

A146456

BALL

JOINT - control, Serial Range: cable-lever

1шт.

8

113-4

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

11

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

12

A152757

CABLE

- control

1шт.

13

A146456

BALL

JOINT - control cable to valve spool

1шт.

14

A148510

BOLT

- shoulder (1/4" NC)

1шт.

16

195-518

WASHER,1/4", SAE

- 9/32" x 5/8" x 5/64" (7.1 x 15.9 x 2 mm)

3шт.

17

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

20

A141542

LEVER

TAB - lever, float position

1шт.

21

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (Replaces A160353 spring washer) 1/4"

1шт.

23

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, (Replaces 131-71) 1/4"-20, GA

1шт.

25

A162213

HOUSING

BODY ASSEMBLY - remote valve (See Figure 8-294) (Replaces A143991)

1шт.

26

A147507

STUD

- additional valve body, 3/8" NC x 9-7/8" (250.82 MM)

3шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR ASSEMBLY - 5/8" tube x 7/8" - 14, Includes: Ref. 28

2шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 MM width)

1шт.

29

A160402

HOSE

ASSEMBLY - valve to coupling, 23-1/2" (596.9 MM) long (Includes ref. 31)

1шт.

30

A160401

HOSE

ASSEMBLY - valve to coupling, 25" (635.0 MM) long

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 ID x 3/32" width (19.18 ID x 2.46 MM width)

1шт.

32

A147741

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - break-away (See Figure 8-300)

2шт.

33

A149221

RETAINER

- coupling to rear plate

2шт.

34

A137976

SNAP RING,#150, 1.408", Ext

RING - snap, retainer

4шт.

35

A145468

PLUG

- dust, coupling

1шт.

36

A162364

FASTENER

- dust plug (Replaces 113-4)

1шт.

38

A47696

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 ID x 1/8" width (19.05 ID x 3.05 MM width)

5шт.

39

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

- 15/16 ID x 3/32" width (23.88 ID x 2.29 MM width)

10шт.

40

A47226

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

- 1 ID x 18" width (25.4 ID x 3.05 MM width)

5шт.

41

D77566

SHIM,.0030" Thk

1/2" ID x 3/4" OD (12.7 ID x 0.008 mm width) .0030" Thk

5шт.
