Запчасти Case IH 4690 (8-280) - REMOTE HYDRAULIC SYSTEM, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS

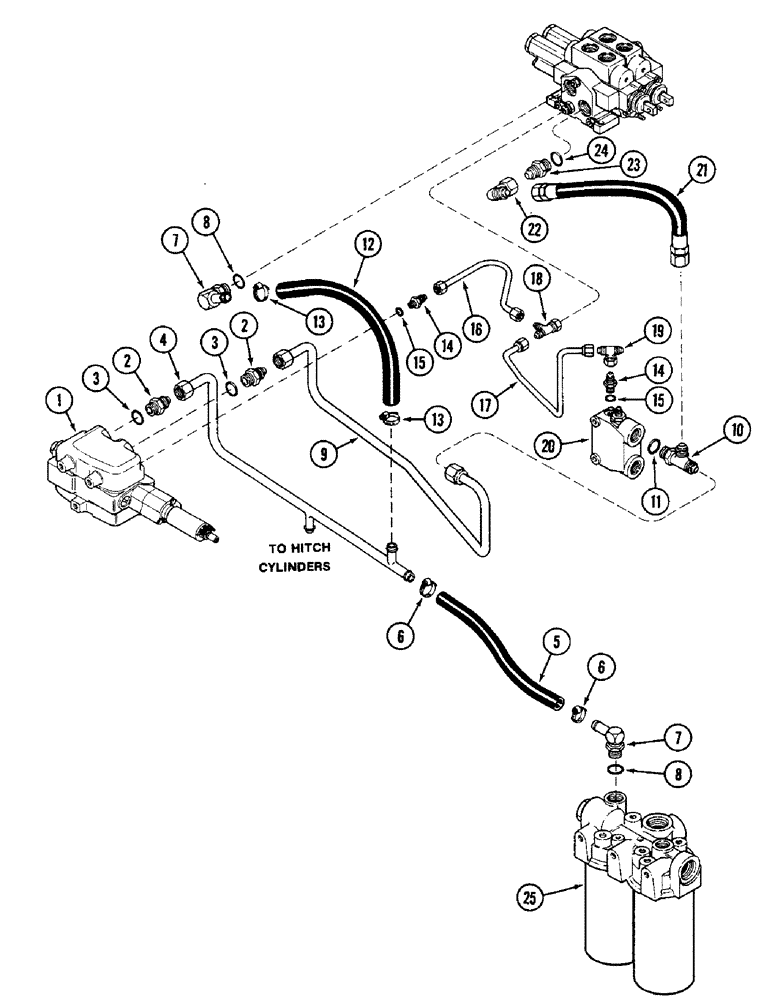

Схема запчастей Case IH 4690 - (8-280) - REMOTE HYDRAULIC SYSTEM, P.I.N. 8860450 AND AFTER (08) - HYDRAULICS
13
8
18
7
3
2
8
7
15
12
1
14
20
14
10
9
23
22
17
13
4
11
6
5
25
6
3
21
24
15
16
2
19

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSY - hitch control (See Figure 8-318)

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ASSY - straight, 3/4" tube x 1-5/16" thread, Incl. Ref. 3

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(M23.47 ID x 2.95 Thk)

1шт.

4

A162571

TUBE

ASSY - hitch valve drain

1шт.

5

A162205

SPARE PART HOSE - tube to filter, 16" (406.4 mm) (Order D55911 and, Serial Range: cut-length)

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1-3/16" (30.2 mm) to 1-3/4" (44.5 mm)

2шт.

7

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW ASSY, Adjustable, Incl. Ref. 8

2шт.

8

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(M23.47 ID x 2.95 Thk)

1шт.

9

A162570

TUBE

SPARE PART ASSY - priority valve to hitch valve

1шт.

10

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY, Includes Ref. 11

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(M23.47 ID x 2.95 Thk)

1шт.

12

A162207

SPARE PART HOSE - remote valve drain, 23" (584.2 mm) (Order D55911 and, Serial Range: cut-length)

1шт.

13

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1-3/16" (30.2 mm) to 1-3/4" (44.5 mm)

2шт.

14

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ASSY, Includes Ref. 15

2шт.

15

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

(M8.92 ID x 1.83 Thk)

1шт.

16

A162568

TUBE

ASSY - hitch valve sensing

1шт.

17

A161899

TUBE

ASSY - priority, Serial Range: valve-hitch

1шт.

18

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Connector Assy

1шт.

19

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

CONNECTOR ASSY

1шт.

20

REF

INSTRUCTION

VALVE ASSY - priority (See Figure 5-146)

1шт.

21

A140575

HOSE

Priority Valve to Remote Vavle

1шт.

22

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

Assy

1шт.

23

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, Incl. Ref. 24

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(M23.47 ID x 2.95 Thk)

1шт.

25

REF

INSTRUCTION

FILTER ASSY - hydraulic oil (See Figure 8-252)

1шт.

Выбрано товаров: 25
