Запчасти Case IH 4690 (8-278) - REMOTE HYDRAULIC SYSTEM, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS

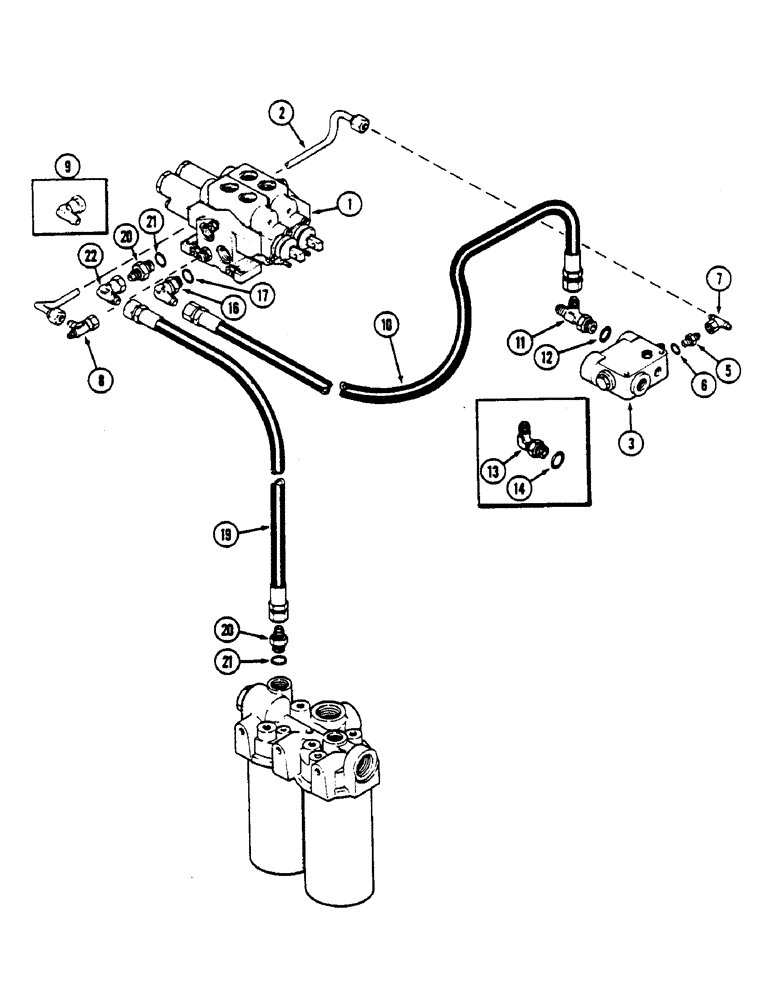

Схема запчастей Case IH 4690 - (8-278) - REMOTE HYDRAULIC SYSTEM, PRIOR TO P.I.N. 8860450 (08) - HYDRAULICS
17
13
12
6
20
16
21
22
1
5
8
3
21
7
20
2
14
19
10
9
11

Артикул

Название

Примечание

Количество

1

A162211

VALVE

ASSY - control, two circuit system (See Figure 8-292) (Replaces A141622)

1шт.

2

A160254

TUBE

Priority valve to remote valve

1шт.

3

REF

INSTRUCTION

VALVE ASSY - priority (See Figure 5-146)

1шт.

5

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ASSY - 3/8" tube x 1/4" tube (At priority valve), Incl. Ref. 6

1шт.

6

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

(M8.92 ID x 1.83 Thk)

1шт.

7

218-836

TEE,37 Degree, 9/16"-18 x 9/16"-18, Fem Sw Br

CONNECTOR, 3/8 tube x 3/8 tube x 9/16"-16 (At priority valve)

1шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

Connector (At remove valve)

1шт.

9

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

(At remote valve without hitch)

1шт.

10

A140575

HOSE

Priority Valve to Remote Vavle

1шт.

11

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY (At priority valve with hitch), Incl. Ref. 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(M23.47 ID x 2.95 Thk)

1шт.

13

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy (At priority valve w/hitch), Incl. Ref. 14

1шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(M23.47 ID x 2.95 Thk)

1шт.

16

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy (At remote valve), Incl. Ref. 17

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(M23.47 ID x 2.95 Thk)

1шт.

19

A160403

HOSE,0.75" ID x 37.00", SAE 100R4

Remote Valve to Filter

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy (At remote valve and filter), Incl. Ref. 21

2шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

(M23.47 ID x 2.95 Thk)

1шт.

22

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

(At remote valve)

1шт.
