(1-009) - PICTORIAL INDEX, REAR STEERING HYDRAULICS

Запчасти Case IH 4690 (1-009) - PICTORIAL INDEX, REAR STEERING HYDRAULICS (00) - PICTORIAL INDEX

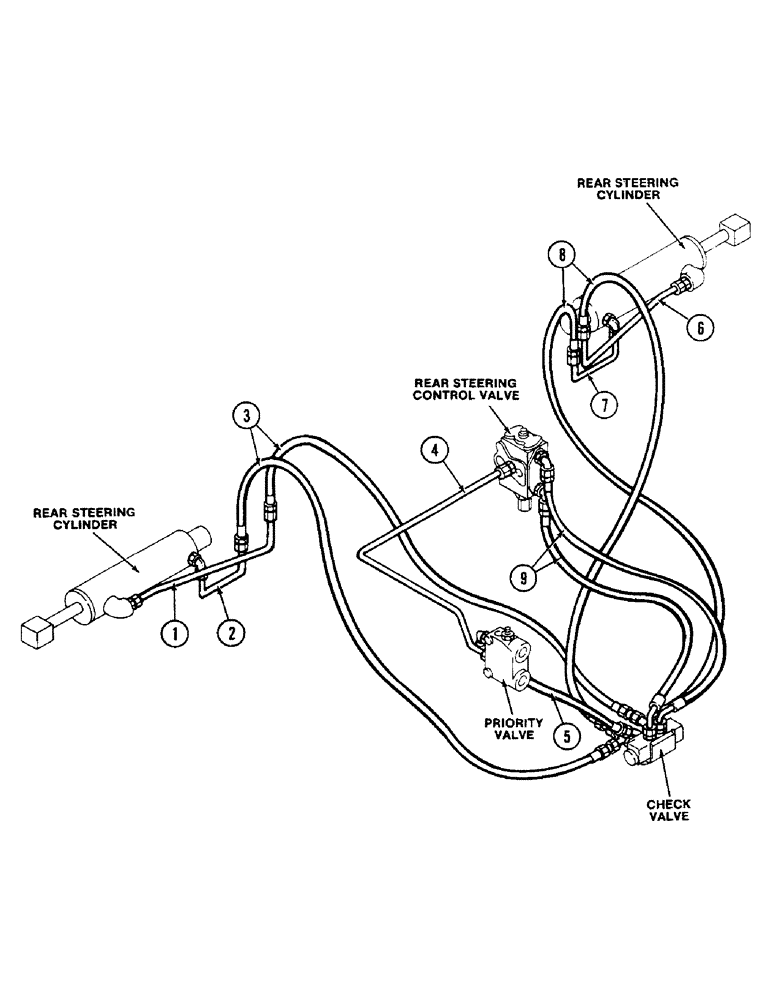

Схема запчастей Case IH 4690 - (1-009) - PICTORIAL INDEX, REAR STEERING HYDRAULICS (00) - PICTORIAL INDEX
4
1
3
7
8
5
8
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Cylinder Hose to Right Hand Steering Tube, Page 5-135

1шт.

2

Valve Hose to Cylinder Tube, Page 5-135

1шт.

3

Check Valve to Cylinder Tube Hose, Page 5-135

1шт.

4

Priority Valve to Steering Control Valve Tube, Page 5-133

1шт.

5

Priority Valve to Check Valve Hose, Page 5-133, 135

1шт.

6

Cylinder Hose to Left Hand Steering Tube, Page 5-135

1шт.

7

Valve Hose to Cylinder Tube, Page 5-135

1шт.

8

Check Valve to Cylinder Tube Hose, Page 5-135

1шт.

9

Control Valve to Check Valve Hoses, Page 5-133, 135

1шт.
